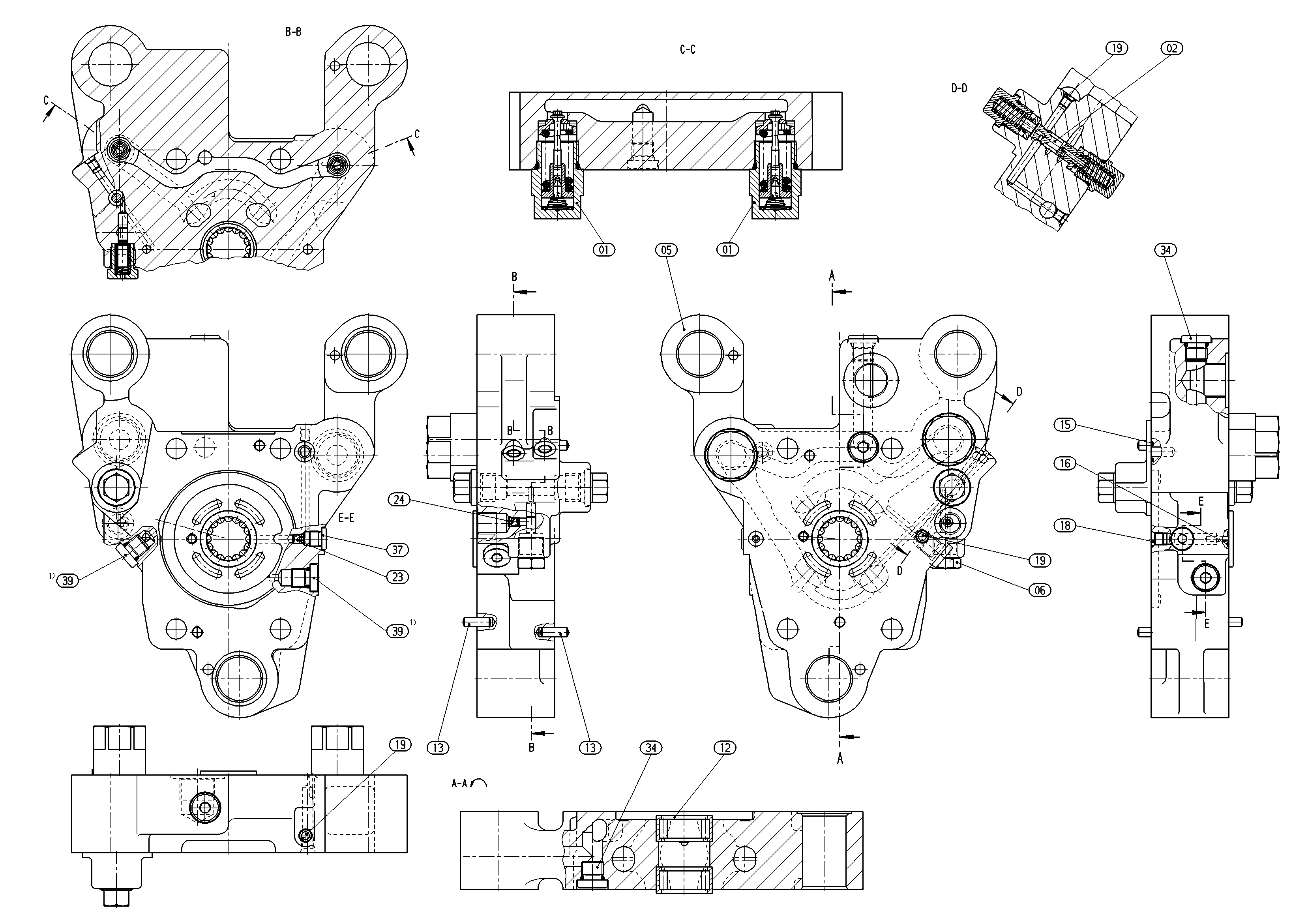

Einheit · CONNECTION PLATE
ANPL, A4VG28+A4FM28-MW1-WR902047925
Anschlussplatte Bosch Rexroth Baureihe A4VG, Typschlüssel ANPL,A4VG28+A4FM28-MW1-W, Materialnummer R902047925.
- Nummer
- R902047925
- Typschlüssel
- ANPL, A4VG28+A4FM28-MW1-W
- Gruppe
- A4VG 28
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902133864 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R902001377 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902047919 | CONNECTION PLATE | 1 | ||
| 6 | R902047671 | SCREW PLUG | 1 | |
| R909153245 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086380 | O-RING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R909157343 | NOZZLED | 1 | ||
| R909831482 | SCREW PLUGD | 2 | ||
| R902601766 | SCREW PLUG | 1 | ||
| R909831743 | SCREW PLUGD | 2 |
