Einheit · CONNECTION PLATE
ANPL,A4VG40+A4FM40-MW3-W23115.R902047942
Anschlussplatte Bosch Rexroth Baureihe A4VG, Typschlüssel ANPL,A4VG40+A4FM40-MW3-W23115., Materialnummer R902047942.
- Nummer
- R902047942
- Typschlüssel
- ANPL,A4VG40+A4FM40-MW3-W23115.
- Gruppe
- A4VG 40
- Ausgabe
- 05/2020

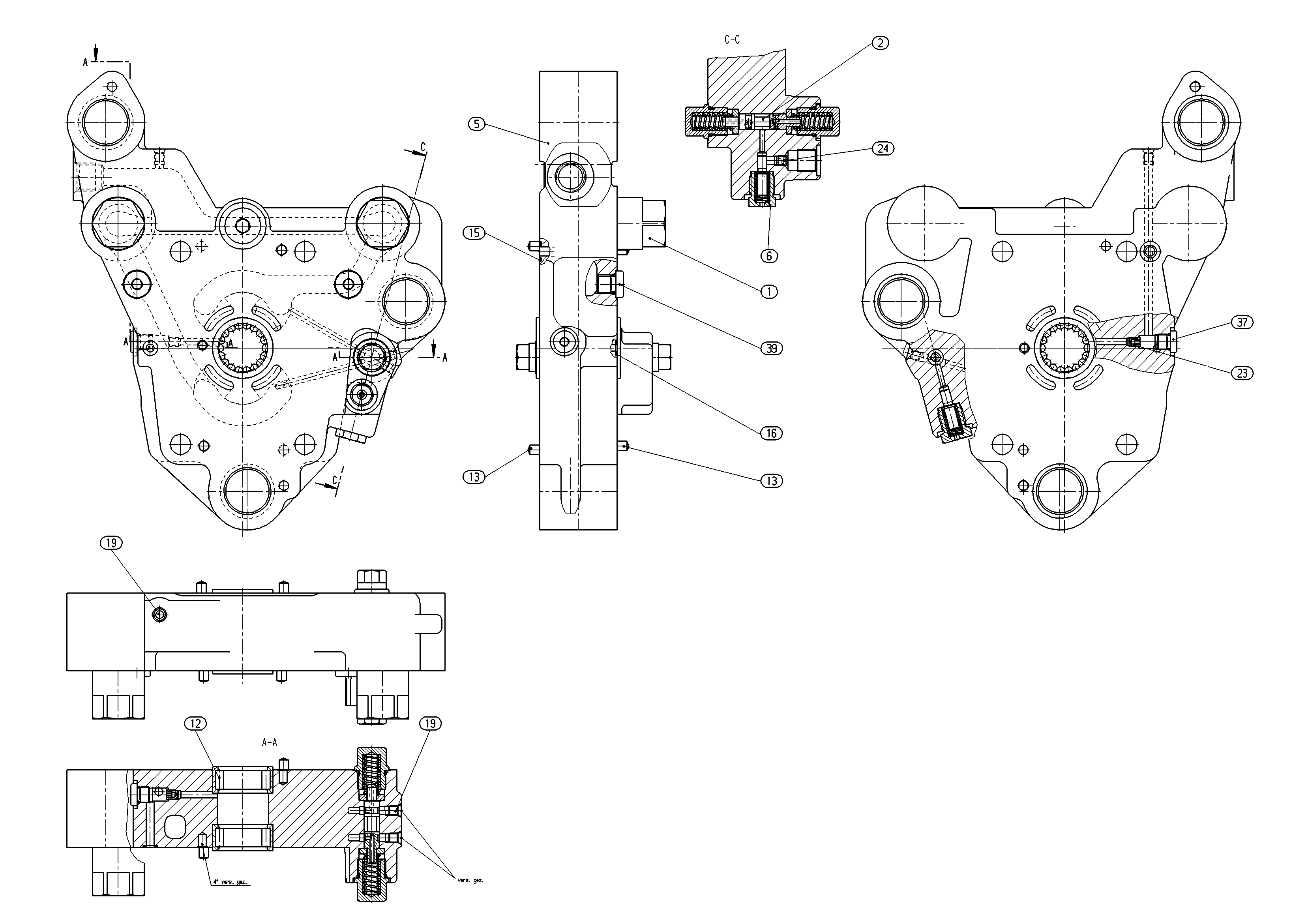

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902001496 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R902001377 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902047928 | CONNECTION PLATE | 1 | ||
| R902047671 | SCREW PLUG | 1 | ||
| R909831337 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R909157343 | NOZZLE | 1 | ||
| R902191109 | SCREW PLUGD | 1 | ||
| 38 | R902601709 | SCREW PLUG | 1 | |
| R909831743 | SCREW PLUG | 2 |
