Einheit · CONTROL PART
CONTROL PART A6VM085EP2/71N-TR902057231
Regler Bosch Rexroth Baureihe A6VM, Typschlüssel CONTROLPARTA6VM085EP2/71N-T, Materialnummer R902057231.
- Nummer
- R902057231
- Typschlüssel
- CONTROL PART A6VM085EP2/71N-T
- Gruppe
- A6VM 85
- Ausgabe
- 02/2020

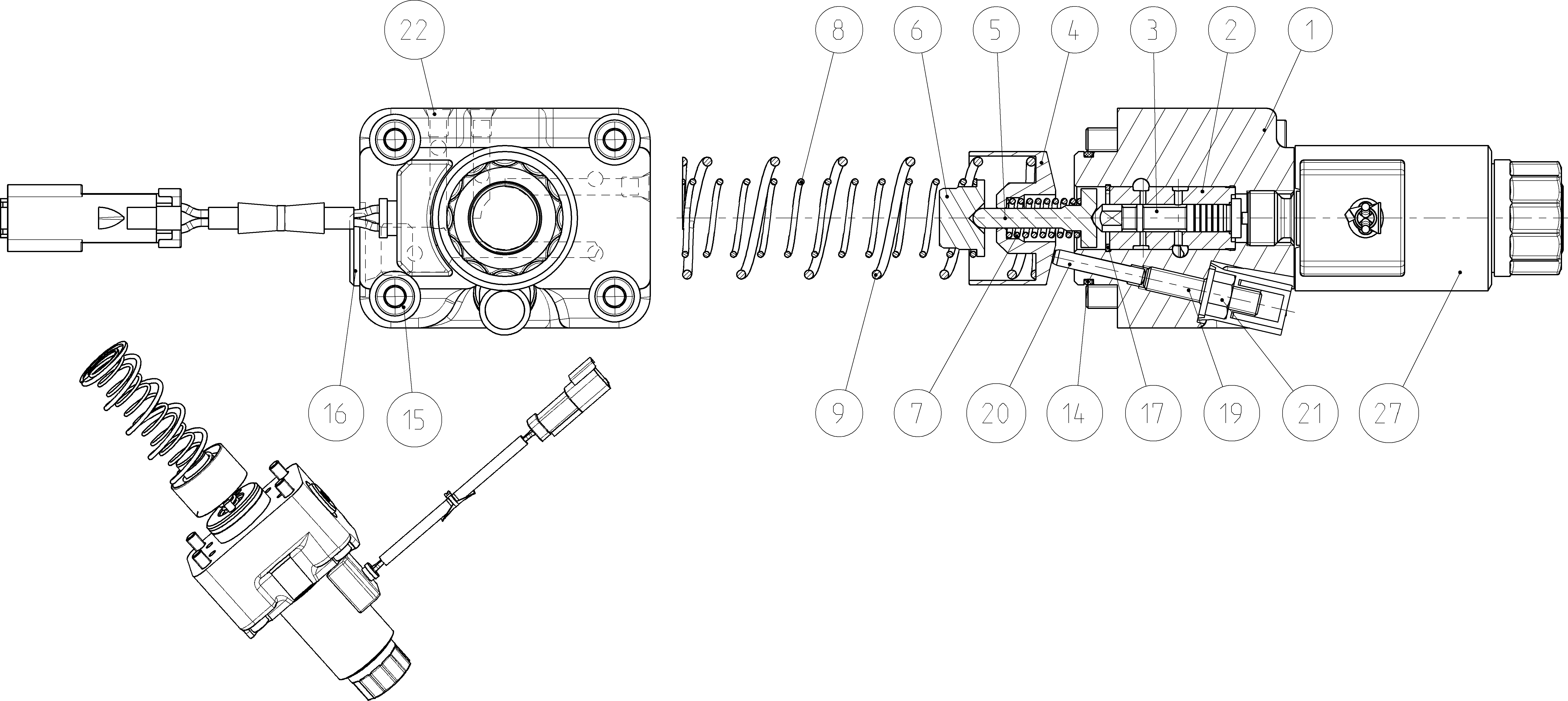

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902156400 | CONTROL HOUSING | 1 | ||
| R902110177 | CONTROL SLEEVE | 1 | ||
| R902110178 | CONTROL PISTON | 1 | ||
| R909651118 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R902272522 | SPRING DISK | 1 | ||
| R909921421 | COMPRESSION SPRING | 1 | ||
| R909436268 | COMPRESSION SPRING | 1 | ||
| R909651116 | COMPRESSION SPRING | 1 | ||
| R909157562 | O-RINGD | 1 | ||
| R910126446 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902603429 | PROPORTIONAL SOLENOID | 1 |
