Einheit · AXIAL-PISTON MOTOR
A10VT45HZ/10W225-NN31B010R902062308
Axialkolbenmotor Bosch Rexroth Baureihe A10VT, Typschlüssel A10VT45HZ/10W225-NN31B010, Materialnummer R902062308.
- Nummer
- R902062308
- Typschlüssel
- A10VT45HZ/10W225-NN31B010
- Gruppe
- A10VT 45
- Ausgabe
- 07/2020

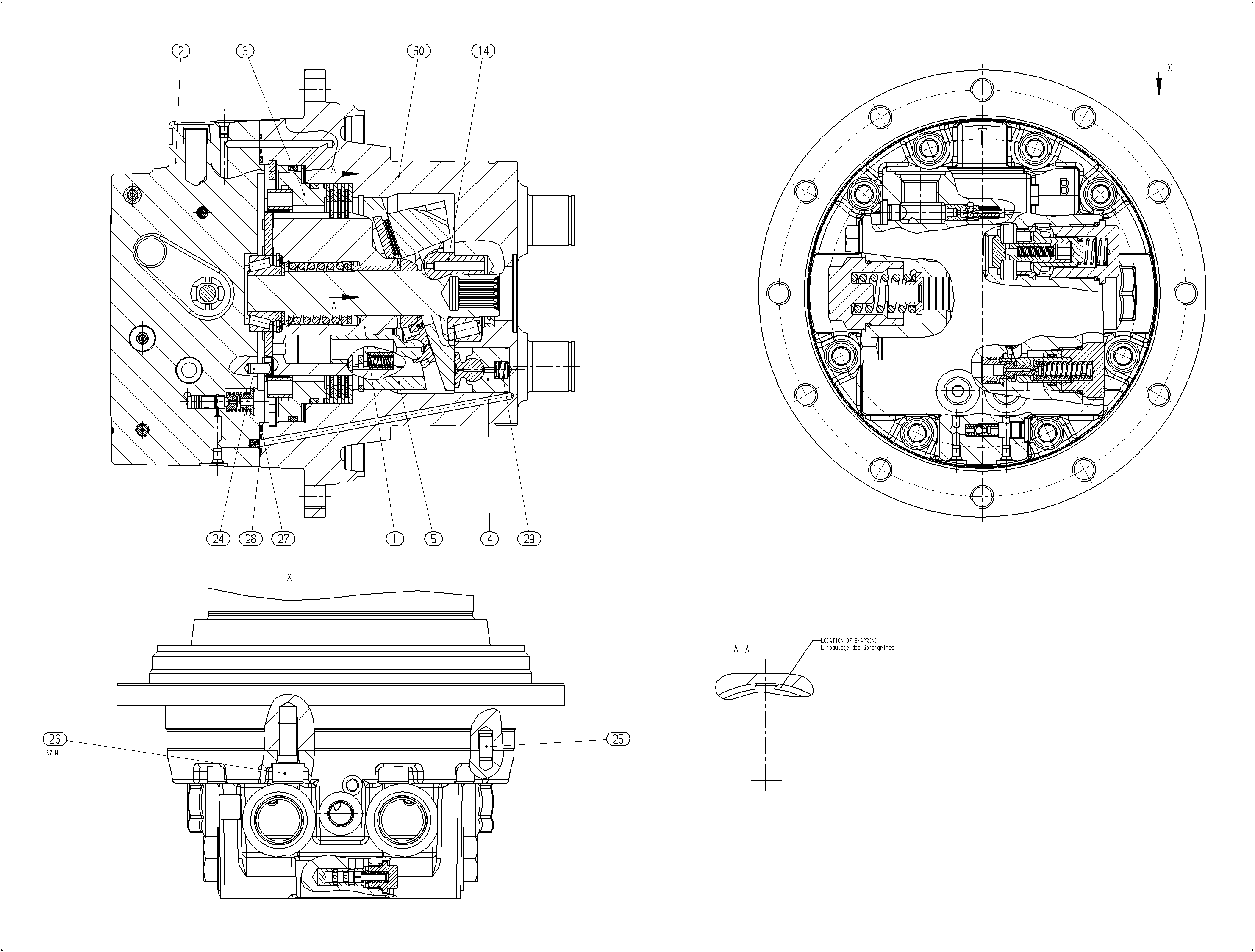

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902097303 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902062309 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902015554 | THRUST RING Stückliste der Baugruppe →L | 1 | ||
| R902062025 | ADJUSTING PISTON Stückliste der Baugruppe →L | 1 | ||
| R902049882 | CRADLE STOP Stückliste der Baugruppe →L | 1 | ||
| R902035713 | SWIVEL BALL | 2 | ||
| R913009677 | STRAIGHT PIND | 1 | ||
| R913009667 | STRAIGHT PIN | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 8 | ||
| R909830453 | O-RING | 1 | ||
| R910942133 | R-RING | 2 | ||
| R902020327 | COMPRESSION SPRING | 1 | ||
| R902601936 | SPINDLE | 1 |
Weitere Ausführungen 21
- R902020070 A10VT45HZ/10W225-NN31B010
- R902049650 A10VT45HZ/10W225-NN31B010
- R902049860 A10VT45HZ/10W225-NN31B010
- R902071124 A10VT45HZ/10W225-NN31B010
- R902071430 A10VT45HZ/10W225-NN31B010
- R902085225 A10VT45HZ/10W225-NN31B010
- R902085300 A10VT45HZ/10W225-NN31B010
- R902085499 A10VT45HZ/10W225-NN31B010
- R902095136 A10VT45HZ/10W225-NN31B010
- R902103101 A10VT45HZ/10W225-NN31B010
- R902103146 A10VT45HZ/10W225-NN31B010
- R902105699 A10VT45HZ/10W225-NN31B010
- R902105701 A10VT45HZ/10W225-NN31B010
- R902108566 A10VT45HZ/10W225-NN31B010
- R902118515 A10VT45HZ/10W225-NN31B010
- R902121450 A10VT45HZ/10W225-NN31B010
- R902124512 A10VT45HZ/10W225-NN31B010
- R902167972 A10VT45HZ/10W225-NN31B010
- R902186611 A10VT45HZ/10W225-NN31B010
- R902186616 A10VT45HZ/10W225-NN31B010
- R902220070 A10VT45HZ/10W225-NN31B010
