Einheit · REGULATOR
REGLER LE2S, RM,ONH,DS 'OHNE DR-STIFT'R902080415
Regler Bosch Rexroth, Typschlüssel REGLERLE2S,RM,ONH,DS'OHNEDR-STIFT', Materialnummer R902080415.
- Nummer
- R902080415
- Typschlüssel
- REGLER LE2S, RM,ONH,DS 'OHNE DR-STIFT'
- Gruppe
- REGULATOR
- Ausgabe
- 07/2019

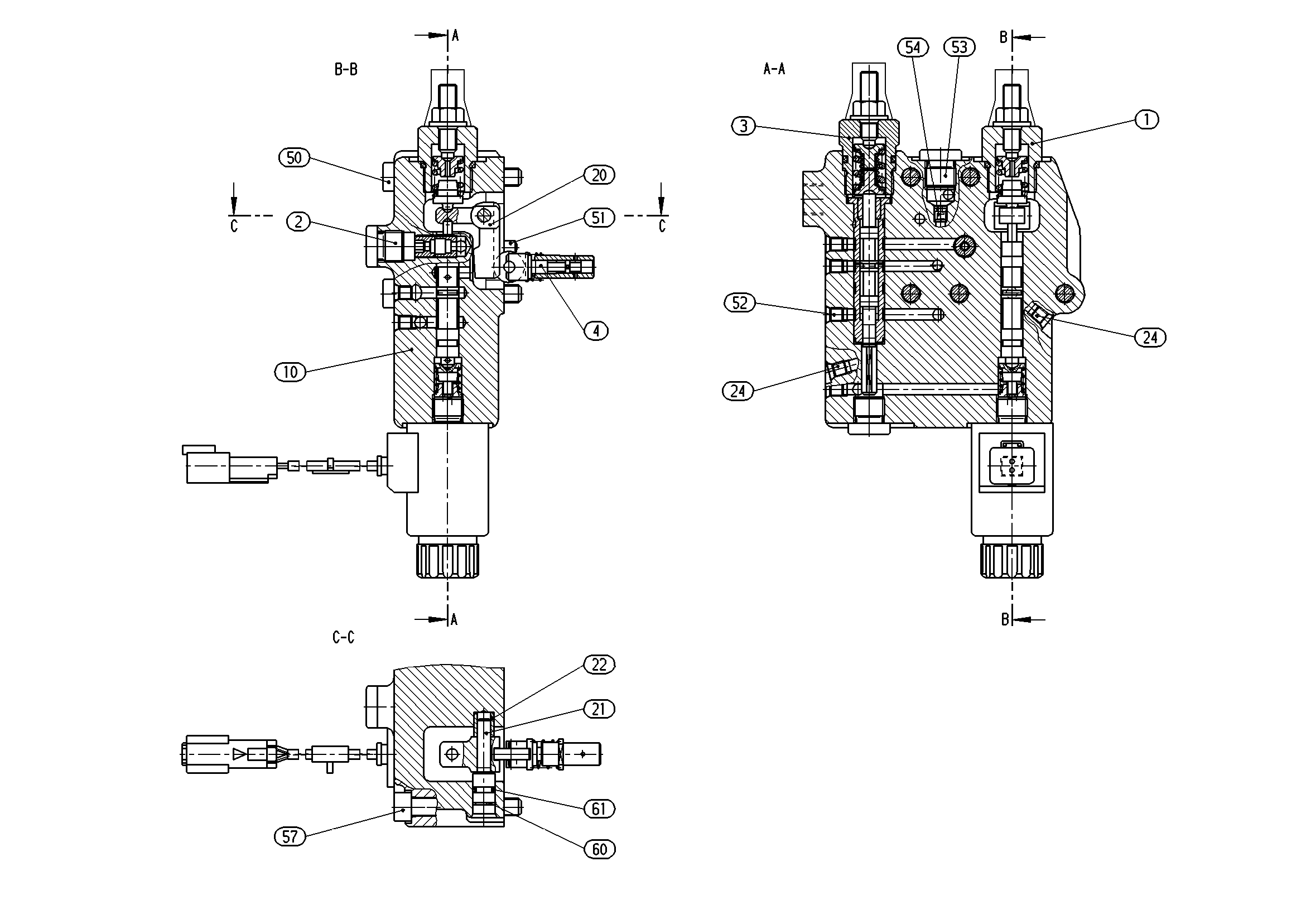

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902046824 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902080413 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902062620 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902002659 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| R902129023 | CONTROL HOUSING | 1 | ||
| R902122300 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909445306 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| — | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909156490 | NOZZLE | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087248 | RETAINING RING | 1 | ||
| — | O-RING | 1 | ||
| 98 | R902002475 | SEAL KIT | 1 |
