Einheit · CONTROL

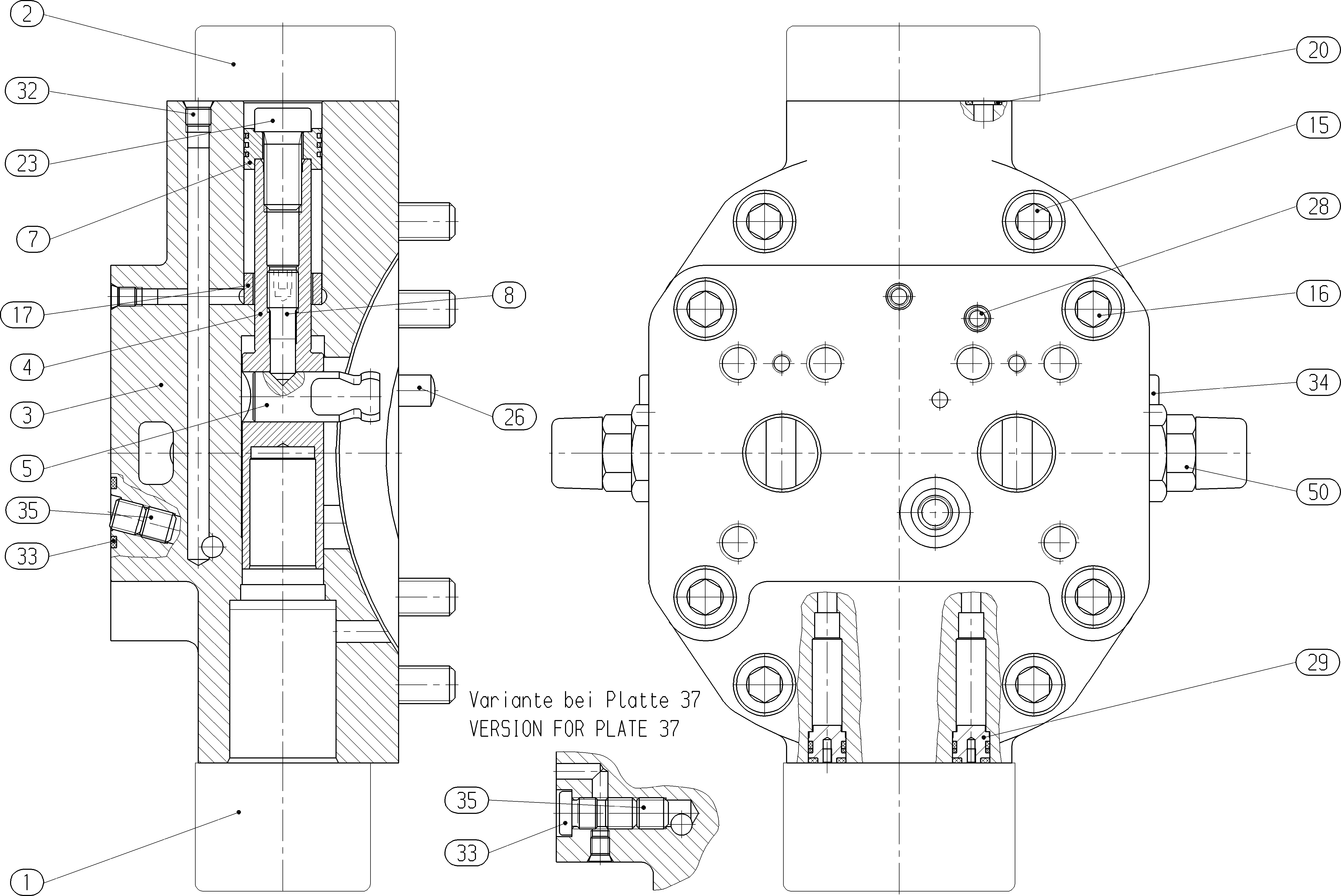

VERSTELLUNG F.A6VM120HAXT/63 44027.6065R902090151
Regler Bosch Rexroth Baureihe A6VM, Typschlüssel VERSTELLUNGF.A6VM120HAXT/6344027.6065, Materialnummer R902090151.
- Nummer
- R902090151
- Typschlüssel
- VERSTELLUNG F.A6VM120HAXT/63 44027.6065
- Gruppe
- A6VM 120
- Ausgabe
- 05/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902004248 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909604033 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902200257 | COVER PLATE | 1 | ||
| R902101481 | POSITIONING PISTON | 1 | ||
| R909422021 | POSITIONING STUD | 1 | ||
| R902102905 | PISTON | 1 | ||
| R902101482 | SETSCREW | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R902090153 | STOP BUSHING | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902088569 | PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909087938 | O-RING | 1 | ||
| R909156651 | SCREW PLUG | 2 | ||
| R902603807 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 |
