Einheit · AXIAL-PISTON PUMP
A4VTG71NV/32R-NXD10F041S-SR902104886
Axialkolbenpumpe Bosch Rexroth Baureihe A4VTG, Typschlüssel A4VTG71NV/32R-NXD10F041S-S, Materialnummer R902104886.
- Nummer
- R902104886
- Typschlüssel
- A4VTG71NV/32R-NXD10F041S-S
- Gruppe
- A4VTG 71
- Ausgabe
- 06/2020

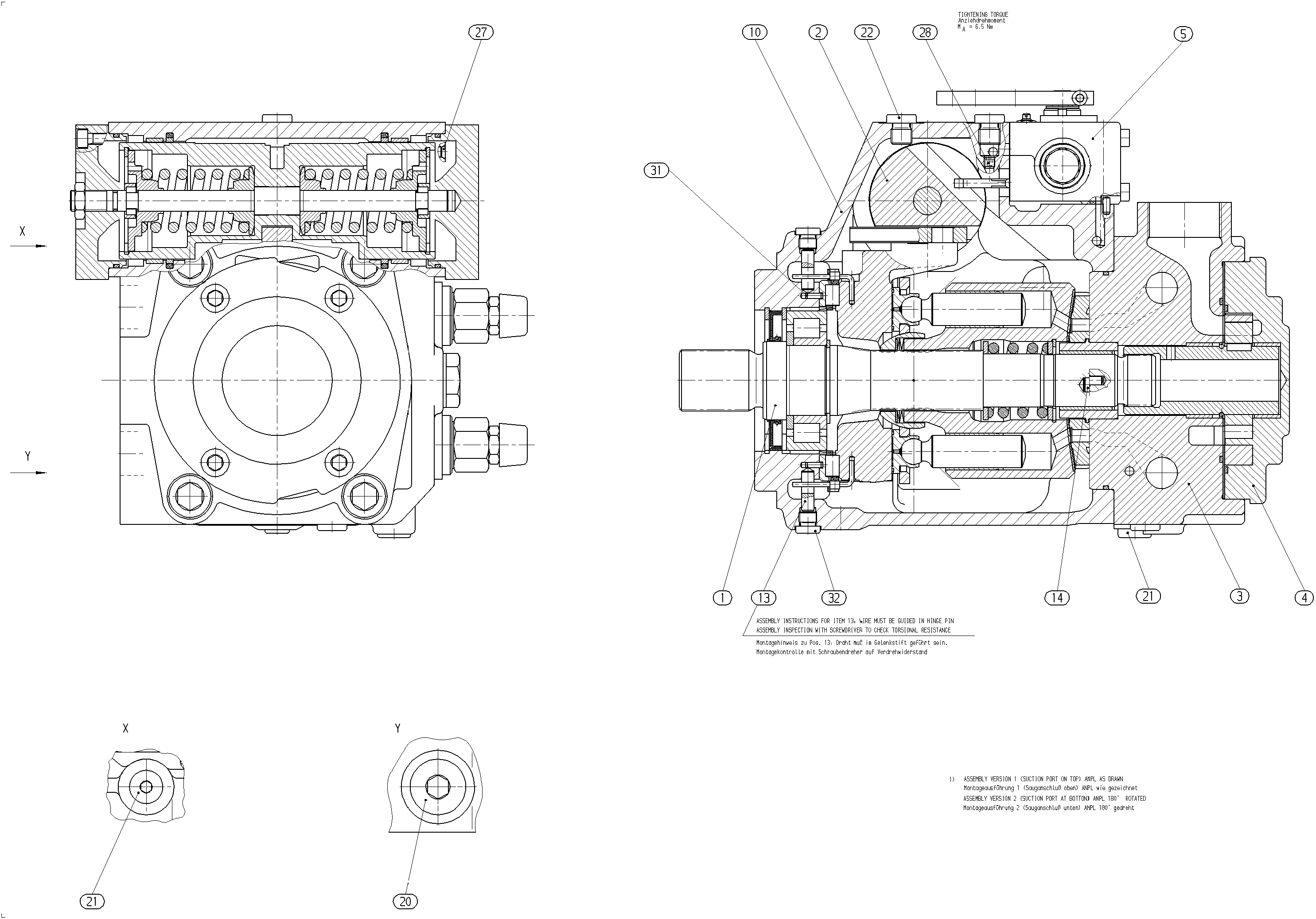

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902199723 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902011160 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909613516 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909606659 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| 8 | R909405730 | SEALING PLATE Stückliste der Baugruppe →L | 1 | |
| 9 | R909434380 | SEALING COVER Stückliste der Baugruppe →L | 1 | |
| R902020322 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| 46 | R909154982 | SETSCREW | 1 |
