Einheit · SWIVEL ANGLE SENSOR

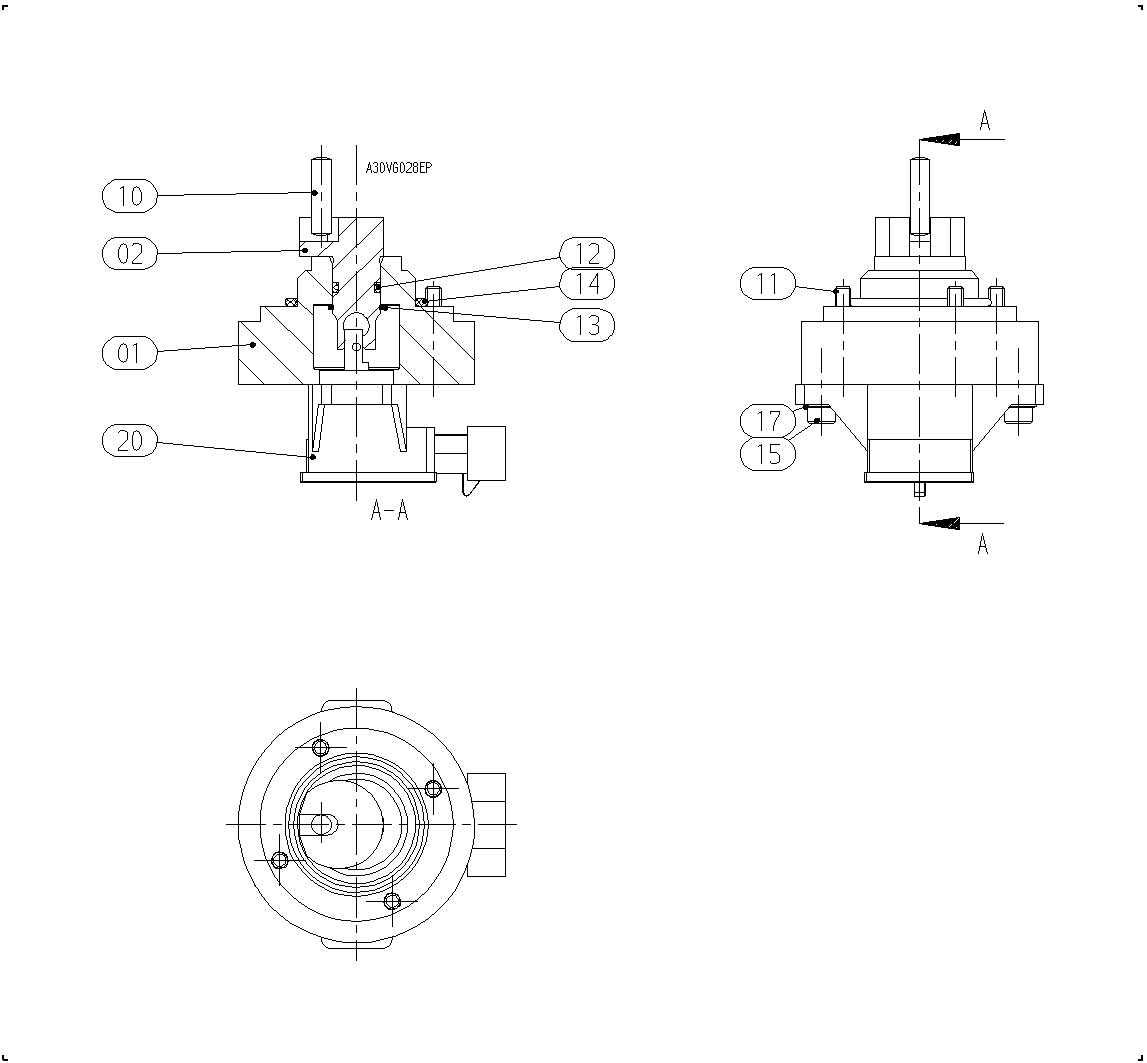

SWIVEL ANGL.SENSOR A4VG40/56 60202.0011R902120597
Axialkolbenpumpe Bosch Rexroth Baureihe A4VG, Typschlüssel SWIVELANGL.SENSORA4VG40/5660202.0011, Materialnummer R902120597.
- Nummer
- R902120597
- Typschlüssel
- SWIVEL ANGL.SENSOR A4VG40/56 60202.0011
- Gruppe
- A4VG 40
- Ausgabe
- 02/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902084597 | SENSOR HOUSING | 1 | ||
| 2 | R902120543 | SENSOR SHAFT | 1 | |
| 10 | R902120637 | STRAIGHT PIN | 1 | |
| 11 | R909083005 | SOCKET HEAD CAP SCREW | 4 | |
| R909083728 | O-RING | 1 | ||
| R909083346 | RETAINING RING | 1 | ||
| R909152146 | O-RING | 1 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010109 | WASHER | 2 | ||
| R902601927 | ROT. ANGLE SENSOR | 1 |
