Einheit · ROTARY GROUP
TWA4VG-110HYDR.TEIL.DS-SO21721.0000R902121020

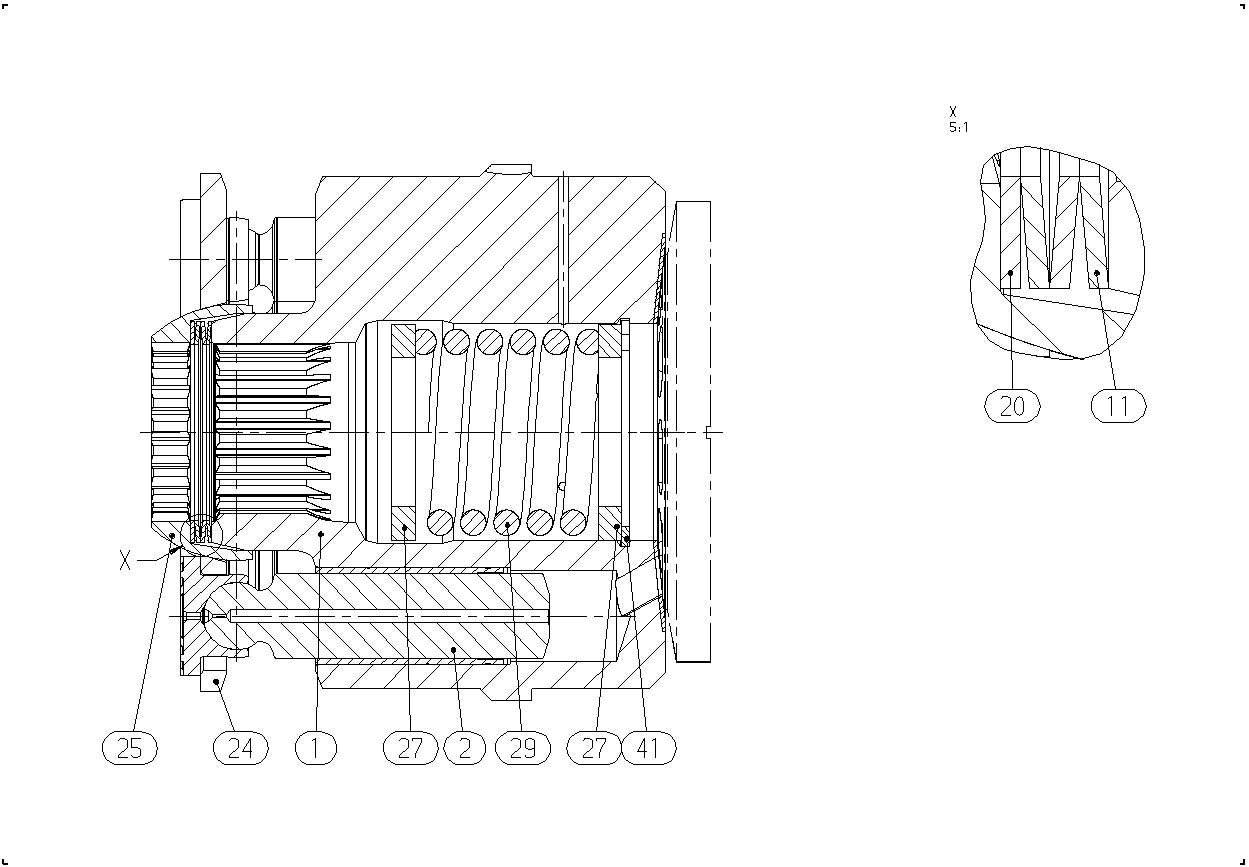

Triebwerk Bosch Rexroth Baureihe A4VG, Typschlüssel TWA4VG-110HYDR.TEIL.DS-SO21721.0000, Materialnummer R902121020.
- Nummer
- R902121020
- Typschlüssel
- TWA4VG-110HYDR.TEIL.DS-SO21721.0000
- Gruppe
- A4VG 110
- Ausgabe
- 05/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902105994 | CYLINDER | 1 | |
| R902118914 | PISTON PAD | 9 | ||
| 11 | R902127870 | CUP-SPRING STACK | 1 | |
| R902094414 | SHIM RING | 1 | ||
| R902094413 | SHIM RING | 1 | ||
| R902094412 | SHIM RING | 1 | ||
| R902094411 | SHIM RING | 1 | ||
| R902205414 | RETAINING PLATE | 1 | ||
| R902240832 | RETAINING BALL | 1 | ||
| R902108842 | WASHER | 2 | ||
| 29 | R902096057 | COMPRESSION SPRING | 1 | |
| 41 | R909083405 | RETAINING RING | 1 |
