Einheit · AXIAL-PISTON PUMP
A4VXG90EP0MT1/32R-NZD10F021SP-SR902169991

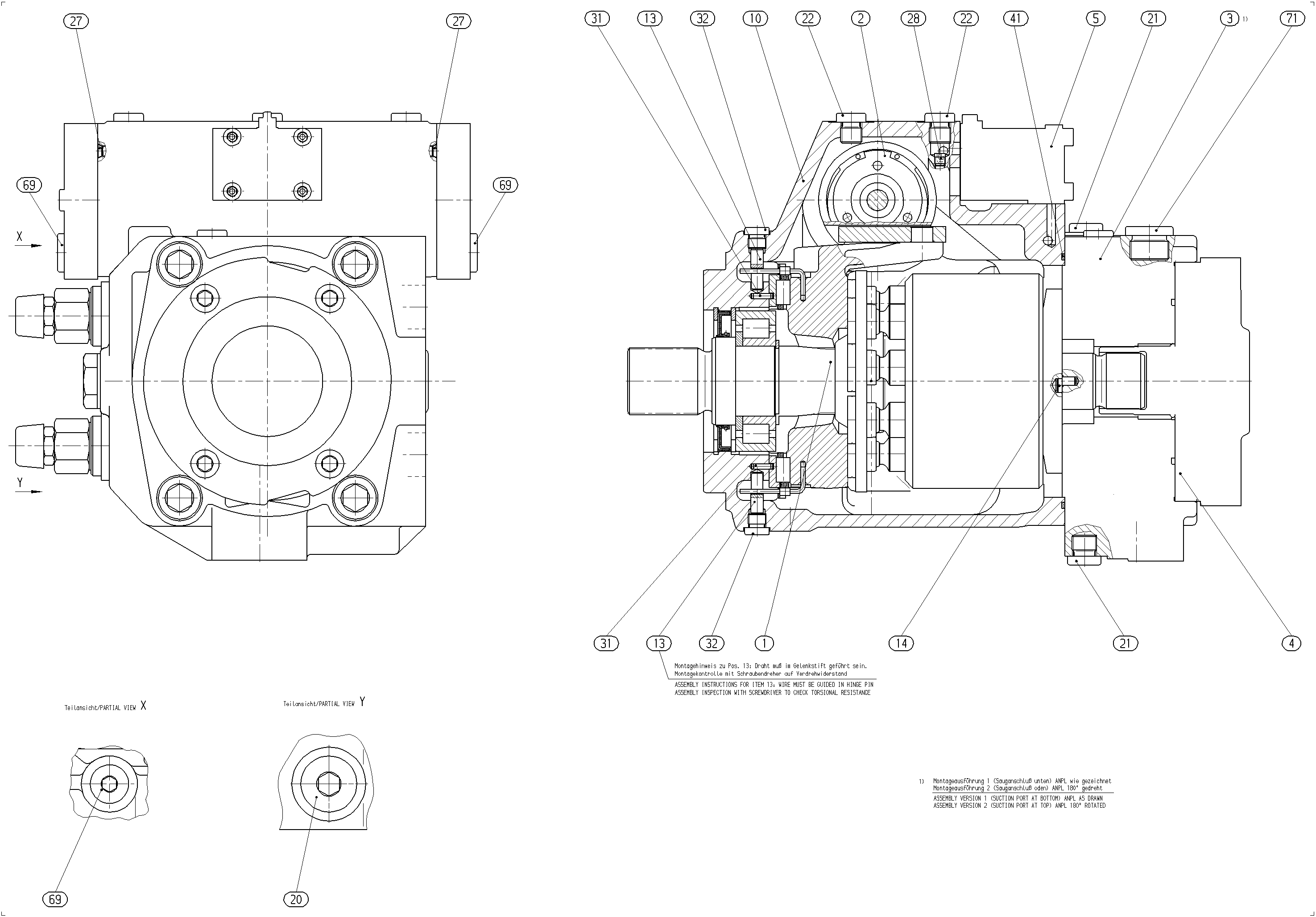

Axialkolbenpumpe Bosch Rexroth Baureihe A4VXG, Typschlüssel A4VXG90EP0MT1/32R-NZD10F021SP-S, Materialnummer R902169991.
- Nummer
- R902169991
- Typschlüssel
- A4VXG90EP0MT1/32R-NZD10F021SP-S
- Gruppe
- A4VXG 90
- Ausgabe
- 07/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902195464 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902039822 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902189794 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902102320 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902168383 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902049587 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R902601236 | PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R909153816 | SCREW PLUG | 3 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| 98 | R902221455 | SEAL KIT | 1 |
