Einheit · ROTARY GROUP
TW A4F O 250 M/30R-VZBK00R902407893
Triebwerk Bosch Rexroth Baureihe A4FO, Typschlüssel TWA4FO250M/30R-VZBK00, Materialnummer R902407893. Axialkolbeneinheit: Schrägscheibenbauart, konstant (A4F). Betriebsart: Pumpe, offener Kreislauf (O). Drehrichtung: Bei Blick auf Triebwelle (R). Dichtungswerkstoff: FKM (Fluorkautschuk) (V). Triebwelle 280: Zahnwelle DIN 5480 (Z). Anbauflansch: ISO 3019, 4-Loch (B).
- Nummer
- R902407893
- Typschlüssel
- TW A4F O 250 M/30R-VZBK00
- Gruppe
- A4FO 250
- Ausgabe
- 07/2020

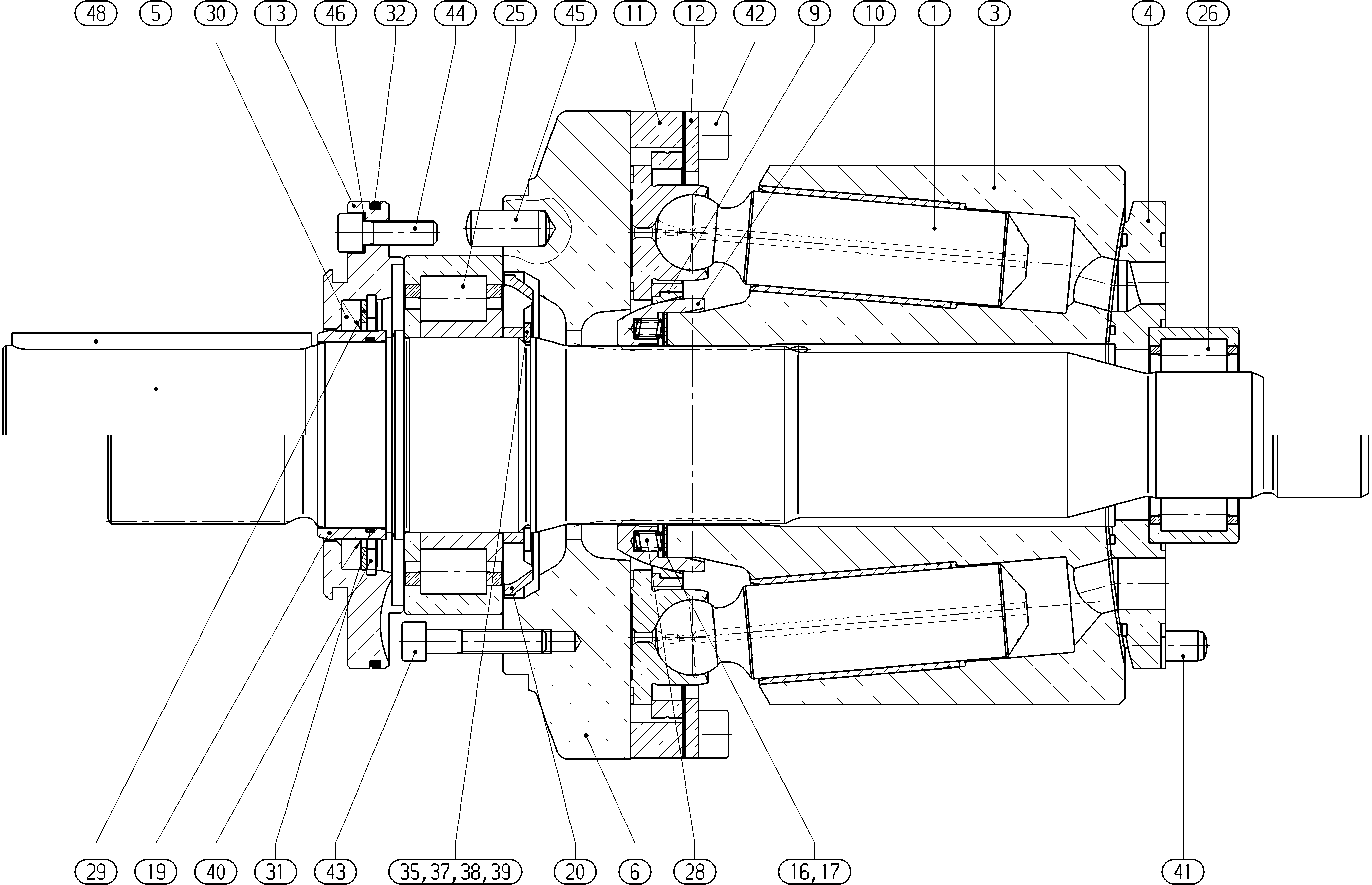

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902436846 | PISTON PAD | 9 | ||
| R910988749 | CYLINDER | 1 | ||
| R910933034 | DISTRIBUTOR PLATE | 1 | ||
| R902409345 | DRIVE SHAFT | 1 | ||
| R910992800 | CAM PLATE | 1 | ||
| R902439646 | RETAINING PLATE | 1 | ||
| R902488920 | RETAINING BALL | 1 | ||
| R910960660 | SPACER SEGMENT | 2 | ||
| R902570184 | SEGMENT | 2 | ||
| R910911835 | SEALING FLANGED | 1 | ||
| R902400656 | SHIM RING | 2 | ||
| R902400657 | SHIM RING | 1 | ||
| 18 | R902445176 | SHIM RING | 1 | |
| R910989659 | SEAL BUSHING | 1 | ||
| R910974565 | FEED WHEEL | 1 | ||
| R910960739 | CYL. ROLLER BEARING | 1 | ||
| R910909424 | CYL. ROLLER BEARING | 1 | ||
| R902400796 | SHIM RING | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910274011 | O-RING | 1 | ||
| R910186988 | O-RINGD | 1 | ||
| R910105856 | RETAINING RING | 1 | ||
| R910979458 | RETAINING RING | 1 | ||
| R910979459 | RETAINING RING | 1 | ||
| R910986334 | RETAINING RING | 1 | ||
| R910189022 | RETAINING RING | 1 | ||
| R913000823 | STRAIGHT PIN | 1 | ||
| R902650867 | SOCKET HEAD CAP SCREW | 4 | ||
| R910193216 | SOCKET HEAD CAP SCREW | 5 | ||
| R910109479 | SOCKET HEAD CAP SCREW | 4 | ||
| R910910938 | STRAIGHT PIN | 2 | ||
| R910642827 | BONDED SEAL RING | 4 |
Parameter aus dem Typschlüssel
| Position | Bedeutung | Code |
|---|---|---|
| Axialkolbeneinheit | Schrägscheibenbauart, konstant | A4F |
| Betriebsart | Pumpe, offener Kreislauf | O |
| Baureihe | Baureihe 3, Index 0 | 30 |
| Drehrichtung | Bei Blick auf Triebwelle | R |
| Dichtungswerkstoff | FKM (Fluorkautschuk) | V |
| Triebwelle 280 | Zahnwelle DIN 5480 | Z |
| Anbauflansch | ISO 3019, 4-Loch | B |
