Einheit · PIPING PLAN
PIPING PLAN A4VSG500HD/20 -S1298R902420648
Axialkolbenpumpe Bosch Rexroth Baureihe A4VSG, Typschlüssel PIPINGPLANA4VSG500HD/20-S1298, Materialnummer R902420648.
- Nummer
- R902420648
- Typschlüssel
- PIPING PLAN A4VSG500HD/20 -S1298
- Gruppe
- A4VSG 500
- Ausgabe
- 02/2020

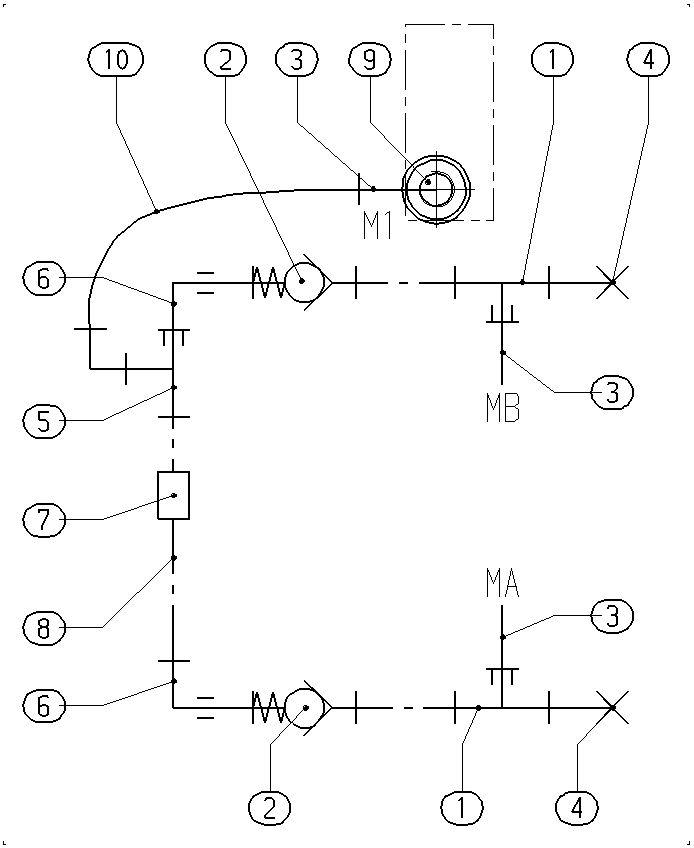

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910936649 | THREADED FASTENER | 2 | ||
| R910936650 | CHECK VALVE | 2 | ||
| R910755788 | THREADED FASTENER | 3 | ||
| R910795224 | PLUG | 2 | ||
| R910778796 | THREADED FASTENER | 1 | ||
| R910761982 | THREADED FASTENER | 3 | ||
| R910633062 | PIPE CLAMP | 1 | ||
| R910997099 | PIPE | 1000 | ||
| R902497408 | FILTER Stückliste der Baugruppe →L | 1 | ||
| R910974921 | HOSE | 1 |
