Einheit · ROTARY GROUP
TWA4FM116M/30W-VZBN00-S1024R902422733
Triebwerk Bosch Rexroth Baureihe A4FM, Typschlüssel TWA4FM116M/30W-VZBN00-S1024, Materialnummer R902422733. Axialkolbeneinheit: Schrägscheibenbauart, konstant (A4F). Betriebsart: Motor, offener und geschlossener Kreislauf (M). Drehrichtung: Bei Blick auf Triebwelle (W). Dichtungswerkstoff: FKM (Fluorkautschuk) (V). Triebwelle: Zahnwelle DIN 5480 (Z). Anbauflansch: ISO 3019-2, 4-Loch (B). Sonderausführung Nr. 1024.
- Nummer
- R902422733
- Typschlüssel
- TWA4FM116M/30W-VZBN00-S1024
- Gruppe
- A4FM 116
- Ausgabe
- 06/2020

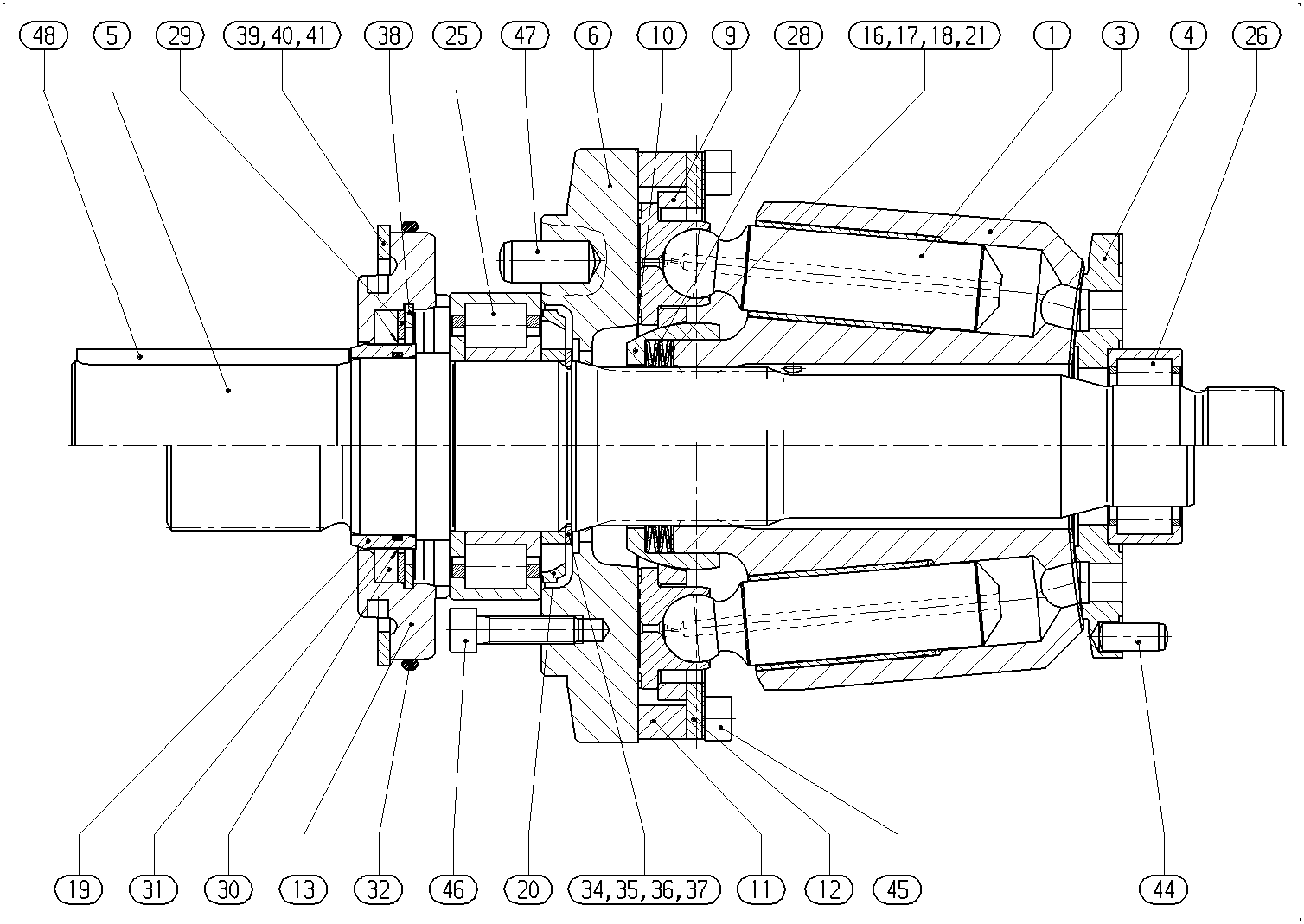

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902400860 | PISTON PAD | 9 | ||
| R902463686 | CYLINDER | 1 | ||
| R902423032 | DISTRIBUTOR PLATE | 1 | ||
| R902409289 | DRIVE SHAFT | 1 | ||
| R910941702 | CAM PLATE | 1 | ||
| R902534515 | RETAINING PLATE | 1 | ||
| R910803064 | RETAINING BALL | 1 | ||
| R910960661 | SPACER SEGMENT | 2 | ||
| R902570183 | SEGMENT | 2 | ||
| R910993486 | SEALING FLANGE | 1 | ||
| R910846473 | SHIM RING | 1 | ||
| R910846465 | SHIM RING | 1 | ||
| R909078321 | SHIM RING | 1 | ||
| R910991526 | SEAL BUSHING | 1 | ||
| R910993496 | FEED WHEEL | 1 | ||
| R910978477 | CYL. ROLLER BEARING | 1 | ||
| R910978478 | CYL. ROLLER BEARING | 1 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R902400750 | SHIM RING | 1 | ||
| R910963544 | SHAFT SEALING RINGD | 1 | ||
| R902400765 | O-RING | 1 | ||
| R902400818 | O-RINGD | 1 | ||
| R910114677 | RETAINING RING | 1 | ||
| R910991731 | RETAINING RING | 1 | ||
| R910991733 | RETAINING RING | 1 | ||
| R910991734 | RETAINING RING | 1 | ||
| R910116025 | RETAINING RING | 1 | ||
| R910991665 | RETAINING RING | 1 | ||
| R910991666 | RETAINING RING | 1 | ||
| R910991667 | RETAINING RING | 1 | ||
| R913000822 | STRAIGHT PIN | 1 | ||
| R902650864 | SOCKET HEAD CAP SCREW | 4 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 5 | ||
| R910910938 | STRAIGHT PIN | 2 |
Parameter aus dem Typschlüssel
| Position | Bedeutung | Code |
|---|---|---|
| Axialkolbeneinheit | Schrägscheibenbauart, konstant | A4F |
| Betriebsart | Motor, offener und geschlossener Kreislauf | M |
| Baureihe | Baureihe 3, Index 0 | 30 |
| Drehrichtung | Bei Blick auf Triebwelle | W |
| Dichtungswerkstoff | FKM (Fluorkautschuk) | V |
| Triebwelle | Zahnwelle DIN 5480 | Z |
| Anbauflansch | ISO 3019-2, 4-Loch | B |
