Einheit · CONTROL VALVE
CONTROL VALVE ZVKDRSVA10-232+-1/21&R902456746
Regelventil Bosch Rexroth, Typschlüssel CONTROLVALVEZVKDRSVA10-232+-1/21&, Materialnummer R902456746.
- Nummer
- R902456746
- Typschlüssel
- CONTROL VALVE ZVKDRSVA10-232+-1/21&
- Gruppe
- CONTROL VALVE
- Ausgabe
- 05/2020

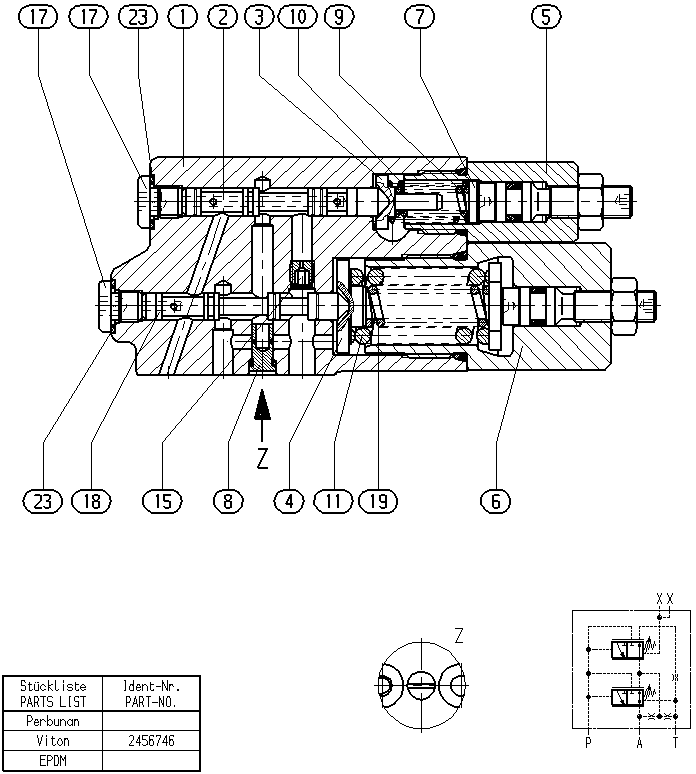

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902434572 | VALVE HOUSING | 1 | ||
| R902420112 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902449500 | SPRING DISK | 1 | ||
| R902451578 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R902451580 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Stückliste der Baugruppe →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910933812 | SCREW PLUG | 2 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RING | 2 |
