Einheit · ROTARY GROUP
TWA4FO180M/30R-VZBK00R902486859
Triebwerk Bosch Rexroth Baureihe A4FO, Typschlüssel TWA4FO180M/30R-VZBK00, Materialnummer R902486859. Axialkolbeneinheit: Schrägscheibenbauart, konstant (A4F). Betriebsart: Pumpe, offener Kreislauf (O). Drehrichtung: Bei Blick auf Triebwelle (R). Dichtungswerkstoff: FKM (Fluorkautschuk) (V). Triebwelle 280: Zahnwelle DIN 5480 (Z). Anbauflansch: ISO 3019, 4-Loch (B).
- Nummer
- R902486859
- Typschlüssel
- TWA4FO180M/30R-VZBK00
- Gruppe
- A4FO 180
- Ausgabe
- 07/2020

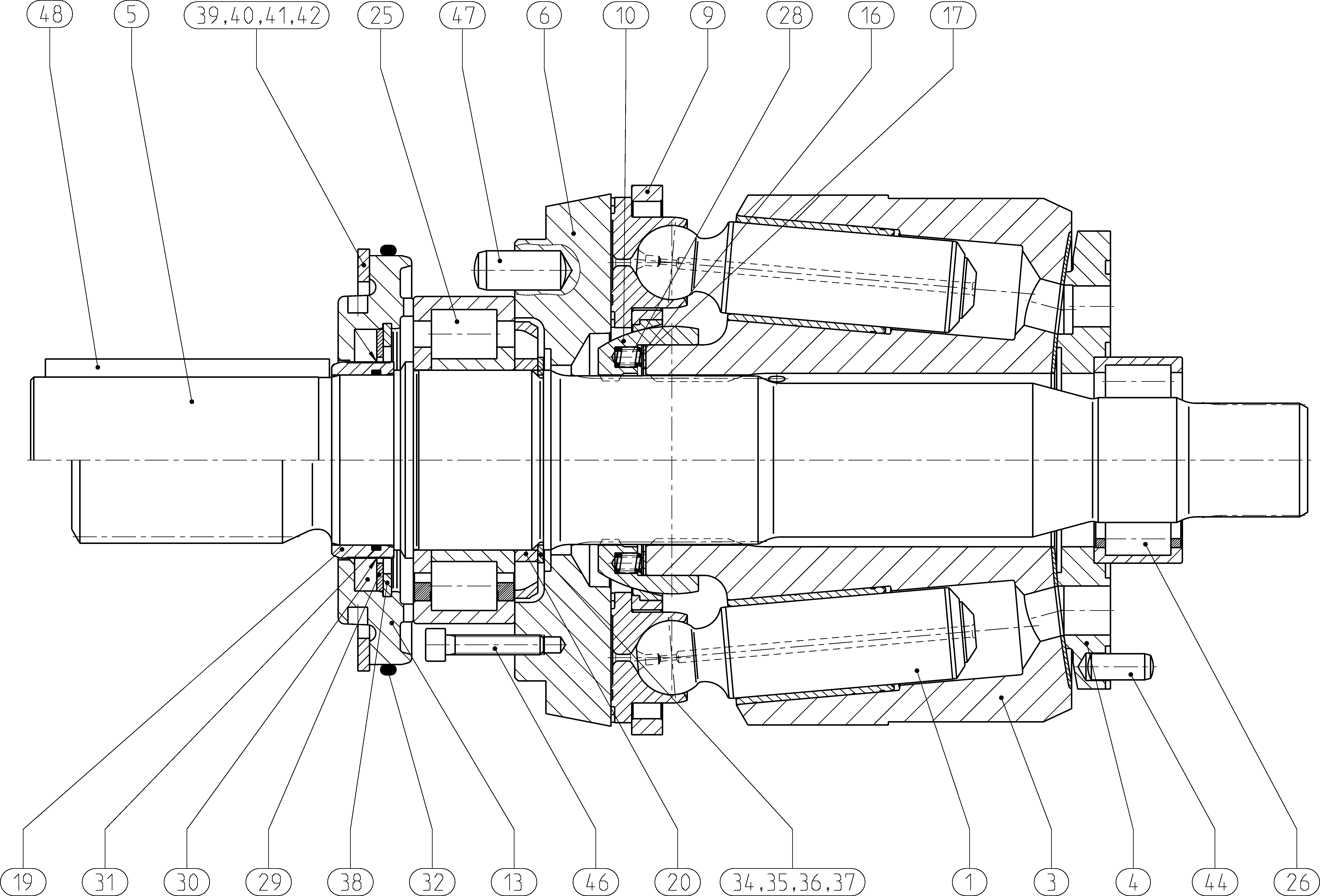

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902438137 | PISTON PAD | 9 | ||
| R910993755 | CYLINDER | 1 | ||
| R910934108 | DISTRIBUTOR PLATE | 1 | ||
| R902486526 | DRIVE SHAFT | 1 | ||
| R902473900 | CAM PLATE | 1 | ||
| R902439616 | RETAINING PLATE | 1 | ||
| R902439437 | RETAINING BALL | 1 | ||
| R910995239 | SEALING FLANGE | 1 | ||
| R902400546 | SHIM RING | 2 | ||
| R902400545 | SHIM RING | 2 | ||
| R910991526 | SEAL BUSHING | 1 | ||
| R910993938 | FEED WHEEL | 1 | ||
| R910960738 | CYL. ROLLER BEARING | 1 | ||
| R910928220 | CYL. ROLLER BEARING | 1 | ||
| R902400547 | COMPRESSION SPRING | 20 | ||
| R902400750 | SHIM RING | 1 | ||
| R910963544 | SHAFT SEALING RINGD | 1 | ||
| R902400765 | O-RING | 1 | ||
| R902400818 | O-RINGD | 1 | ||
| R910105848 | RETAINING RING | 1 | ||
| R910991777 | RETAINING RING | 1 | ||
| R910991778 | RETAINING RING | 1 | ||
| R910991779 | RETAINING RING | 1 | ||
| R910116025 | RETAINING RING | 1 | ||
| R910991665 | RETAINING RING | 1 | ||
| R910991666 | RETAINING RING | 1 | ||
| R910991667 | RETAINING RING | 1 | ||
| R910991668 | RETAINING RING | 1 | ||
| R913000822 | STRAIGHT PIN | 1 | ||
| R910900443 | SOCKET HEAD CAP SCREW | 5 | ||
| R910910938 | STRAIGHT PIN | 2 |
Parameter aus dem Typschlüssel
| Position | Bedeutung | Code |
|---|---|---|
| Axialkolbeneinheit | Schrägscheibenbauart, konstant | A4F |
| Betriebsart | Pumpe, offener Kreislauf | O |
| Baureihe | Baureihe 3, Index 0 | 30 |
| Drehrichtung | Bei Blick auf Triebwelle | R |
| Dichtungswerkstoff | FKM (Fluorkautschuk) | V |
| Triebwelle 280 | Zahnwelle DIN 5480 | Z |
| Anbauflansch | ISO 3019, 4-Loch | B |
