Einheit · ROTARY GROUP
TWA20VO520M/10R-VK99-S2043R902537497
Triebwerk Bosch Rexroth Baureihe A20VO, Typschlüssel TWA20VO520M/10R-VK99-S2043, Materialnummer R902537497. Nenngröße: NG 520. Axialkolbeneinheit: Schrägscheinbenbauart, verstellbar (Back to Back Ausführung) (A20V). Betriebsart: Doppelpumpe, offener Kreislauf (O). Drehrichtungen: Blick auf Triebwelle rechts (R). Triebwelle: Zahnwelle ISO 3019-1 (S).
- Nummer
- R902537497
- Typschlüssel
- TWA20VO520M/10R-VK99-S2043
- Gruppe
- A20VO 520
- Ausgabe
- 06/2020

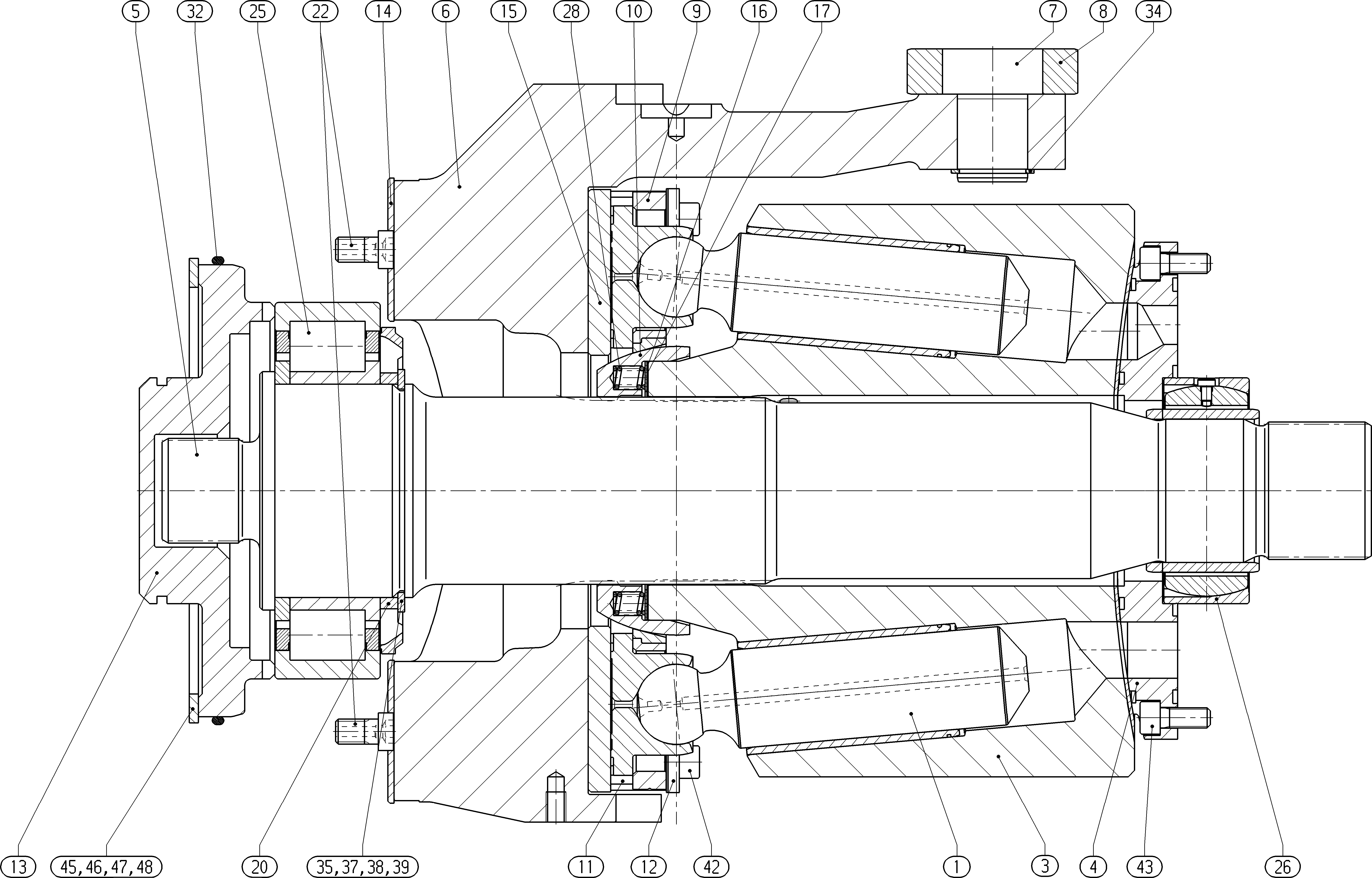

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902514453 | PISTON PAD | 9 | ||
| R902476826 | CYLINDER | 1 | ||
| R902491230 | DISTRIBUTOR PLATE | 1 | ||
| R902536768 | THROUGH DRIVE SHAFT | 1 | ||
| R910910908 | SWASH PLATE | 1 | ||
| R910910927 | DRIVER PIVOT | 1 | ||
| R910910926 | SLIDER | 1 | ||
| R910971077 | RETAINING PLATE | 1 | ||
| R910975577 | RETAINING BALL | 1 | ||
| R910965066 | SPACER SEGMENT | 4 | ||
| R902570176 | SEGMENT | 4 | ||
| R910992070 | SEALING FLANGE | 1 | ||
| R910946530 | BEARING SHELL | 2 | ||
| R902439281 | SLIDING DISC | 1 | ||
| R910973964 | SHIM RING | 2 | ||
| R910973965 | SHIM RING | 2 | ||
| R910978401 | FEED WHEEL | 1 | ||
| R910969259 | SETTING SCREW | 2 | ||
| R910978421 | CYL. ROLLER BEARING | 1 | ||
| R902476715 | SLEEVE BEARING | 1 | ||
| R910964900 | COMPRESSION SPRING | 20 | ||
| R910707503 | O-RING | 1 | ||
| R910187968 | RETAINING RING | 1 | ||
| R910188034 | RETAINING RING | 1 | ||
| R910979461 | RETAINING RING | 1 | ||
| R910979462 | RETAINING RING | 1 | ||
| R910986797 | RETAINING RING | 1 | ||
| R902650870 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109452 | SOCKET HEAD CAP SCREW | 6 | ||
| R910992071 | RETAINING RING | 1 | ||
| R910992072 | RETAINING RING | 1 | ||
| R910992073 | RETAINING RING | 1 | ||
| R910992074 | RETAINING RING | 1 |
Parameter aus dem Typschlüssel
| Position | Bedeutung | Code |
|---|---|---|
| Axialkolbeneinheit | Schrägscheinbenbauart, verstellbar (Back to Back Ausführung) | A20V |
| Betriebsart | Doppelpumpe, offener Kreislauf | O |
| Nenngröße (NG) | 520 | 520 |
| Baureihe | Baureihe 1, Index 0 | 10 |
| Drehrichtungen | Blick auf Triebwelle rechts | R |
| Triebwelle | Zahnwelle ISO 3019-1 | S |
