Einheit · AXIAL-PISTON PUMP
R LA10C O 45 DFR1/52R-VWC12H502D ER902537839
Axialkolbenpumpe Bosch Rexroth Baureihe A10CO, Typschlüssel RLA10CO45DFR1/52R-VWC12H502DE, Materialnummer R902537839.
- Nummer
- R902537839
- Typschlüssel
- R LA10C O 45 DFR1/52R-VWC12H502D E
- Gruppe
- AXIAL-PISTON PUMP
- Ausgabe
- 02/2020

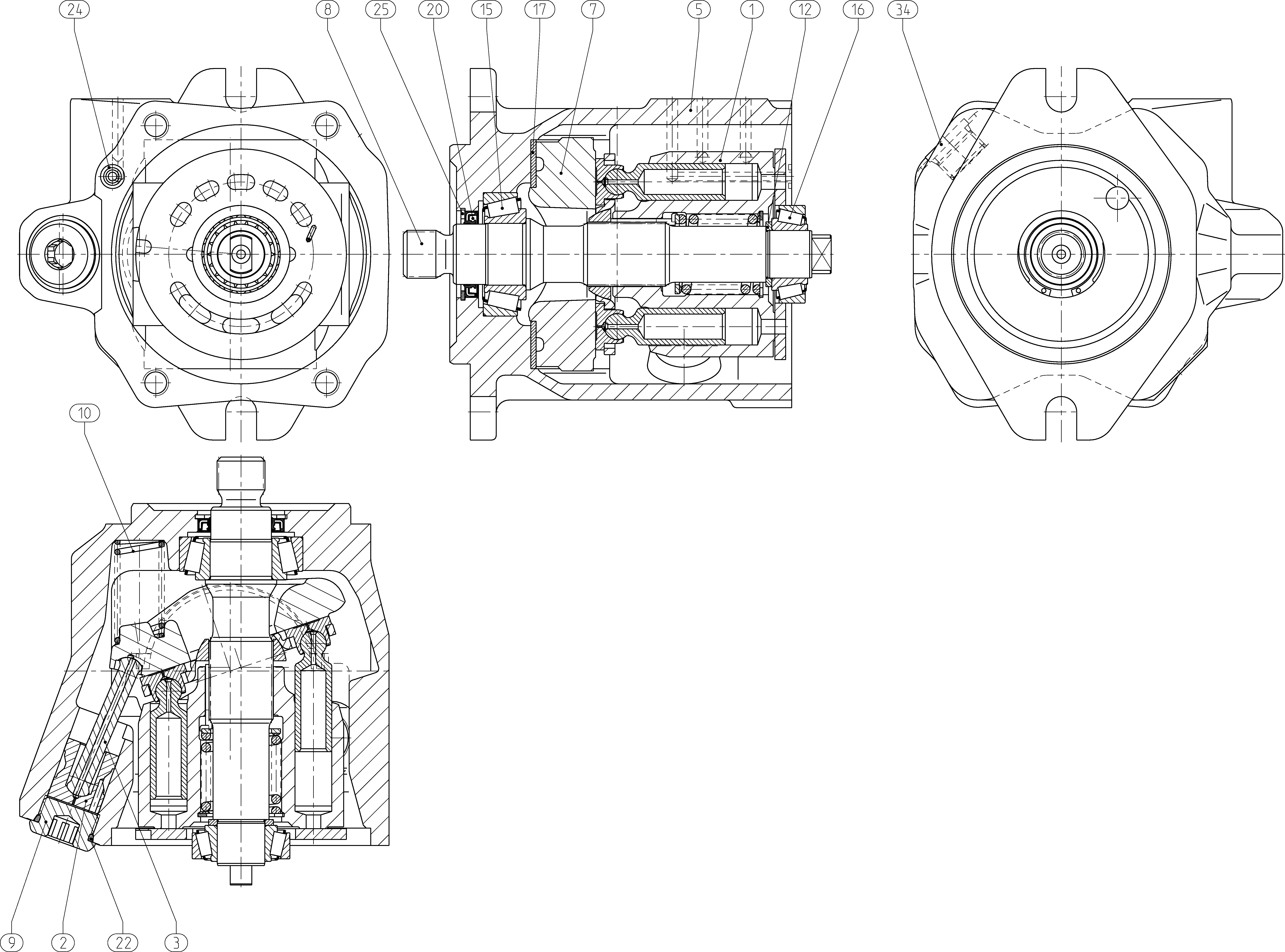

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435772 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| 5 | R902511835 | PUMP HOUSING | 1 | |
| R902437704 | SWASH PLATE | 1 | ||
| R902424919 | DRIVE SHAFT | 1 | ||
| 9 | R902447575 | SCREW PLUG | 1 | |
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| 17 | R910933793 | BEARING SHELL | 2 | |
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| 24 | R910942133 | R-RINGD | 1 | |
| R902403814 | RETAINING RING | 1 | ||
| R910967343 | SCREW PLUG | 1 |
