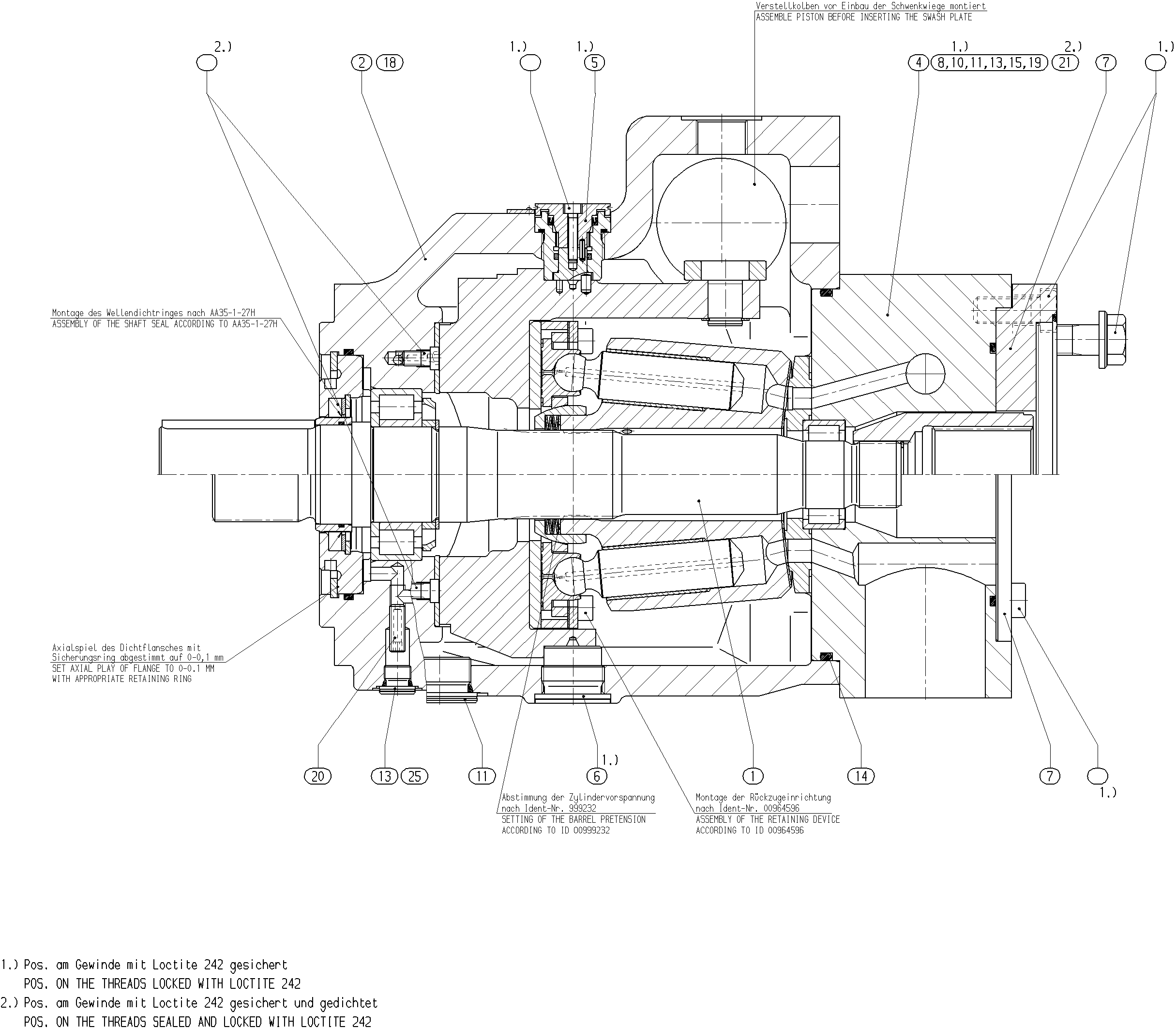

Einheit · BASE UNIT
G A4VBO 125 'LR' M/30W-VZB25K04 -S1953R902563529
Grundeinheit Bosch Rexroth Baureihe A4VBO, Typschlüssel GA4VBO125'LR'M/30W-VZB25K04-S1953, Materialnummer R902563529.
- Nummer
- R902563529
- Typschlüssel
- G A4VBO 125 'LR' M/30W-VZB25K04 -S1953
- Gruppe
- A4VBO 125
- Ausgabe
- 07/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902492844 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902563528 | PUMP HOUSING | 1 | ||
| R902448483 | CONNECTION PLATE | 1 | ||
| R910970503 | INDICATING DEVICE Stückliste der Baugruppe →L | 1 | ||
| R910929476 | STUD BOLT Stückliste der Baugruppe →L | 1 | ||
| R902513341 | ATTACHMENT KIT | 1 | ||
| R902454165 | BLANK FLANGE Stückliste der Baugruppe →L | 1 | ||
| R902650908 | SOCKET HEAD CAP SCREW | 4 | ||
| R902602115 | SCREW PLUGD | 3 | ||
| R909831482 | SCREW PLUGD | 3 | ||
| R910929492 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910987283 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
