Einheit · BASE UNIT
G A4VSLO750 K/30L-VZH25KB5R902572865

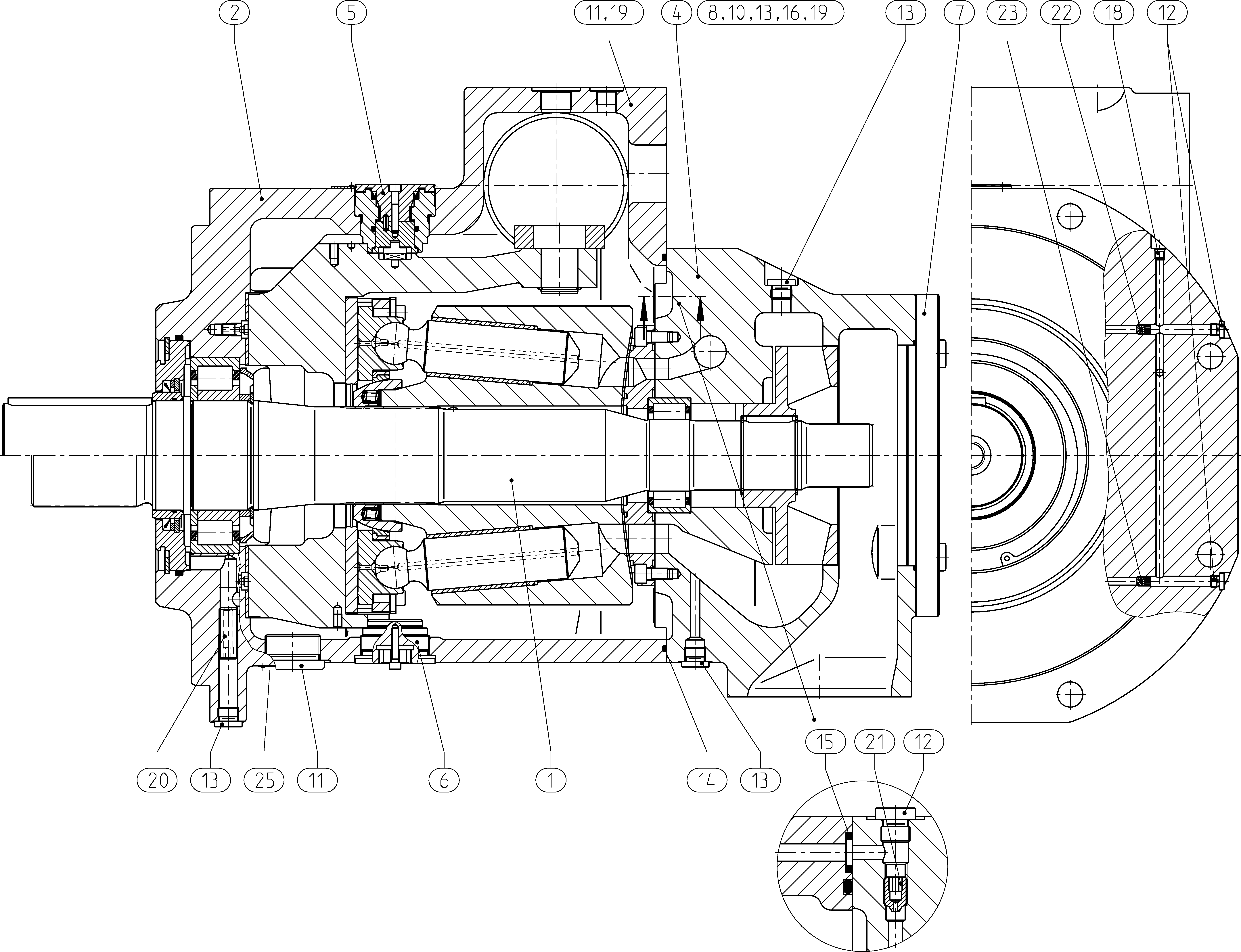

Grundeinheit Bosch Rexroth Baureihe A4VSLO, Typschlüssel GA4VSLO750K/30L-VZH25KB5, Materialnummer R902572865.
- Nummer
- R902572865
- Typschlüssel
- G A4VSLO750 K/30L-VZH25KB5
- Gruppe
- A4VSLO 750
- Ausgabe
- 07/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910995725 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910984828 | PUMP HOUSING | 1 | ||
| R910965028 | CONNECTION PLATE | 1 | ||
| R902516002 | INDICATING DEVICE | 1 | ||
| R902569297 | STUD BOLT Stückliste der Baugruppe →L | 1 | ||
| R902559242 | ATTACHMENT KIT | 1 | ||
| R902488544 | BLANK FLANGE Stückliste der Baugruppe →L | 1 | ||
| R910970213 | SOCKET HEAD CAP SCREW | 8 | ||
| R910942230 | SCREW PLUG | 3 | ||
| R909156649 | SCREW PLUG | 3 | ||
| R909156651 | SCREW PLUGD | 5 | ||
| R910948940 | O-RINGD | 1 | ||
| R902651068 | FLANGE SEALINGD | 1 | ||
| R910923835 | R-RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 4 | ||
| R910984830 | THROTTLE SCREW | 1 | ||
| R910969261 | THROTTLE SCREW | 1 | ||
| R910969260 | THROTTLE SCREW | 1 | ||
| R910970352 | THROTTLE SCREW | 1 | ||
| R910979852 | REFERENCE PLATE | 1 | ||
| 98 | R902487075 | SEAL KIT | 1 |
