Einheit · SUMMATION HP-CONTROL
SUMMENLEISTUNGSREGLER40422.3113R909070902
Hydraulikeinheit Bosch Rexroth, Typschlüssel SUMMENLEISTUNGSREGLER40422.3113, Materialnummer R909070902.
- Nummer
- R909070902
- Typschlüssel
- SUMMENLEISTUNGSREGLER40422.3113
- Gruppe
- SUMMATION HP-CONTROL
- Ausgabe
- 03/2020

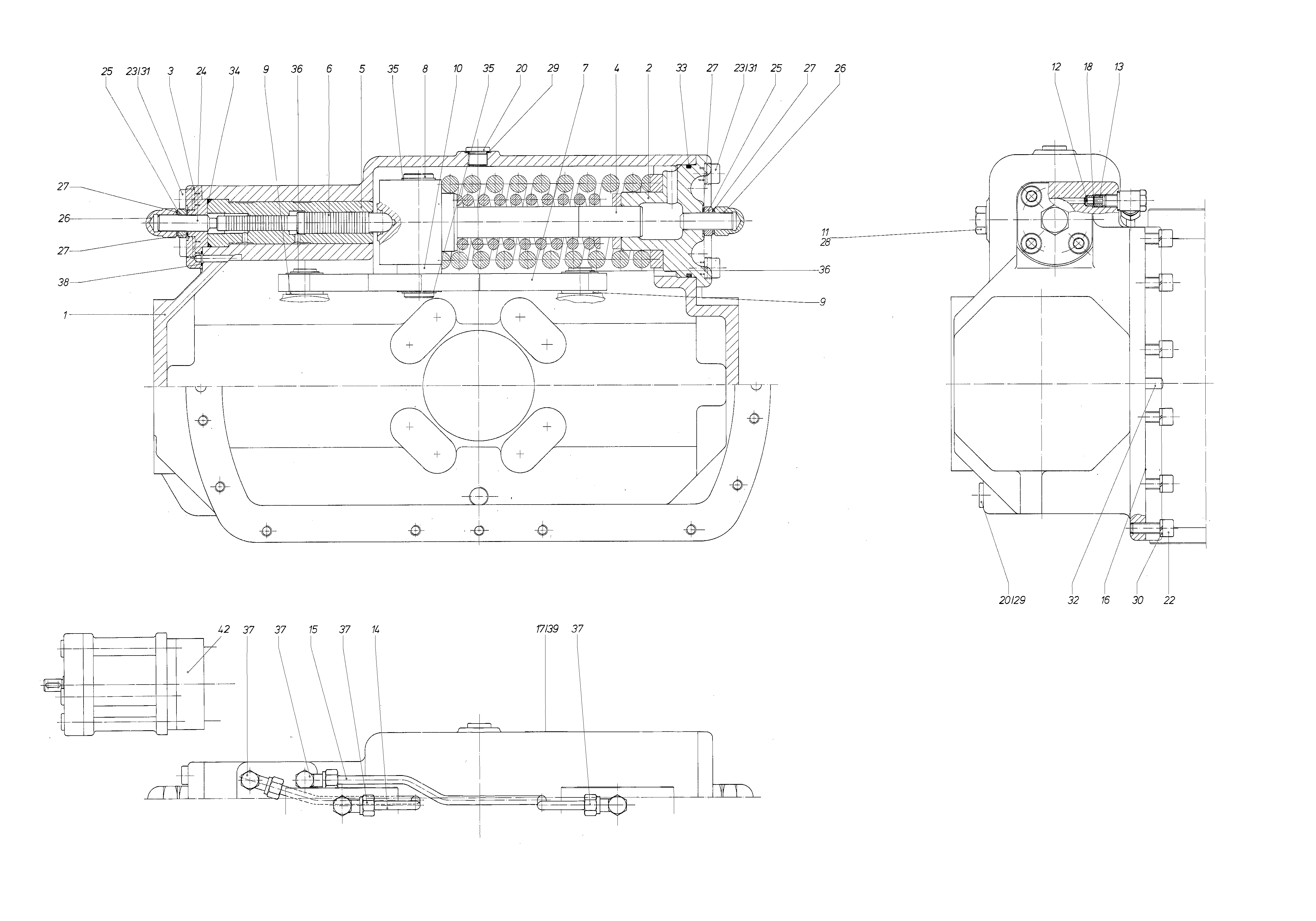

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909063727 | CONTROL HOUSING | 1 | ||
| R909063607 | COVER | 1 | ||
| R909063615 | GOVERNOR ROD | 1 | ||
| R909063667 | CONTROL BUSHING | 1 | ||
| R909063668 | REGULATOR PISTON | 1 | ||
| R909063619 | FORK | 1 | ||
| R909063678 | BOLT | 1 | ||
| R909063679 | BUSHING | 2 | ||
| R909063680 | BUSHING | 1 | ||
| R909007232 | GUIDE SCREW | 1 | ||
| R909055241 | ORIFICE BUSHING | 2 | ||
| R909055244 | STRAINING SCREW | 2 | ||
| R909063728 | TUBING | 1 | ||
| R909063729 | TUBING | 1 | ||
| R909007509 | PLATE | 1 | ||
| R909000067 | SIEVE PLATE | 2 | ||
| R909153815 | SCREW PLUG | 2 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 18 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154311 | HEXAGON NUT | 1 | ||
| R909085855 | CAP NUT | 1 | ||
| R909084309 | SEAL RINGD | 2 | ||
| R909085273 | SEAL RINGD | 1 | ||
| R909083251 | SPRING LOCK WASHER | 18 | ||
| R909083252 | SPRING LOCK WASHER | 4 | ||
| R909084722 | HALF LENGTH TPR GRVD DOWEL PIN | 2 | ||
| R909086949 | O-RINGD | 1 | ||
| R909083809 | O-RINGD | 1 | ||
| R909085803 | RETAINING RING | 2 | ||
| R909083354 | RETAINING RING | 2 | ||
| R909152011 | THREADED FASTENER | 4 | ||
| R909084287 | GROOVED NAIL | 2 | ||
| R909066068 | POWER REGULATOR Stückliste der Baugruppe →L | 1 |
