Einheit · AXIAL-PISTON PUMP
KFA2FO56/61R-DEK64R909428308
Axialkolbenpumpe Bosch Rexroth Baureihe A2FO, Typschlüssel KFA2FO56/61R-DEK64, Materialnummer R909428308.
- Nummer
- R909428308
- Typschlüssel
- KFA2FO56/61R-DEK64
- Gruppe
- A2FO 56
- Ausgabe
- 10/2018

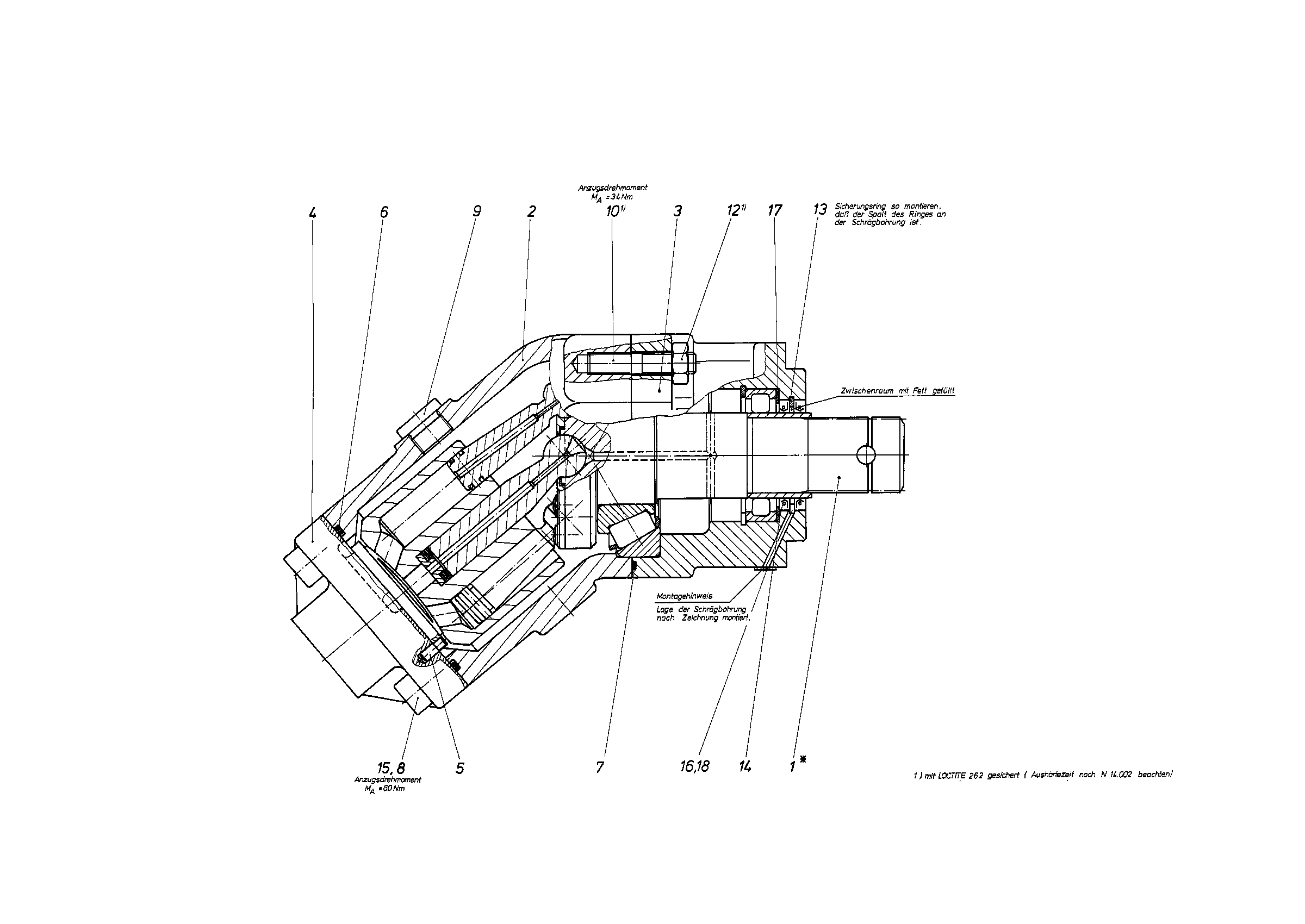

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| — | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909418750 | HOUSING | 1 | ||
| R909921995 | HOUSING COVER | 1 | ||
| R909419359 | CONNECTION PLATE | 1 | ||
| R909422799 | STRAIGHT PIN | 1 | ||
| R909086324 | O-RINGD | 1 | ||
| R909154589 | O-RINGD | 1 | ||
| R909083091 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| — | STUD | 4 | ||
| R909083614 | HEXAGON NUT | 4 | ||
| R909083404 | RETAINING RING | 1 | ||
| — | SHAFT SEALING RINGD | 2 | ||
| — | GROOVED NAIL | 2 | ||
| R909084989 | SHIM RINGD | 1 | ||
| R909921950 | SHEET METAL COVER | 1 |
