Einheit · AXIAL-PISTON PUMP
A4V56DA1.0R0G1A1AR909437754
Axialkolbenpumpe Bosch Rexroth Baureihe A4V, Typschlüssel A4V56DA1.0R0G1A1A, Materialnummer R909437754.
- Nummer
- R909437754
- Typschlüssel
- A4V56DA1.0R0G1A1A
- Gruppe
- A4V 56
- Ausgabe
- 09/2018

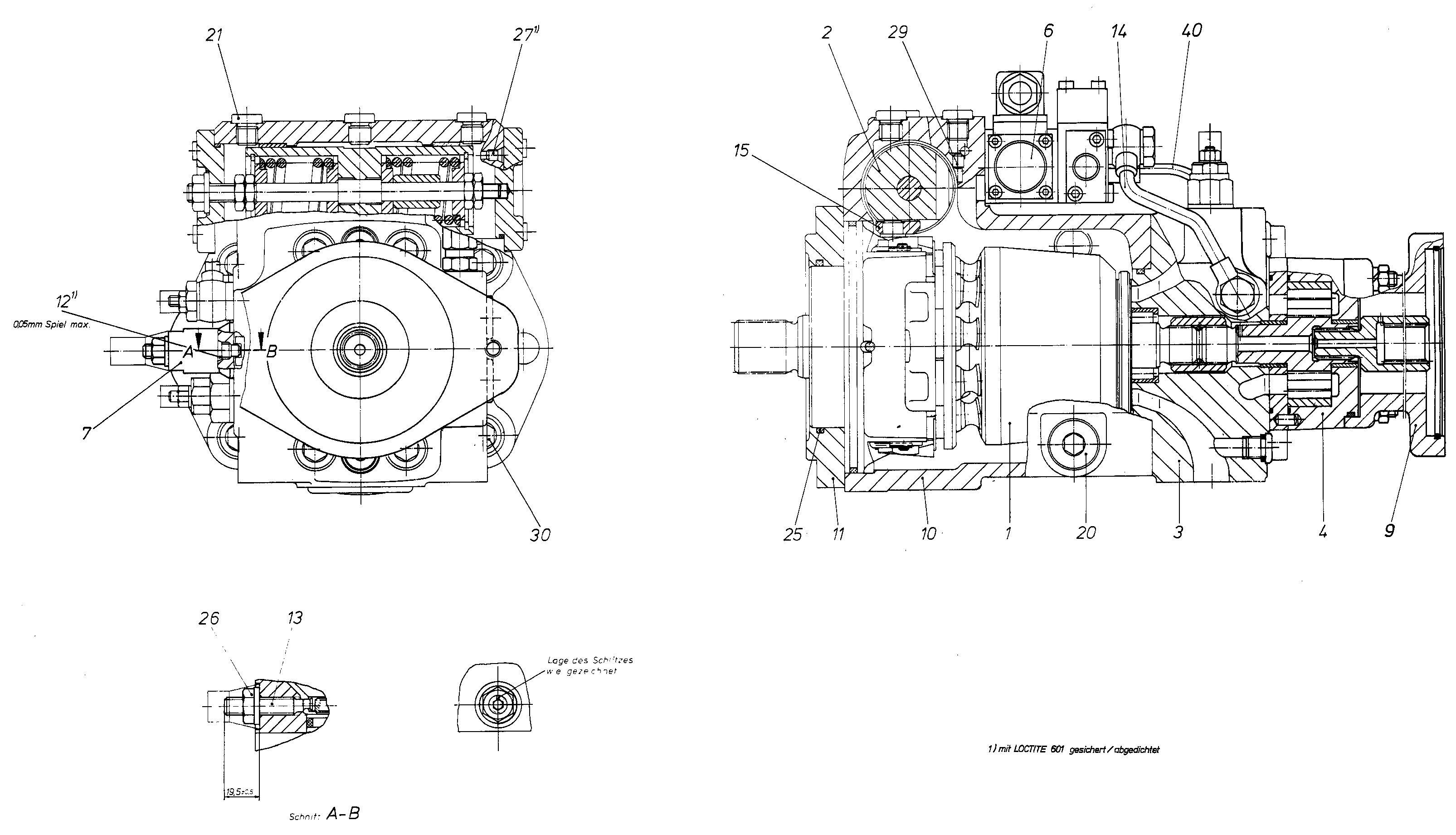

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909434157 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909414468 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909079465 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909404646 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R909438361 | DIRECTIONAL-CONTROL VALVE Stückliste der Baugruppe →L | 1 | ||
| R909414729 | CONTROL CARTRIDGE Stückliste der Baugruppe →L | 1 | ||
| R909404639 | BELL HOUSING Stückliste der Baugruppe →L | 1 | ||
| — | HOUSING | 1 | ||
| R909074129 | FLANGE | 1 | ||
| R909414043 | ANTI-TWIST LOCK | 1 | ||
| R909414044 | ANTI-TWIST LOCK | 1 | ||
| R909405757 | ECCENTRIC SCREW | 1 | ||
| R909400357 | PIPE Stückliste der Baugruppe →L | 1 | ||
| R909425992 | SLIDER | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909083825 | O-RINGD | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156492 | NOZZLE | 2 | ||
| R909153817 | SOCKET HEAD CAP SCREW | 4 | ||
| R909416180 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 |
