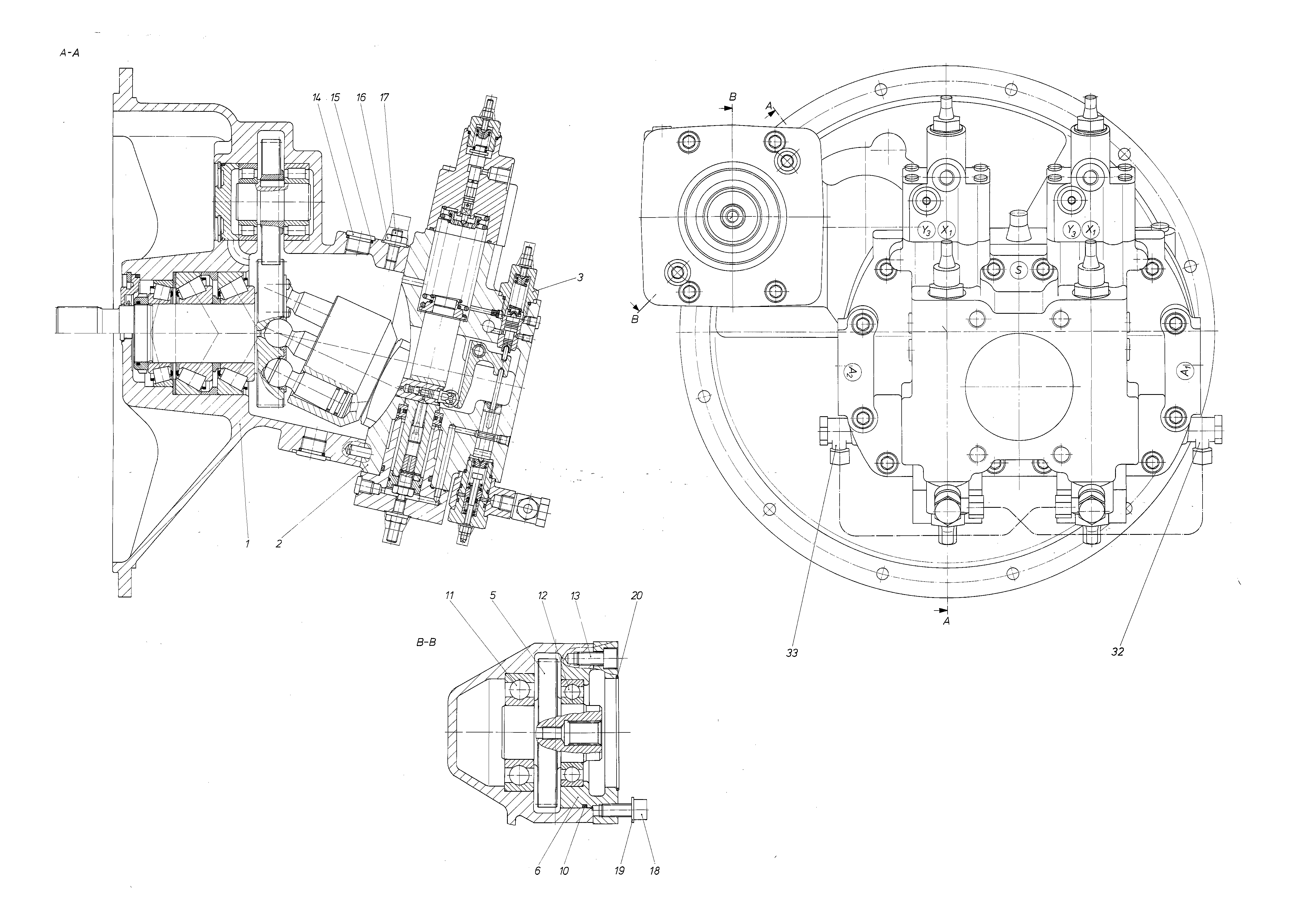

Einheit · AXIAL-PISTON PUMP
A8VO107LR3CH2/60R1-PZG05K02R909438598
Axialkolbenpumpe Bosch Rexroth Baureihe A8VO, Typschlüssel A8VO107LR3CH2/60R1-PZG05K02, Materialnummer R909438598.
- Nummer
- R909438598
- Typschlüssel
- A8VO107LR3CH2/60R1-PZG05K02
- Gruppe
- A8VO 107
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909427909 | AXIAL-PISTON PUMP Stückliste der Baugruppe →L | 1 | ||
| R902027417 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902119597 | TOOTHED WHEEL | 1 | ||
| R909439971 | FLANGE | 1 | ||
| R909085366 | O-RINGD | 1 | ||
| R909085479 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909150669 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083225 | SCREW PLUG | 2 | ||
| R909083758 | O-RINGD | 2 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083500 | SETSCREW | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430409 | WASHER | 2 | ||
| R909154589 | O-RINGD | 1 | ||
| R909433159 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909438762 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 |
