Einheit · AXIAL-PISTON PUMP
A8VO28SR/60R3-NZG05N00R909438971
Axialkolbenpumpe Bosch Rexroth Baureihe A8VO, Typschlüssel A8VO28SR/60R3-NZG05N00, Materialnummer R909438971.
- Nummer
- R909438971
- Typschlüssel
- A8VO28SR/60R3-NZG05N00
- Gruppe
- A8VO 28
- Ausgabe
- 06/2020

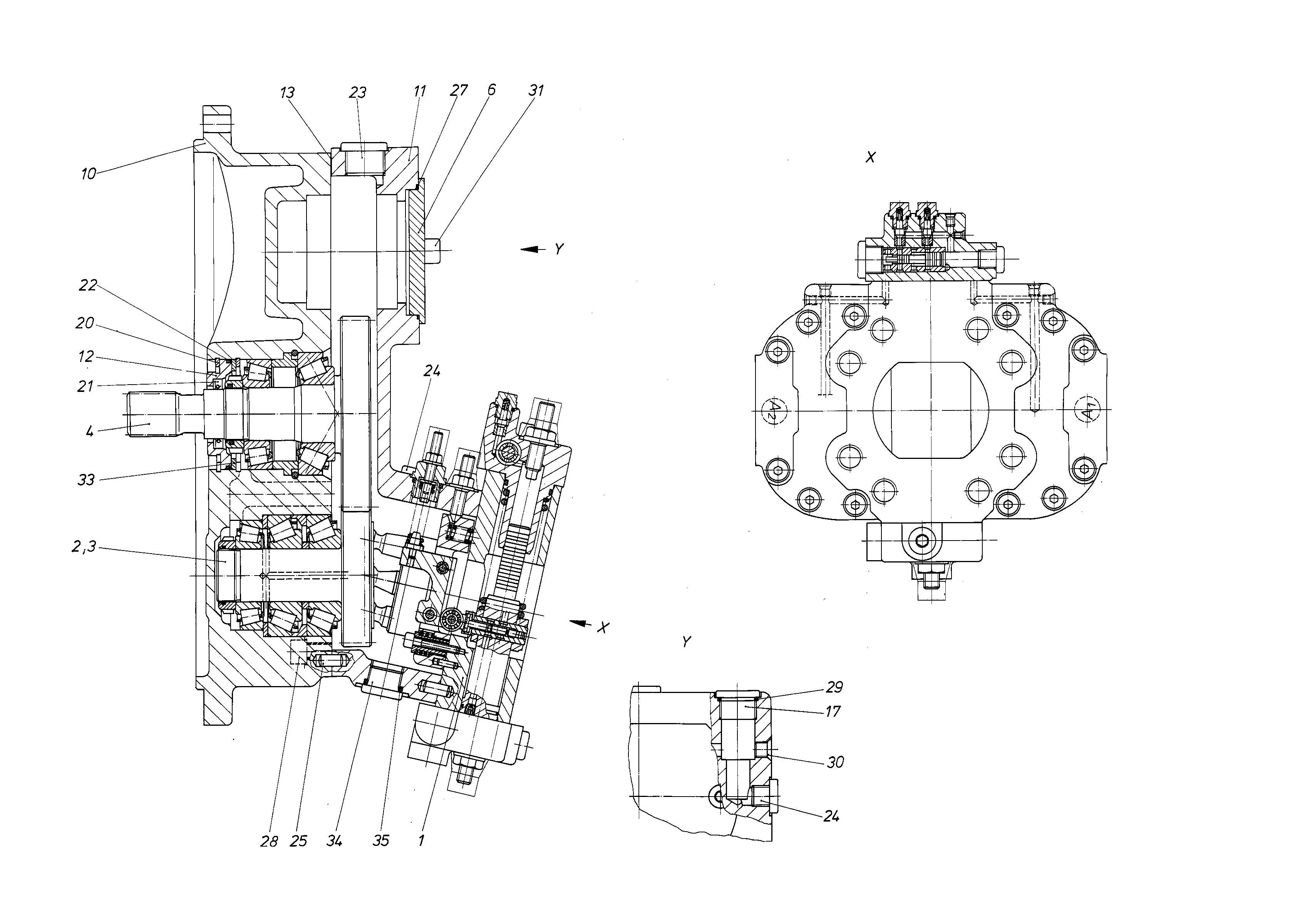

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909438970 | CONTROL Stückliste der Baugruppe →L | 1 | |
| R909441545 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909441546 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 4 | R909441547 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| 6 | R909429294 | COVER Stückliste der Baugruppe →L | 1 | |
| R909436880 | GEAR HOUSING | 1 | ||
| 11 | R909436883 | ROTARY GROUP HOUSING | 1 | |
| 12 | R909439053 | LOCKING RING | 1 | |
| R909650392 | SEALD | 1 | ||
| R909087198 | SCREW PLUG | 1 | ||
| R909083412 | RETAINING RING | 2 | ||
| 21 | R909152835 | SHAFT SEALING RINGD | 1 | |
| R909083788 | O-RINGD | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| 25 | R913009667 | STRAIGHT PIN | 2 | |
| R913044774 | O-RINGD | 1 | ||
| 28 | R909083061 | SOCKET HEAD CAP SCREW | 13 | |
| R909083760 | O-RINGD | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083057 | SOCKET HEAD CAP SCREW | 2 | ||
| 33 | R909087188 | SUPPORTING DISCD | 1 | |
| 34 | R909083225 | SCREW PLUG | 1 | |
| R909083758 | O-RINGD | 1 |
