Einheit · AXIAL-PISTON PUMP
A8VTO107LR3DS/60R1-441261*G*R909441261
Axialkolbenpumpe Bosch Rexroth Baureihe A8VTO, Typschlüssel A8VTO107LR3DS/60R1-441261*G*, Materialnummer R909441261.
- Nummer
- R909441261
- Typschlüssel
- A8VTO107LR3DS/60R1-441261*G*
- Gruppe
- A8VTO 107
- Ausgabe
- 06/2020

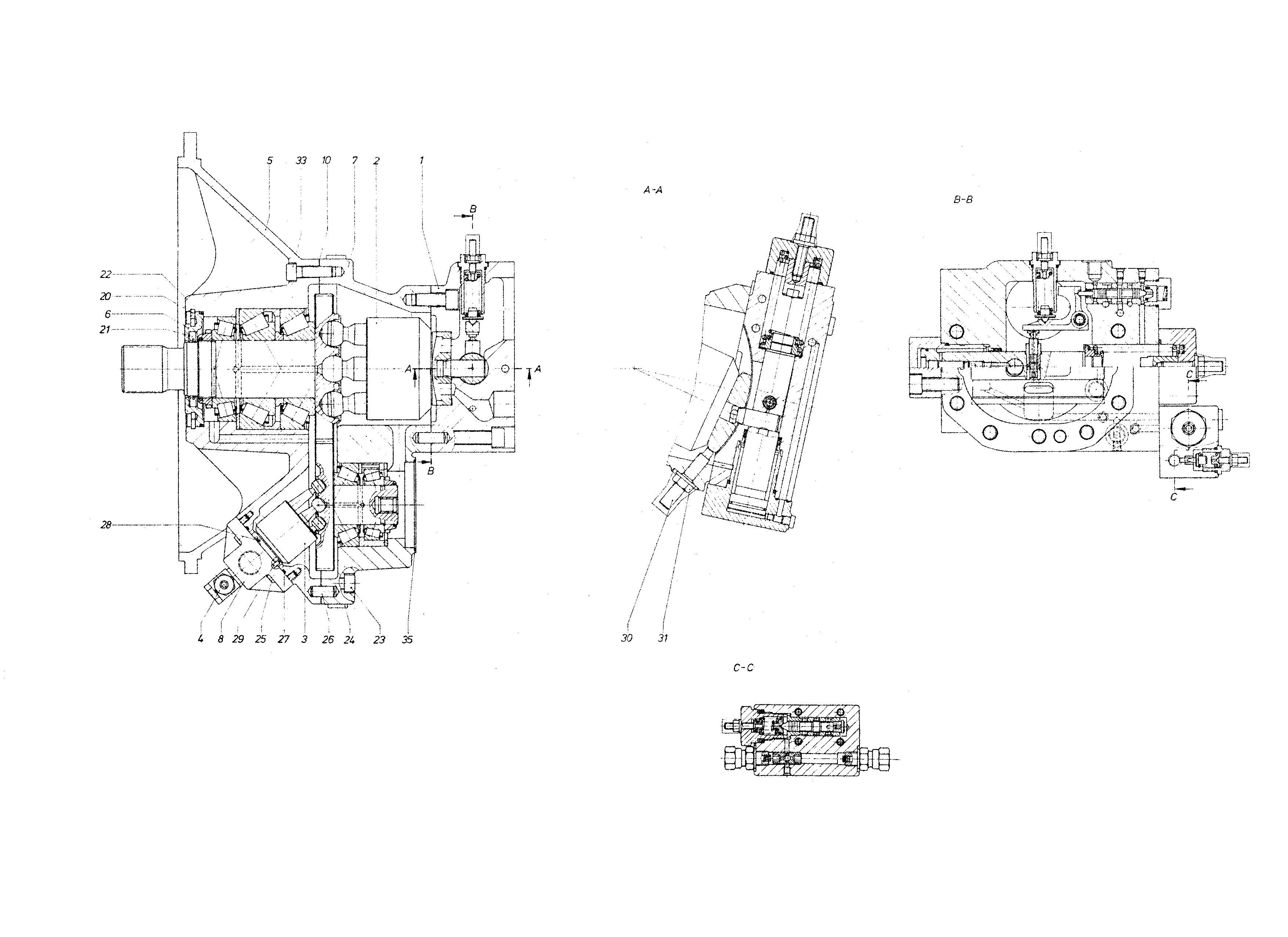

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909415981 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909434733 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909434734 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909434750 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909439591 | GEAR HOUSING | 1 | ||
| R909416121 | LOCKING RINGD | 1 | ||
| R909435970 | ROTARY GROUP HOUSING | 1 | ||
| R909435909 | CONNECTION PLATE | 1 | ||
| R909650796 | SEALD | 1 | ||
| R909083419 | RETAINING RING | 1 | ||
| R913043034 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083829 | O-RINGD | 1 | ||
| R909083063 | SOCKET HEAD CAP SCREW | 6 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 6 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R902600656 | O-RINGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909084134 | STRAIGHT PIN | 1 | ||
| R909085976 | SETSCREW | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R909083091 | SOCKET HEAD CAP SCREW | 6 | ||
| R909086720 | O-RINGD | 1 |
