Einheit · AXIAL-PISTON PUMP
A8VO80LR3DH2/60R1-PZG05K13R909442430

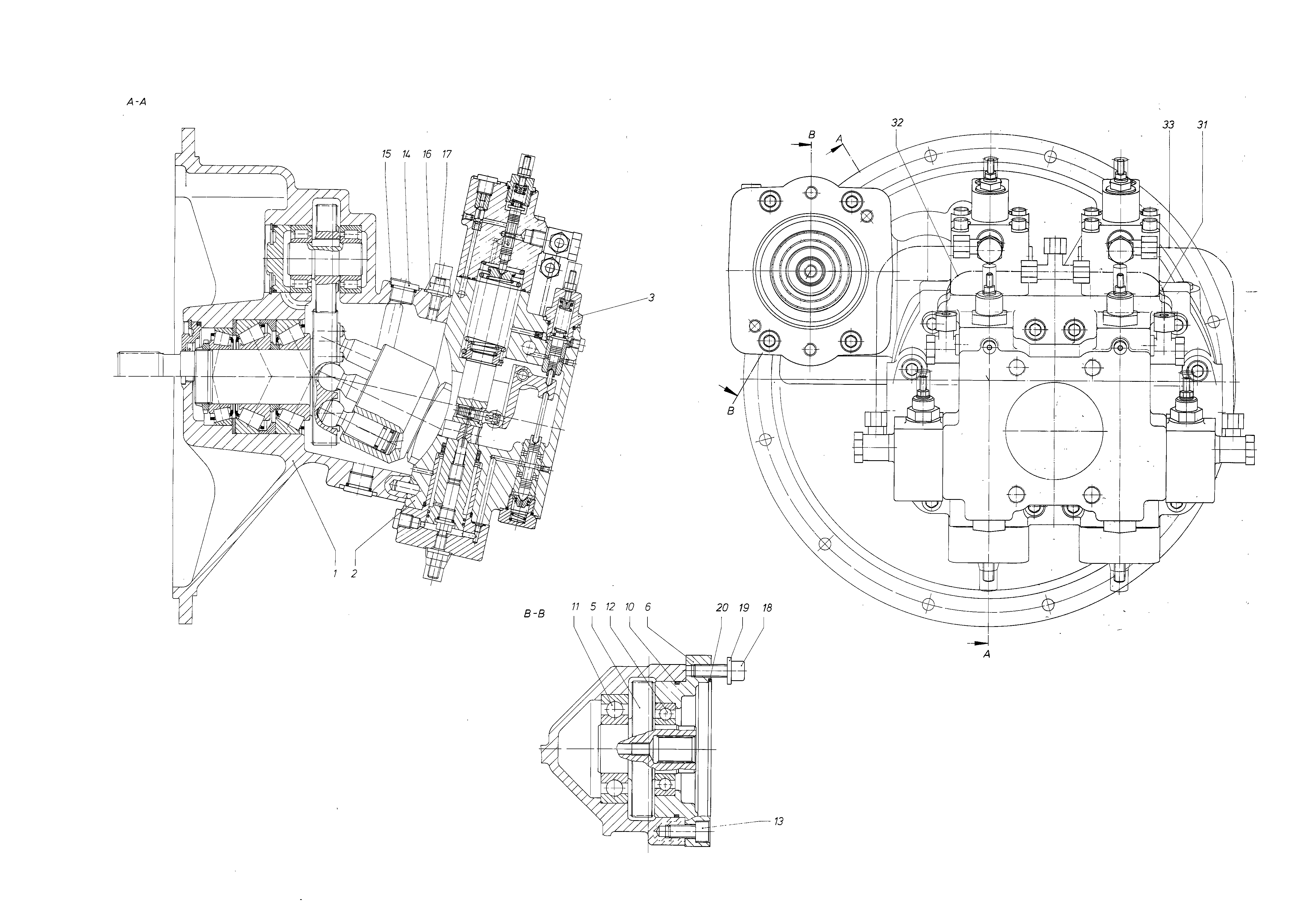

Axialkolbenpumpe Bosch Rexroth Baureihe A8VO, Typschlüssel A8VO80LR3DH2/60R1-PZG05K13, Materialnummer R909442430.
- Nummer
- R909442430
- Typschlüssel
- A8VO80LR3DH2/60R1-PZG05K13
- Gruppe
- A8VO 80
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909418512 | AXIAL-PISTON PUMP Stückliste der Baugruppe →L | 1 | ||
| R909442431 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902117580 | TOOTHED WHEEL | 1 | ||
| R902099415 | FLANGE | 1 | ||
| R909152647 | O-RINGD | 1 | ||
| R909085478 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909150668 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083225 | SCREW PLUG | 2 | ||
| R909083758 | O-RINGD | 2 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083500 | SETSCREW | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430409 | WASHER | 2 | ||
| R909085365 | O-RINGD | 1 | ||
| R909433183 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909433182 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R909442435 | HYDRAULIC LINE Stückliste der Baugruppe →L | 2 |
