Einheit · CONTROL PART
CONTROL PART A6VM085DA0/71A-SR909603791
Regler Bosch Rexroth Baureihe A6VM, Typschlüssel CONTROLPARTA6VM085DA0/71A-S, Materialnummer R909603791.
- Nummer
- R909603791
- Typschlüssel
- CONTROL PART A6VM085DA0/71A-S
- Gruppe
- A6VM 85
- Ausgabe
- 02/2020

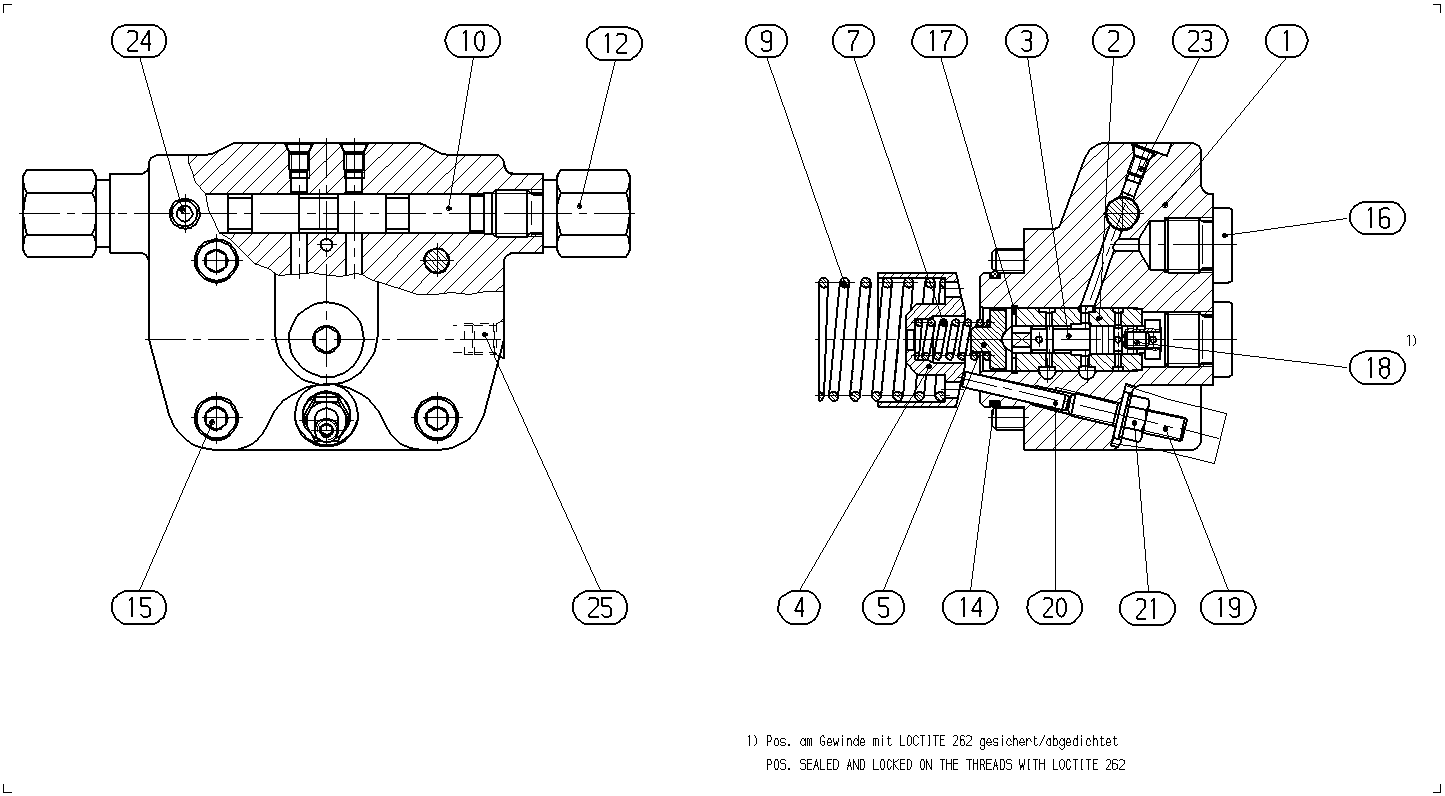

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909921542 | CONTROL HOUSING | 1 | ||
| R909424258 | CONTROL SLEEVE | 1 | ||
| R909921245 | CONTROL PISTON | 1 | ||
| R909651118 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909651116 | COMPRESSION SPRING | 1 | ||
| R909435792 | SLIDE | 1 | ||
| R902049134 | THREADED REDUCING STUD Stückliste der Baugruppe →L | 2 | ||
| R909157562 | O-RINGD | 1 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 4 | ||
| R913044793 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902216406 | PLUG | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R900078091 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
