Einheit · BASE UNIT
G A2V 500 OV OX5GPR910617091
Grundeinheit Bosch Rexroth Baureihe A2V, Typschlüssel GA2V500OVOX5GP, Materialnummer R910617091.
- Nummer
- R910617091
- Typschlüssel
- G A2V 500 OV OX5GP
- Gruppe
- A2V 500
- Ausgabe
- 06/2020

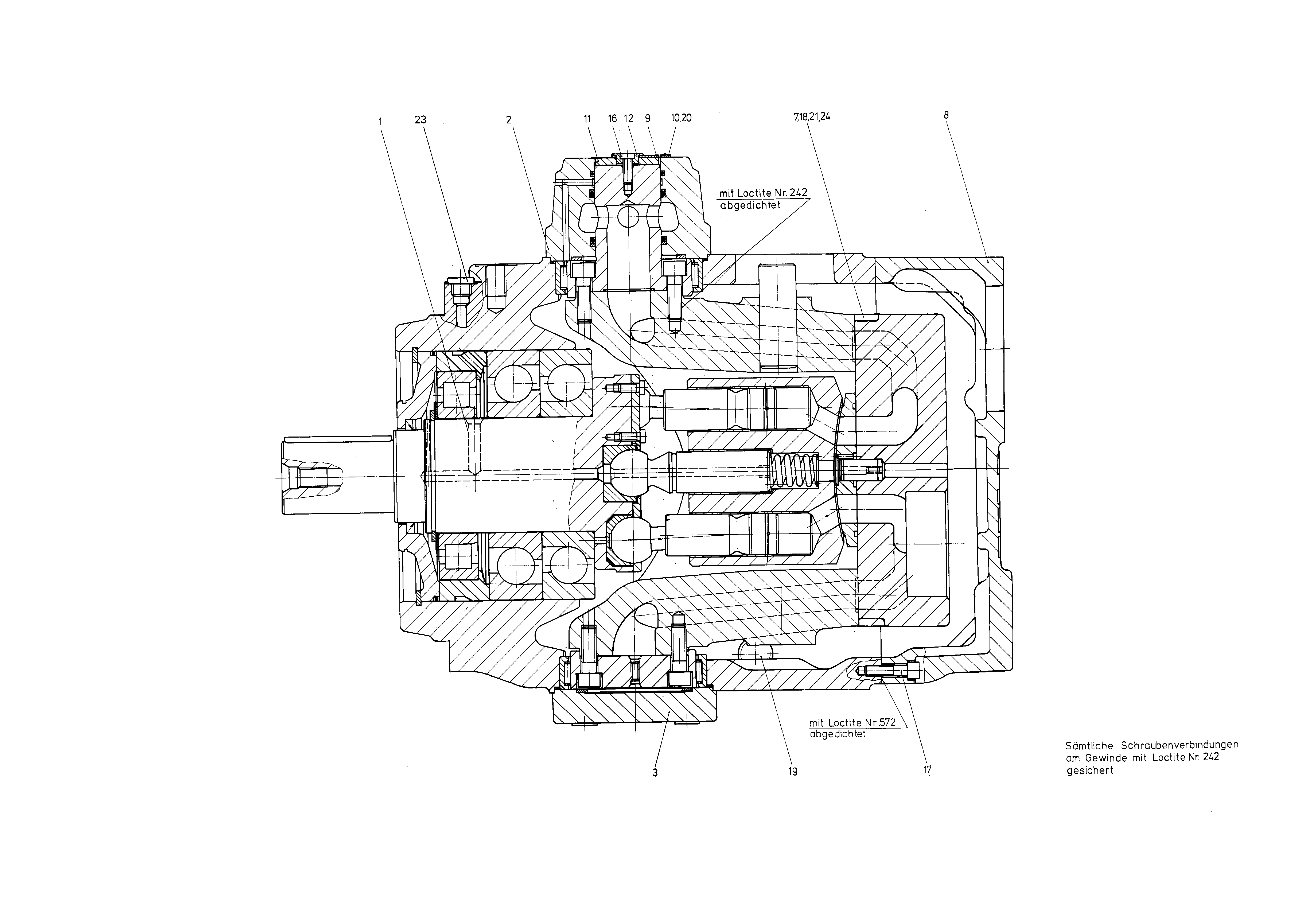

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910965746 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 2 | R910604852 | PIPE FLANGE Stückliste der Baugruppe →L | 1 | |
| R910617318 | BLANK FLANGE Stückliste der Baugruppe →L | 1 | ||
| 7 | R910617334 | CONTROL PLATE | 1 | |
| 8 | R910400645 | HOUSING COVER | 1 | |
| 9 | R910029157 | POINTER | 1 | |
| 10 | R910029165 | DIAL | 1 | |
| 11 | R910604577 | WASHER | 1 | |
| 12 | R910604623 | BUSHING | 1 | |
| 16 | R910265667 | SOCKET HEAD CAP SCREW | 1 | |
| 17 | R910109649 | SOCKET HEAD CAP SCREW | 14 | |
| 18 | R910414751 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909153861 | SCREW PLUGD | 4 | |
| 20 | R910101265 | ROUND-HEAD GROOVED PIN | 2 | |
| 21 | R910602051 | STRAIGHT PIN | 2 | |
| 23 | R909153815 | SCREW PLUGD | 1 | |
| 24 | R910604941 | SEAL RINGD | 2 |
