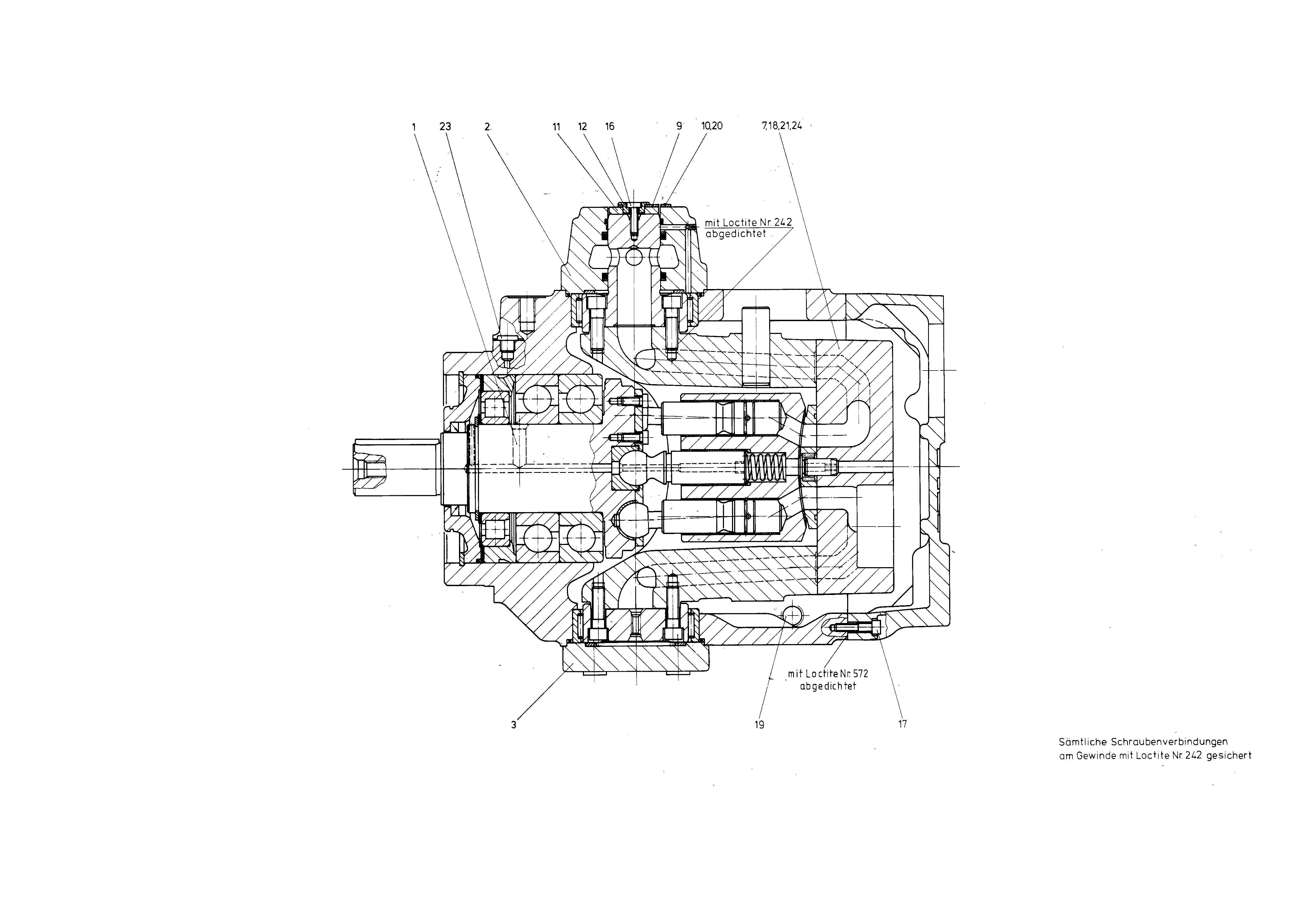

Einheit · BASE UNIT
G A2V 250 OV OX5GPR910656348
Grundeinheit Bosch Rexroth Baureihe A2V, Typschlüssel GA2V250OVOX5GP, Materialnummer R910656348.
- Nummer
- R910656348
- Typschlüssel
- G A2V 250 OV OX5GP
- Gruppe
- A2V 250
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910948307 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910402001 | PIPE FLANGE Stückliste der Baugruppe →L | 1 | ||
| R910656364 | BLANK FLANGE Stückliste der Baugruppe →L | 1 | ||
| R910656437 | CONTROL PLATE | 1 | ||
| 8 | R910401927 | HOUSING COVER | 1 | |
| R910402672 | POINTER | 1 | ||
| R910402699 | DIAL | 1 | ||
| R910402583 | WASHER | 1 | ||
| R910604623 | BUSHING | 1 | ||
| R910265667 | SOCKET HEAD CAP SCREW | 1 | ||
| R910109495 | SOCKET HEAD CAP SCREW | 14 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 8 | ||
| R909151694 | SCREW PLUGD | 4 | ||
| R910101265 | ROUND-HEAD GROOVED PIN | 2 | ||
| R910602051 | STRAIGHT PIN | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910402222 | SEAL RINGD | 2 |
