Einheit · BASE UNIT
G A2P 500 OV HX5GV1P O.SAUG.BOHR.R910711179
Grundeinheit Bosch Rexroth Baureihe A2P, Typschlüssel GA2P500OVHX5GV1PO.SAUG.BOHR., Materialnummer R910711179.
- Nummer
- R910711179
- Typschlüssel
- G A2P 500 OV HX5GV1P O.SAUG.BOHR.
- Gruppe
- BASE UNIT
- Ausgabe
- 05/2020

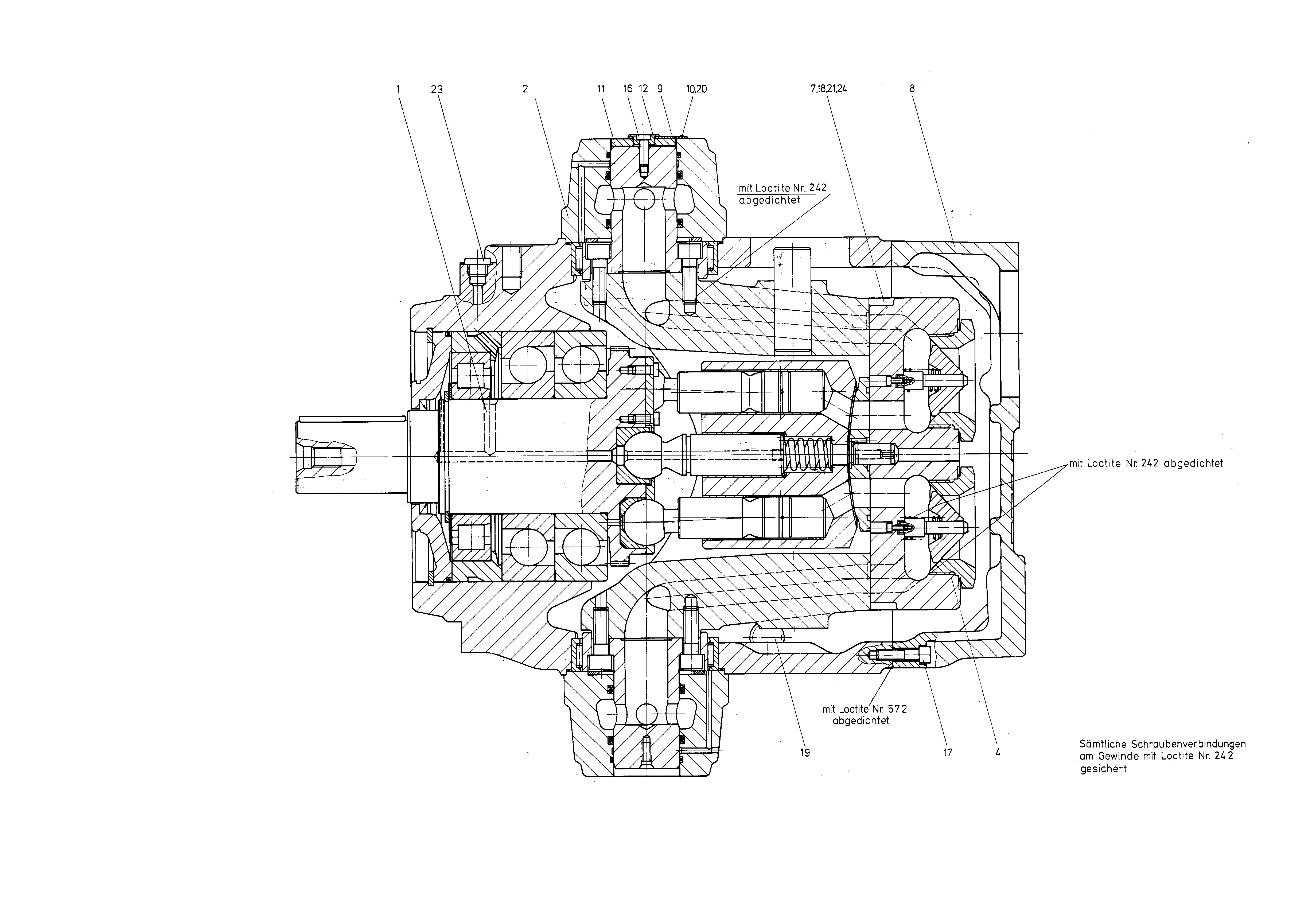

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910948303 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 2 | R910604836 | PIPE FLANGE Stückliste der Baugruppe →L | 2 | |
| R910400688 | ANTI-CAVITATION CHECK VALVE Stückliste der Baugruppe →L | 2 | ||
| R910400661 | CONTROL PLATE | 1 | ||
| 8 | R910400645 | HOUSING COVER | 1 | |
| 9 | R910029157 | POINTER | 1 | |
| R910029165 | DIAL | 1 | ||
| 11 | R910604577 | WASHER | 1 | |
| 12 | R910604623 | BUSHING | 1 | |
| 16 | R910265667 | SOCKET HEAD CAP SCREW | 1 | |
| R910109649 | SOCKET HEAD CAP SCREW | 14 | ||
| 18 | R910414751 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909153861 | SCREW PLUGD | 4 | |
| R910101265 | ROUND-HEAD GROOVED PIN | 2 | ||
| 21 | R910602051 | STRAIGHT PIN | 2 | |
| R909153815 | SCREW PLUGD | 1 | ||
| 24 | R910604941 | SEAL RINGD | 4 |
