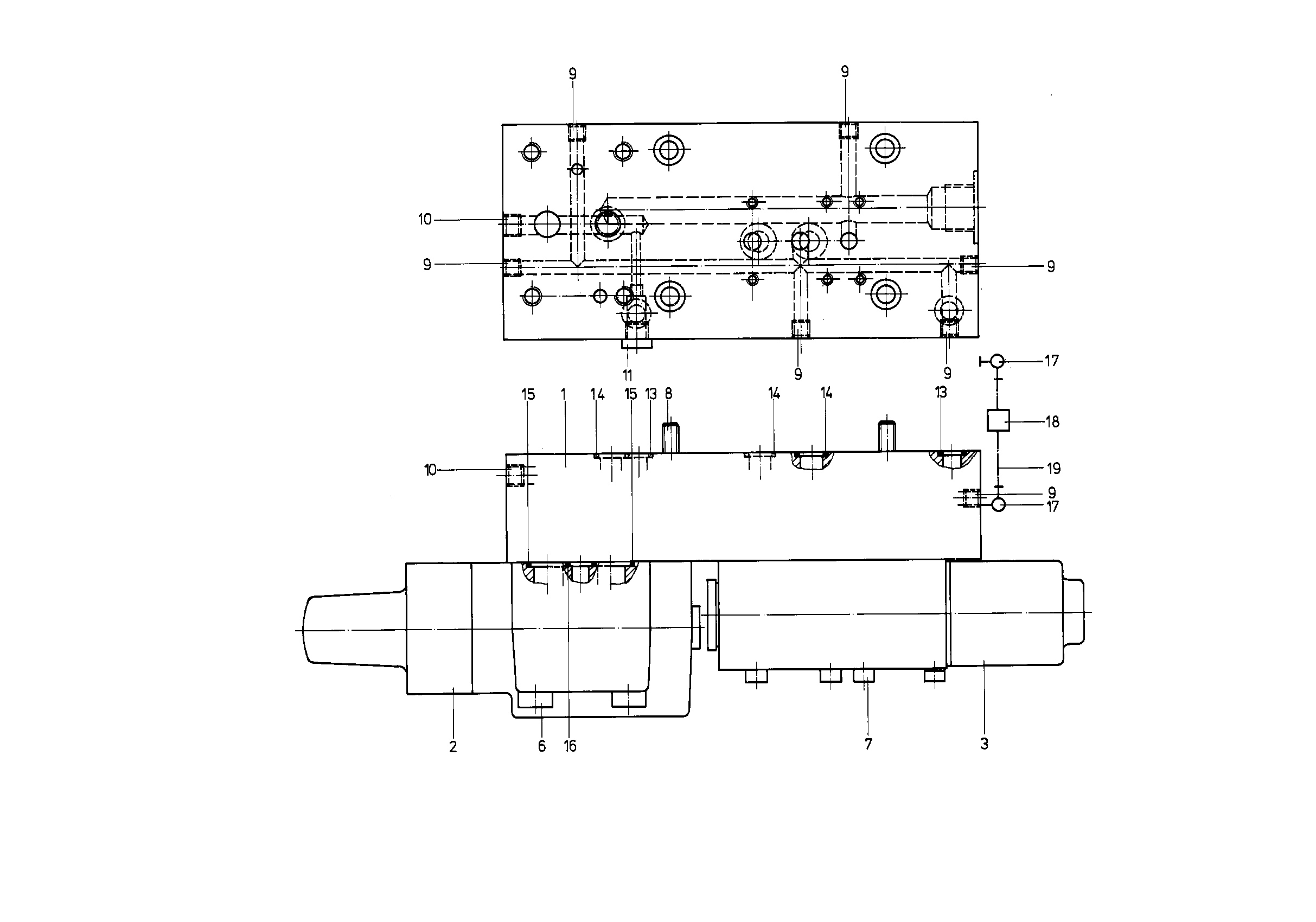

Einheit · CONNECTION PLATE
CONNECTION PLATE ANSCHL.PL.LEISTUNGSR&R910711934
Anschlussplatte Bosch Rexroth, Typschlüssel CONNECTIONPLATEANSCHL.PL.LEISTUNGSR&, Materialnummer R910711934.
- Nummer
- R910711934
- Typschlüssel
- CONNECTION PLATE ANSCHL.PL.LEISTUNGSR&
- Gruppe
- CONNECTION PLATE
- Ausgabe
- 05/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910656747 | CONNECTION PLATE | 1 | ||
| 2 | R910684775 | PRESSURE RELIEF VALVE | 1 | |
| R910628069 | PERFORMANCE LIMIT VALVE Stückliste der Baugruppe →L | 1 | ||
| 6 | R910109673 | SOCKET HEAD CAP SCREW | 4 | |
| R910109401 | SOCKET HEAD CAP SCREW | 6 | ||
| 8 | R910120243 | SOCKET HEAD CAP SCREW | 4 | |
| 9 | R910230545 | SCREW PLUG | 6 | |
| R910108057 | SCREW PLUG | 1 | ||
| 11 | R909153364 | SCREW PLUGD | 1 | |
| 13 | R910102032 | O-RINGD | 2 | |
| R910111082 | O-RINGD | 3 | ||
| 15 | R910111104 | O-RINGD | 2 | |
| 16 | R910102024 | O-RINGD | 1 | |
| R910903350 | THREADED FASTENER | 1 | ||
| 18 | R910965695 | FASTENING CLAMP | 1 | |
| 19 | R910094161 | PIPEMYANMAR | 800 | |
| 20 | R910778303 | THREADED FASTENER | 1 | |
| 21 | R910905448 | THREADED FASTENER | 1 | |
| 22 | R910968460 | THREADED FASTENER | 1 |
