Einheit · ROTARY GROUP
TW A7V-SL 500 L5ZX-9KR910789585
Triebwerk Bosch Rexroth Baureihe A7V, Typschlüssel TWA7V-SL500L5ZX-9K, Materialnummer R910789585.
- Nummer
- R910789585
- Typschlüssel
- TW A7V-SL 500 L5ZX-9K
- Gruppe
- A7VSL 500
- Ausgabe
- 06/2020

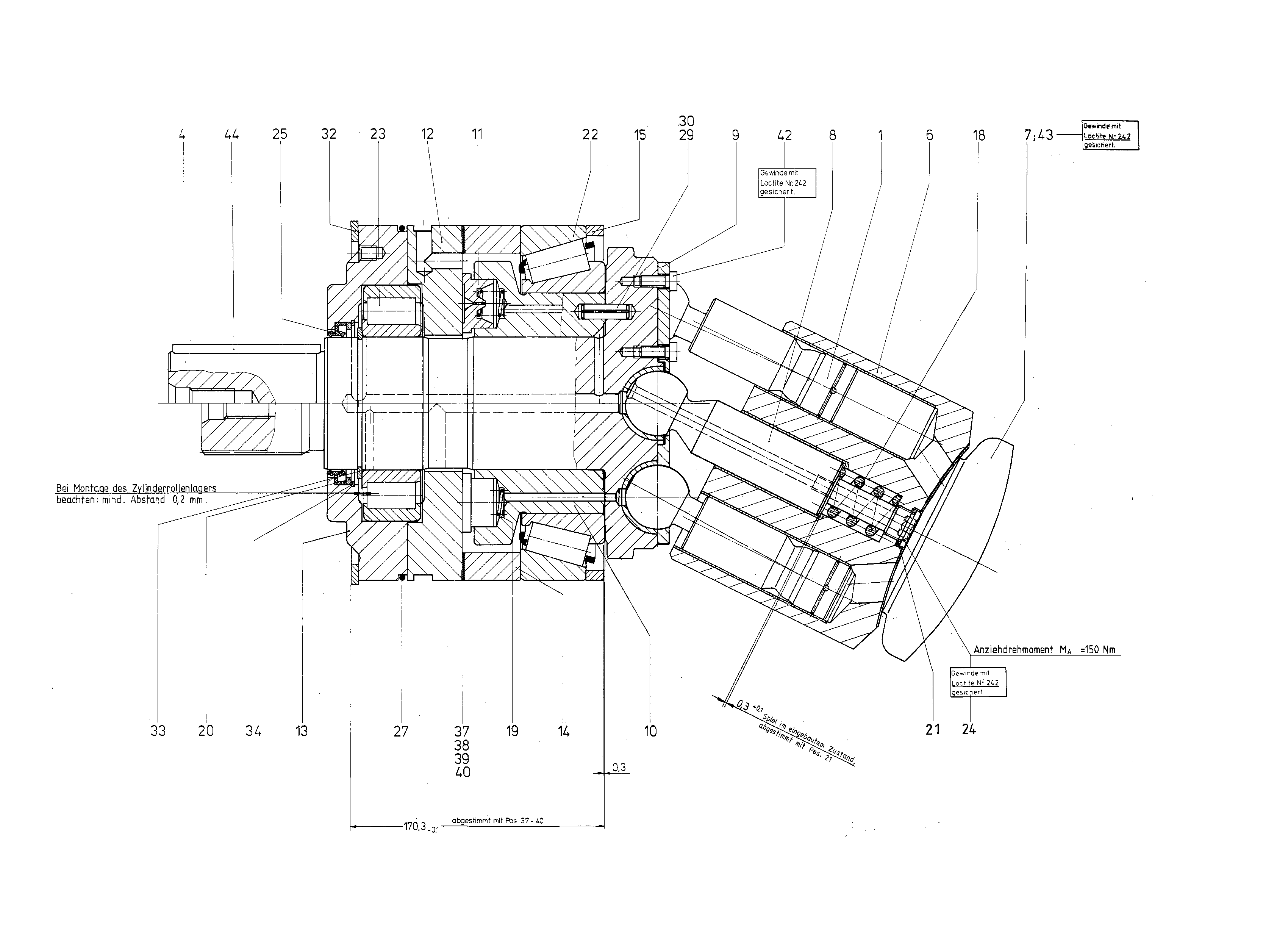

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910714852 | PISTON | 7 | |
| R902534563 | DRIVE FLANGE | 1 | ||
| 6 | R910602086 | CYLINDER | 1 | |
| R910801310 | CONTROL LENS | 1 | ||
| 8 | R910795119 | THRUST JOURNAL | 1 | |
| 9 | R902556372 | RETAINING PLATE | 1 | |
| R910714887 | PAD SUPPORT WITH SEAL | 1 | ||
| R910714798 | PAD | 7 | ||
| R910714879 | SLIDING DISC | 1 | ||
| R910906681 | SEALING FLANGE | 1 | ||
| R910714836 | SPACER RING | 1 | ||
| 15 | R910714828 | RING | 1 | |
| R910678767 | COMPRESSION SPRING | 1 | ||
| R910908452 | COMPRESSION SPRING | 7 | ||
| R910714844 | INTERMEDIATE RING | 1 | ||
| 21 | R910941883 | SHIM RING | 1 | |
| R902650819 | TAPERED-ROLLER BEARING | 1 | ||
| R910715263 | CYL. ROLLER BEARING | 1 | ||
| 24 | R910941859 | SPACER SCREW | 1 | |
| R913029991 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910625051 | O-RINGD | 1 | ||
| R910127698 | RETAINING RING | 1 | ||
| R910083755 | RETAINING RING | 1 | ||
| R910715395 | SNAP RING | 1 | ||
| R910625604 | SHIM RING | 1 | ||
| 38 | R910625612 | SHIM RING | 1 | |
| R910625647 | SHIM RING | 2 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| 43 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
