Einheit · ADJUSTING PIECE
VERST. A7V 500 HD 10-45BARR910800666
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V500HD10-45BAR, Materialnummer R910800666.
- Nummer
- R910800666
- Typschlüssel
- VERST. A7V 500 HD 10-45BAR
- Gruppe
- A7V 500
- Ausgabe
- 06/2020

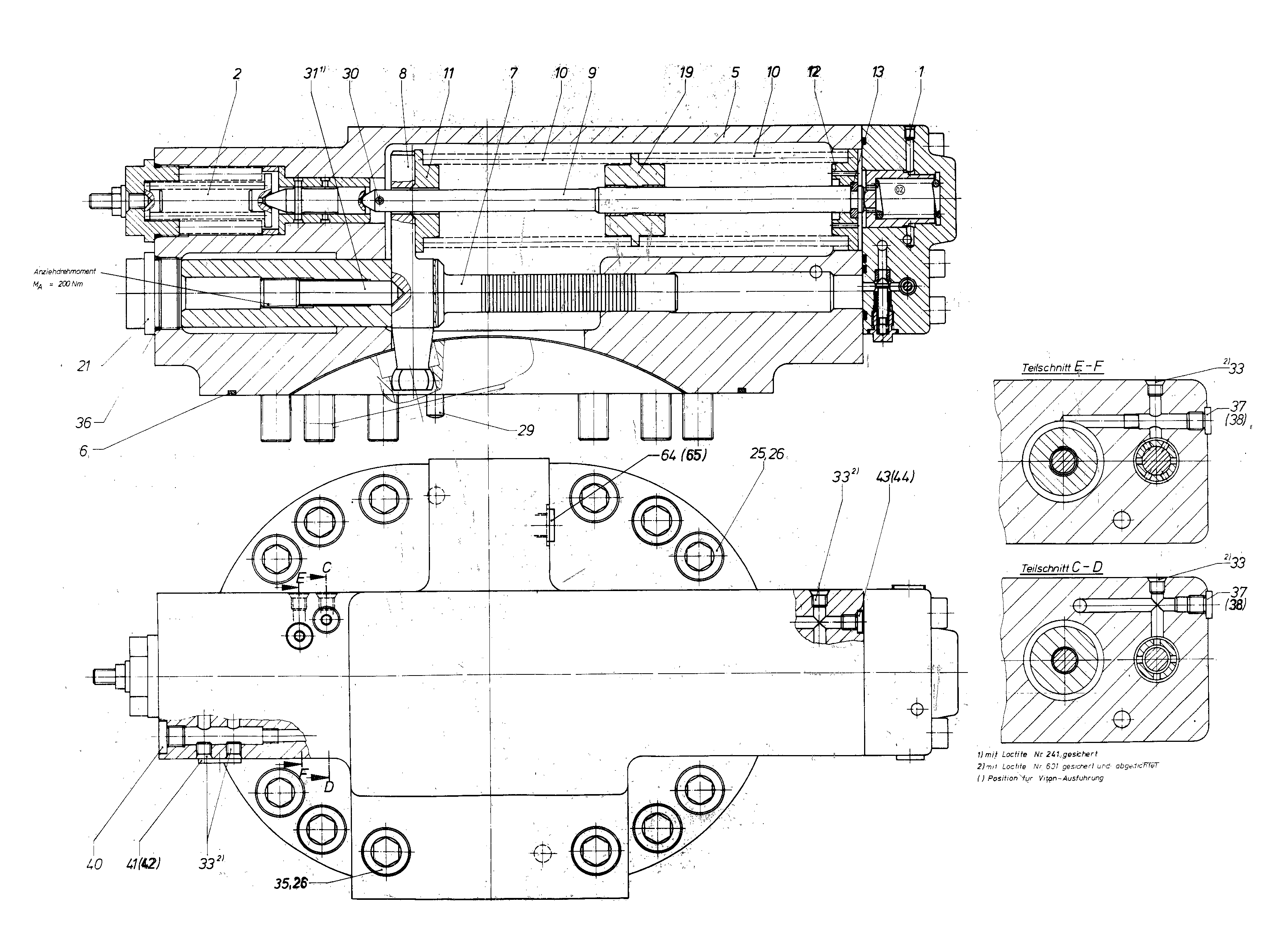

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910849286 | COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R910836133 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| R910803871 | COVER PLATE | 1 | ||
| 6 | R910801399 | O-RINGD | 1 | |
| R910841994 | POSITIONING PISTON | 1 | ||
| 8 | R902413796 | POSITIONING STUD | 1 | |
| R910596752 | GUIDE ROD | 1 | ||
| R910596779 | COMPRESSION SPRING | 2 | ||
| 11 | R910582468 | SPRING DISK | 1 | |
| R910582476 | SPRING DISK | 1 | ||
| 13 | R910582743 | RING | 2 | |
| R910596728 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | ||
| 21 | R910583758 | SCREW PLUG | 2 | |
| R910705799 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100838 | SPRING LOCK WASHER | 12 | ||
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| R910529206 | SLOTTED SPRING PIN | 1 | ||
| 31 | R902533059 | SETSCREW | 1 | |
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 3 | |
| 35 | R910801402 | SOCKET HEAD CAP SCREW | 2 | |
| 36 | R910586897 | O-RINGD | 1 | |
| 37 | R909151692 | SCREW PLUGD | 2 | |
| R909151979 | SCREW PLUGD | 1 | ||
| 41 | R909151694 | SCREW PLUGD | 1 | |
| 43 | R909153364 | SCREW PLUGD | 1 | |
| 64 | R909153816 | SCREW PLUGD | 1 |
