Einheit · STROKE LIMITER
MECH.HUB. A7V 500 DR VR910803230
Axialkolbenpumpe Bosch Rexroth Baureihe A7V, Typschlüssel MECH.HUB.A7V500DRV, Materialnummer R910803230.
- Nummer
- R910803230
- Typschlüssel
- MECH.HUB. A7V 500 DR V
- Gruppe
- A7V 500
- Ausgabe
- 06/2020

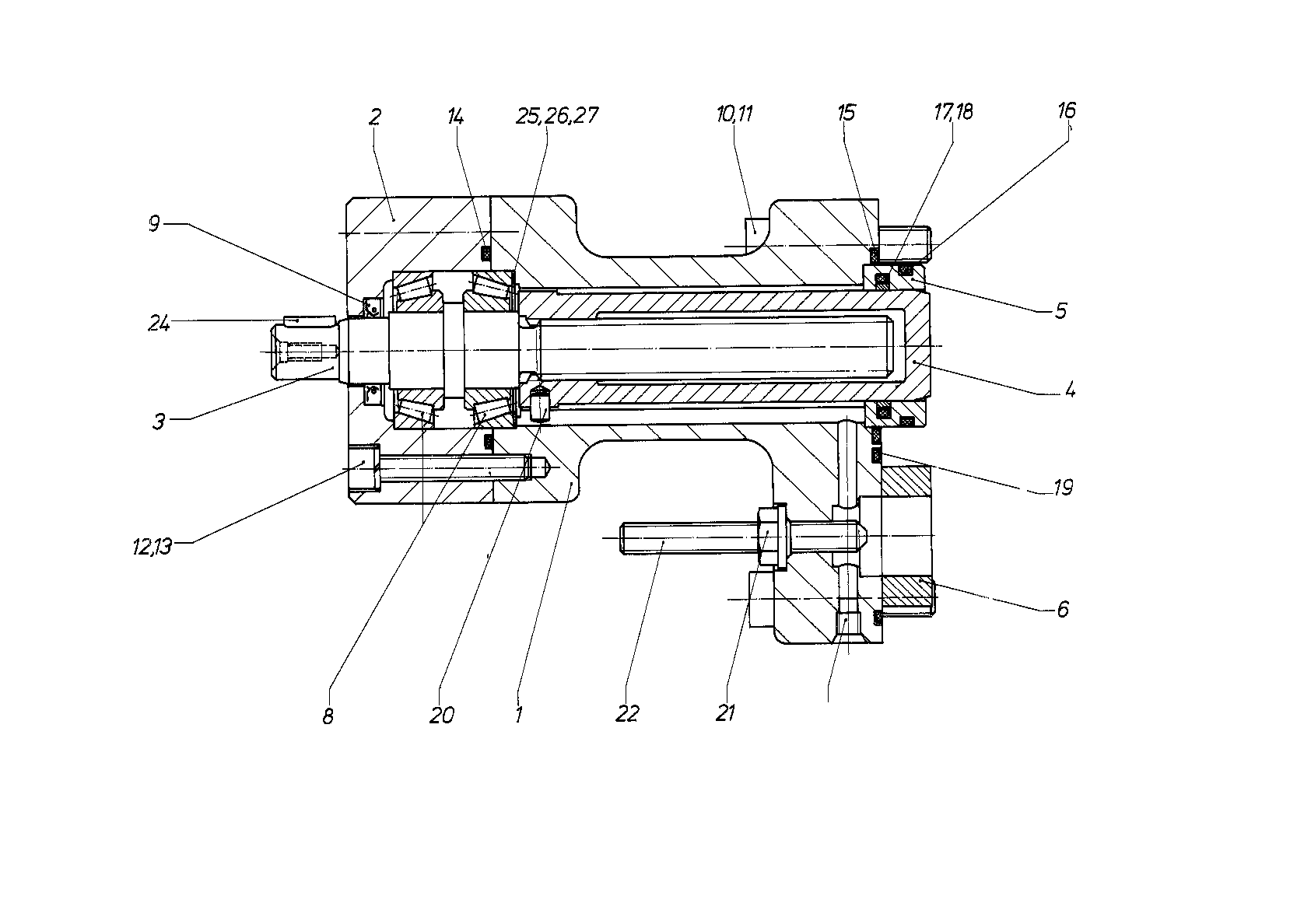

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910582158 | CONTROL HOUSING | 1 | |
| R910582581 | COVER | 1 | ||
| 3 | R910582638 | ADJUSTMENT SPINDLE | 1 | |
| R910582522 | CONTROL SLEEVE | 1 | ||
| 5 | R910582948 | INTERMEDIATE RING | 1 | |
| R910582921 | SHIM RING | 1 | ||
| R910101397 | TAPERED-ROLLER BEARING | 2 | ||
| 9 | R910900853 | SHAFT SEALING RINGD | 1 | |
| 10 | R910109819 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R910100773 | SPRING LOCK WASHER | 4 | |
| 12 | R910109525 | SOCKET HEAD CAP SCREW | 8 | |
| 13 | R910100757 | SPRING LOCK WASHER | 8 | |
| 14 | R910938777 | O-RINGD | 1 | |
| 15 | R910973109 | O-RINGD | 1 | |
| R910930423 | O-RINGD | 1 | ||
| 17 | R910900855 | O-RINGD | 1 | |
| 18 | R910585343 | DUMMYD | 1 | |
| 19 | R910973241 | O-RINGD | 1 | |
| R910585351 | STRAIGHT PIN | 1 | ||
| 21 | R909152426 | SEALING NUTD | 1 | |
| R910585378 | SETSCREW | 1 | ||
| 23 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910114707 | PARALLEL KEY | 1 | ||
| R910585335 | SHIM RING | 1 | ||
| R910635022 | SHIM RING | 2 | ||
| R910635014 | SHIM RING | 1 |
