Einheit · CONTROL
V VERST.A7V 500 HD + FR910803666
Regler Bosch Rexroth Baureihe A7V, Typschlüssel VVERST.A7V500HD+F, Materialnummer R910803666.
- Nummer
- R910803666
- Typschlüssel
- V VERST.A7V 500 HD + F
- Gruppe
- A7V 500
- Ausgabe
- 07/2020

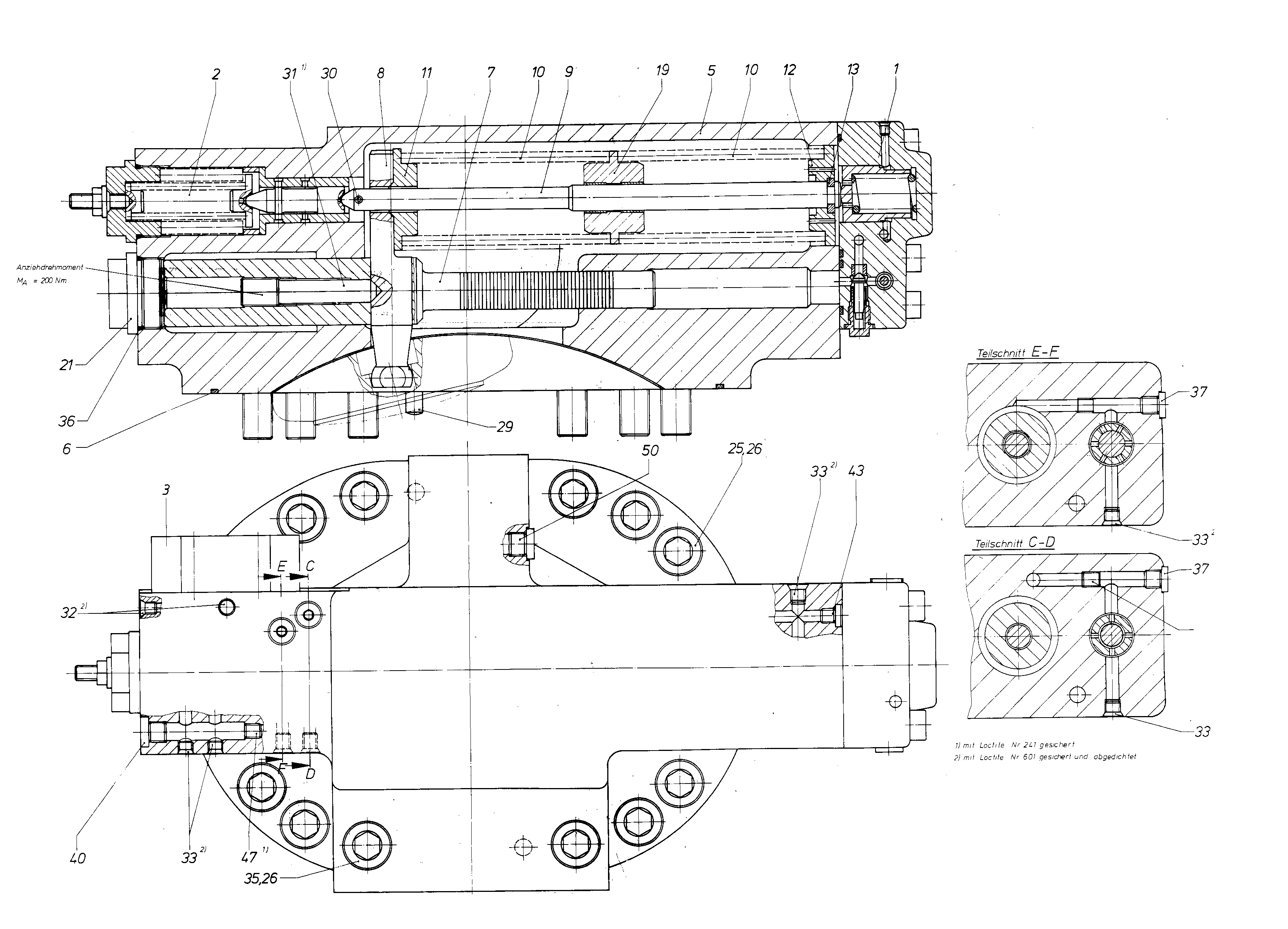

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910849286 | COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R910836133 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 3 | R910803616 | CONNECTING PIECE | 1 | |
| 5 | R910801232 | COVER PLATE | 1 | |
| 6 | R910801399 | O-RINGD | 1 | |
| 7 | R910841994 | POSITIONING PISTON | 1 | |
| 8 | R902413796 | POSITIONING STUD | 1 | |
| 9 | R910596752 | GUIDE ROD | 1 | |
| R910596779 | COMPRESSION SPRING | 2 | ||
| 11 | R910582468 | SPRING DISK | 1 | |
| R910582476 | SPRING DISK | 1 | ||
| 13 | R910582743 | RING | 1 | |
| 16 | R910507431 | THROTTLE SCREW | 1 | |
| R910596728 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | ||
| 21 | R910583758 | SCREW PLUG | 1 | |
| R910705799 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100838 | SPRING LOCK WASHER | 12 | ||
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| R910529206 | SLOTTED SPRING PIN | 1 | ||
| R902533059 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910801402 | SOCKET HEAD CAP SCREW | 2 | ||
| 36 | R910586897 | O-RINGD | 1 | |
| R909151692 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 43 | R909153364 | SCREW PLUGD | 1 | |
| R910118621 | SETSCREW | 1 | ||
| 65 | R909153816 | SCREW PLUGD | 1 |
