Einheit · CONTROL

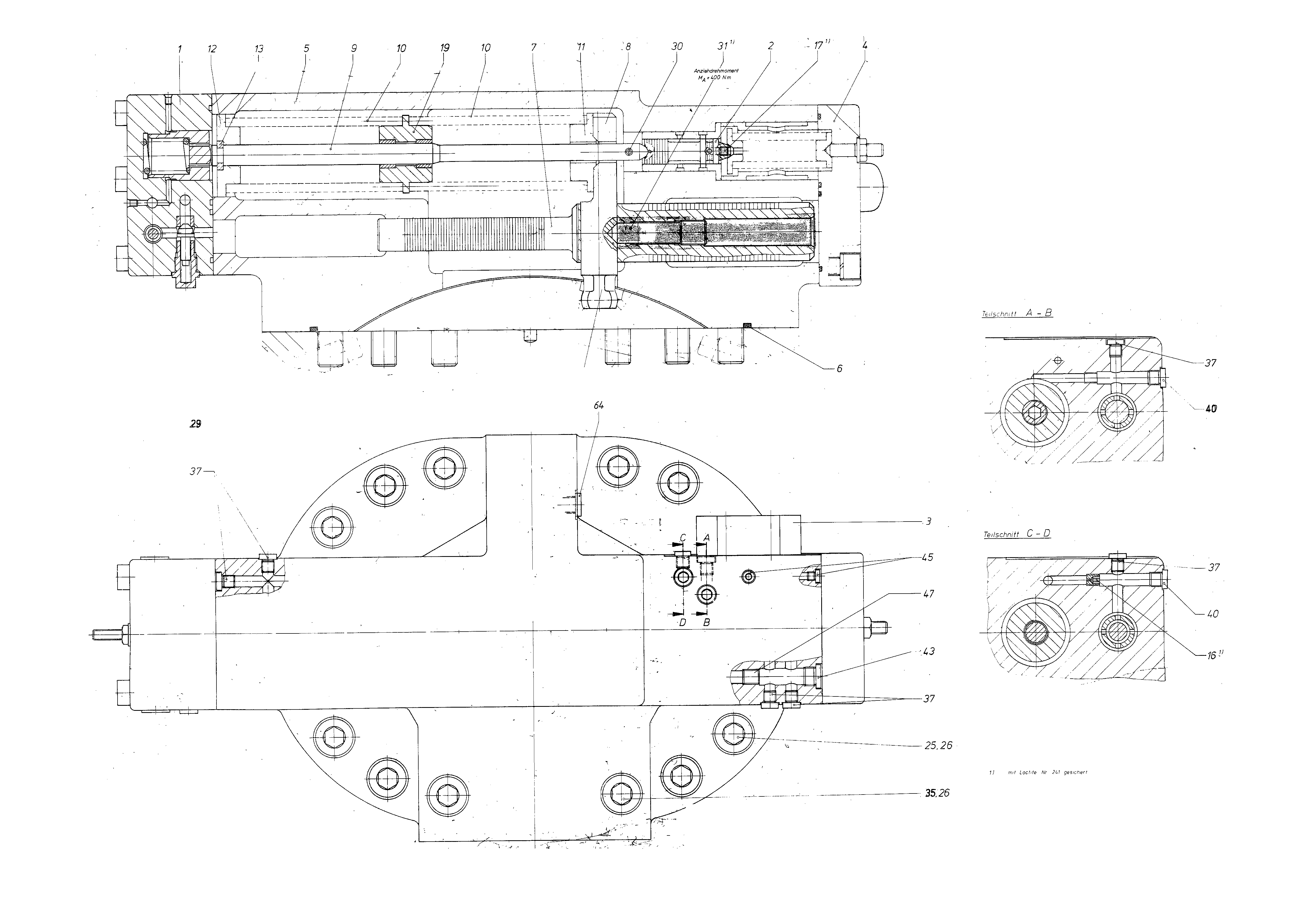

V A7V 1000 HD+D FERNGEST.R910803750
Regler Bosch Rexroth Baureihe A7V, Typschlüssel VA7V1000HD+DFERNGEST., Materialnummer R910803750.
- Nummer
- R910803750
- Typschlüssel
- V A7V 1000 HD+D FERNGEST.
- Gruppe
- A7V 1000
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910845868 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910848832 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910803616 | CONNECTING PIECE | 1 | ||
| R910805556 | COVER Stückliste der Baugruppe →L | 1 | ||
| 41 | R910596949 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | |
| 50 | R910810053 | COVER PLATE | 1 | |
| 50 | R910841803 | POSITIONING PISTON | 1 | |
| 50 | R902414363 | POSITIONING STUD | 1 | |
| 50 | R910590304 | GUIDE ROD | 1 | |
| 51 | R910596981 | COMPRESSION SPRING | 2 | |
| 51 | R910590282 | SPRING DISK | 1 | |
| 51 | R910590274 | SPRING DISK | 1 | |
| 51 | R910590207 | RING | 1 | |
| 51 | R910843571 | THROTTLE SCREW | 1 | |
| 51 | R910825654 | THROTTLE SCREW | 1 | |
| 53 | R902533060 | SETSCREW | 1 | |
| 60 | R910544752 | O-RINGD | 1 | |
| 62 | R910414751 | SOCKET HEAD CAP SCREW | 10 | |
| 62 | R910100846 | SPRING LOCK WASHER | 12 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910672009 | SLOTTED SPRING PIN | 1 | |
| 63 | R910579947 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R909151692 | SCREW PLUGD | 7 | |
| R909151979 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R910803383 | SETSCREW | 1 | ||
| 66 | R909153816 | SCREW PLUGD | 1 |
