Einheit · ADJUSTING PIECE
VERST. A7V 500 LV HUBBEGR.R910818631
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V500LVHUBBEGR., Materialnummer R910818631.
- Nummer
- R910818631
- Typschlüssel
- VERST. A7V 500 LV HUBBEGR.
- Gruppe
- A7V 500
- Ausgabe
- 06/2020

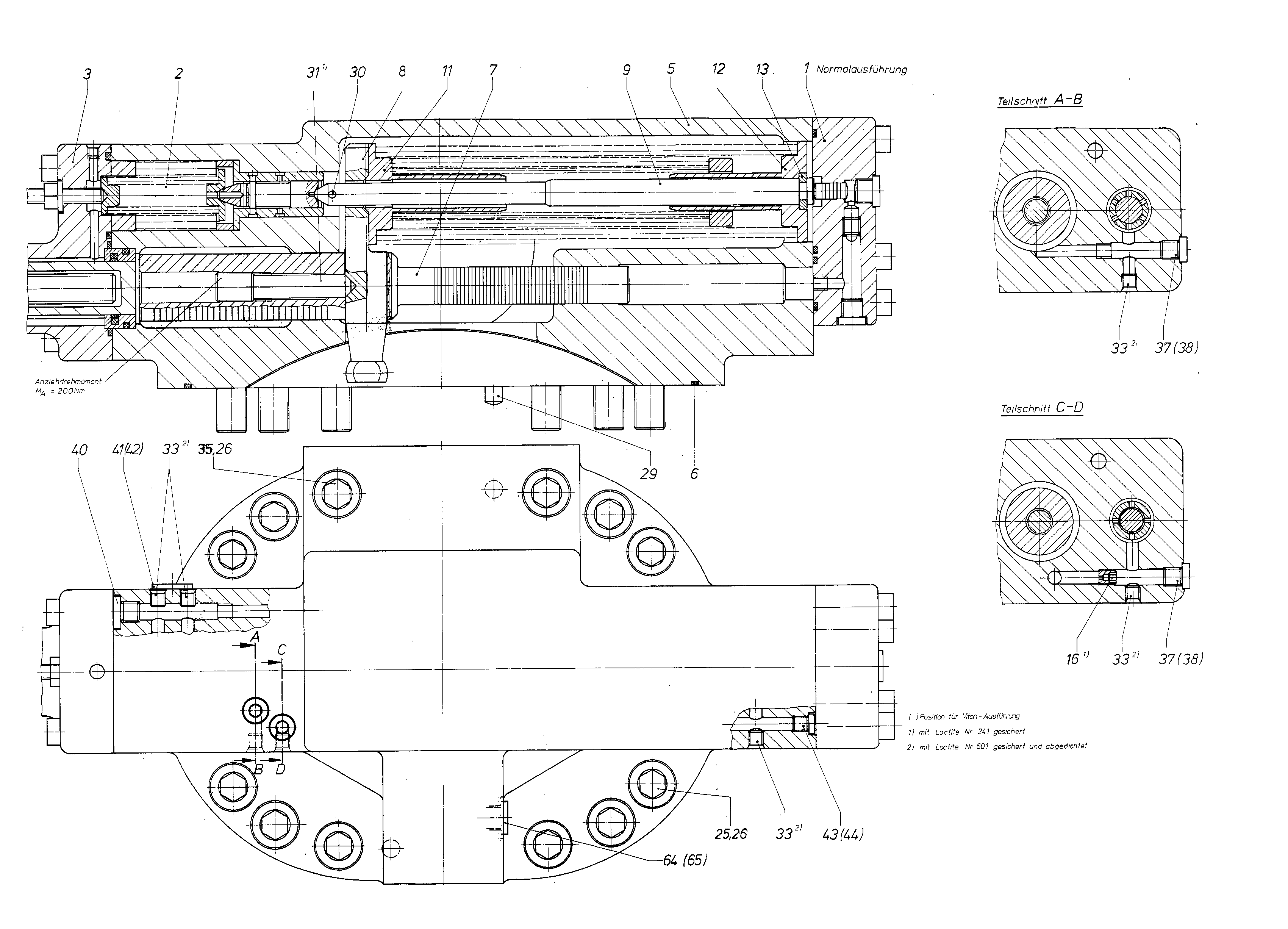

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910594784 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910594792 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910585319 | STROKE LIMITER Stückliste der Baugruppe →L | 1 | ||
| 50 | R910810479 | COVER PLATE | 1 | |
| 50 | R910841994 | POSITIONING PISTON | 1 | |
| 50 | R902413796 | POSITIONING STUD | 1 | |
| 50 | R910596752 | GUIDE ROD | 1 | |
| 51 | R910802522 | SPRING BUSH | 1 | |
| 51 | R910802549 | SPRING BUSH | 1 | |
| 51 | R910582743 | RING | 1 | |
| 51 | R910505277 | THROTTLE SCREW | 1 | |
| 53 | R902533059 | SETSCREW | 1 | |
| 60 | R910801399 | O-RINGD | 1 | |
| 62 | R910705799 | SOCKET HEAD CAP SCREW | 10 | |
| 62 | R910100838 | SPRING LOCK WASHER | 12 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910529206 | SLOTTED SPRING PIN | 1 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 3 | |
| 63 | R910801402 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R909151692 | SCREW PLUGD | 2 | |
| R909151979 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| 66 | R909153816 | SCREW PLUGD | 1 |
