Einheit · ADJUSTING PIECE
VERST. A7V 500 DR EL FERNGESTR910845388
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V500DRELFERNGEST, Materialnummer R910845388.
- Nummer
- R910845388
- Typschlüssel
- VERST. A7V 500 DR EL FERNGEST
- Gruppe
- A7V 500
- Ausgabe
- 06/2020

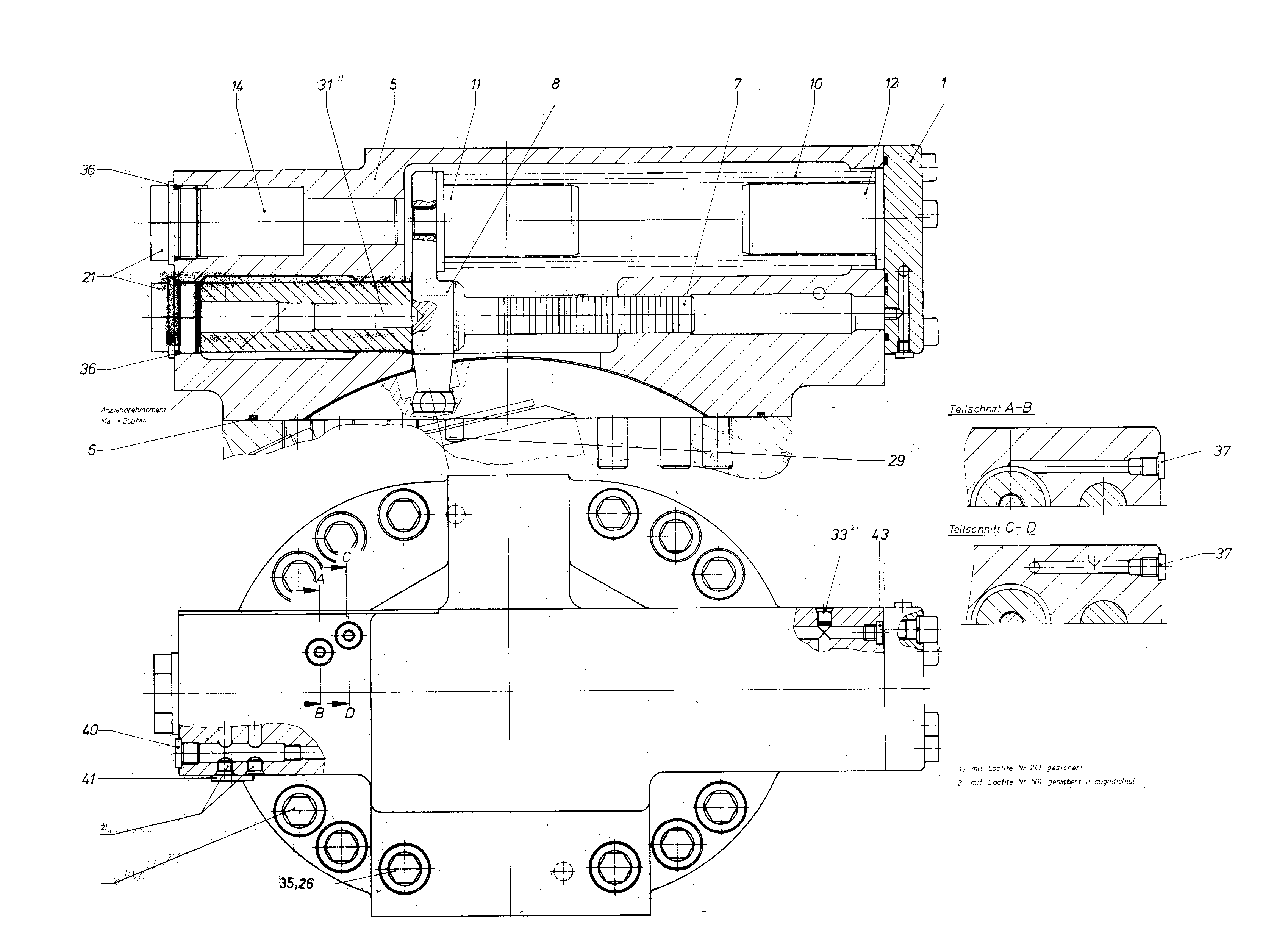

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910597171 | COVER Stückliste der Baugruppe →L | 1 | ||
| 5 | R910835722 | COVER PLATE | 1 | |
| R910841994 | POSITIONING PISTON | 1 | ||
| 8 | R902413796 | POSITIONING STUD | 1 | |
| R910582085 | COMPRESSION SPRING | 1 | ||
| 11 | R910801356 | SPRING BUSH | 1 | |
| R910801348 | SPRING BUSH | 1 | ||
| 13 | R910582859 | PLUG | 1 | |
| 21 | R910583758 | SCREW PLUG | 2 | |
| 25 | R910705799 | SOCKET HEAD CAP SCREW | 10 | |
| R910100838 | SPRING LOCK WASHER | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| 31 | R902533059 | SETSCREW | 1 | |
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 2 | |
| R910801402 | SOCKET HEAD CAP SCREW | 2 | ||
| R910586897 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| 40 | R909151979 | SCREW PLUGD | 1 | |
| 41 | R909151694 | SCREW PLUGD | 1 | |
| 43 | R909153364 | SCREW PLUGD | 1 |
