Einheit · ADJUSTING PIECE
VERST. A7V 500 LV+D FERNGEST.-SR910845558
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V500LV+DFERNGEST.-S, Materialnummer R910845558.
- Nummer
- R910845558
- Typschlüssel
- VERST. A7V 500 LV+D FERNGEST.-S
- Gruppe
- A7V 500
- Ausgabe
- 06/2020

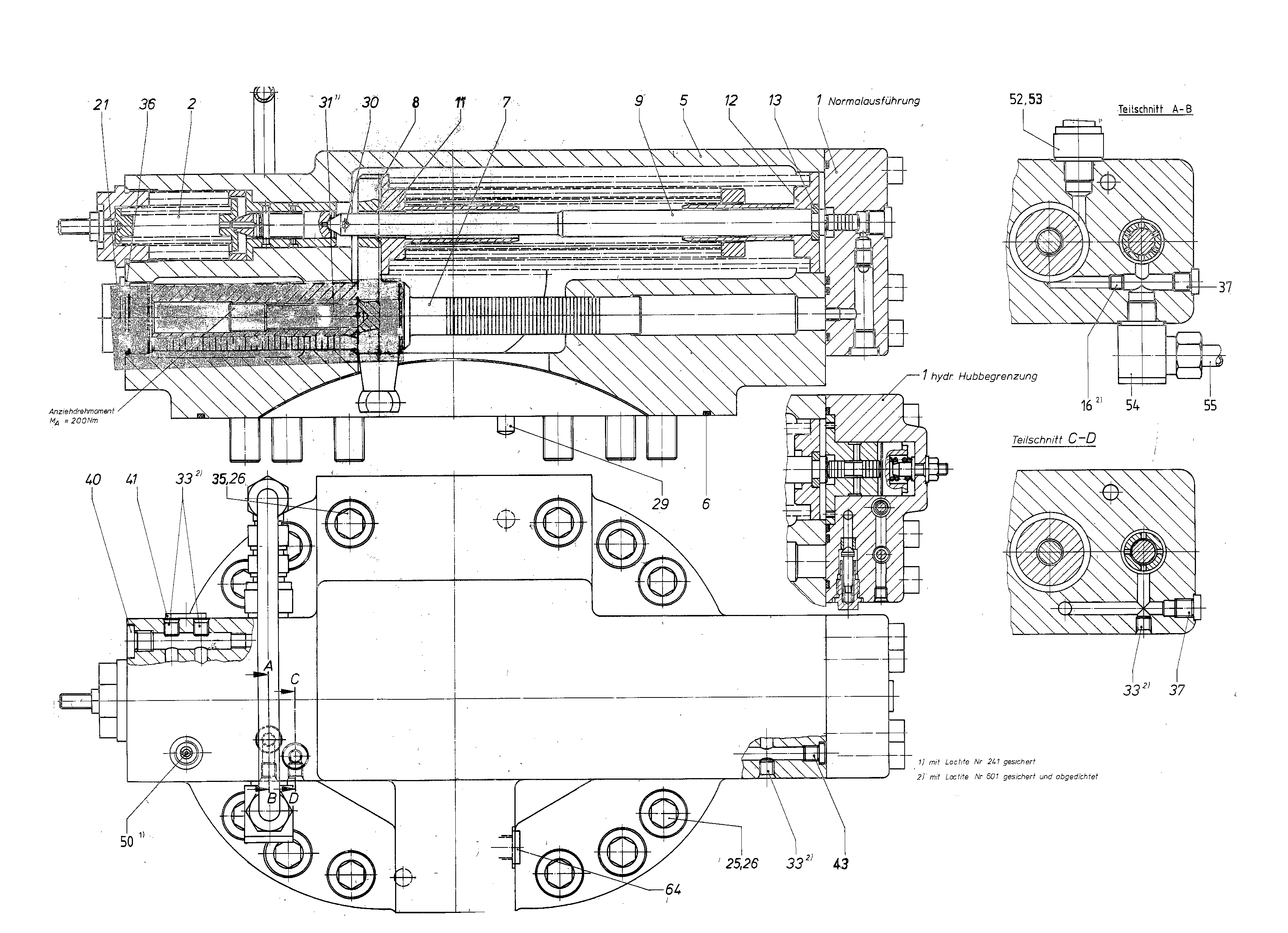

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910594784 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910588547 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910845523 | COVER PLATE | 1 | ||
| R910801399 | O-RINGD | 1 | ||
| R910841994 | POSITIONING PISTON | 1 | ||
| 8 | R902413796 | POSITIONING STUD | 1 | |
| 9 | R910596752 | GUIDE ROD | 1 | |
| 11 | R910802522 | SPRING BUSH | 1 | |
| R910802549 | SPRING BUSH | 1 | ||
| R910582743 | RING | 1 | ||
| 16 | R910118621 | SETSCREW | 1 | |
| 21 | R910583758 | SCREW PLUG | 1 | |
| R910705799 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100838 | SPRING LOCK WASHER | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910529206 | SLOTTED SPRING PIN | 1 | ||
| R902533059 | SETSCREW | 1 | ||
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 3 | |
| 35 | R910801402 | SOCKET HEAD CAP SCREW | 2 | |
| R910586897 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 41 | R909151694 | SCREW PLUGD | 1 | |
| R909153364 | SCREW PLUGD | 1 | ||
| 50 | R910582883 | THROTTLE SCREW | 1 | |
| R910395005 | CHECK VALVE | 1 | ||
| R910585408 | THREADED FASTENER | 1 | ||
| R910796573 | THREADED FASTENER | 1 | ||
| R910585416 | PIPEMYANMAR | 420 | ||
| R909153816 | SCREW PLUGD | 1 |
