Einheit · ADJUSTING PIECE

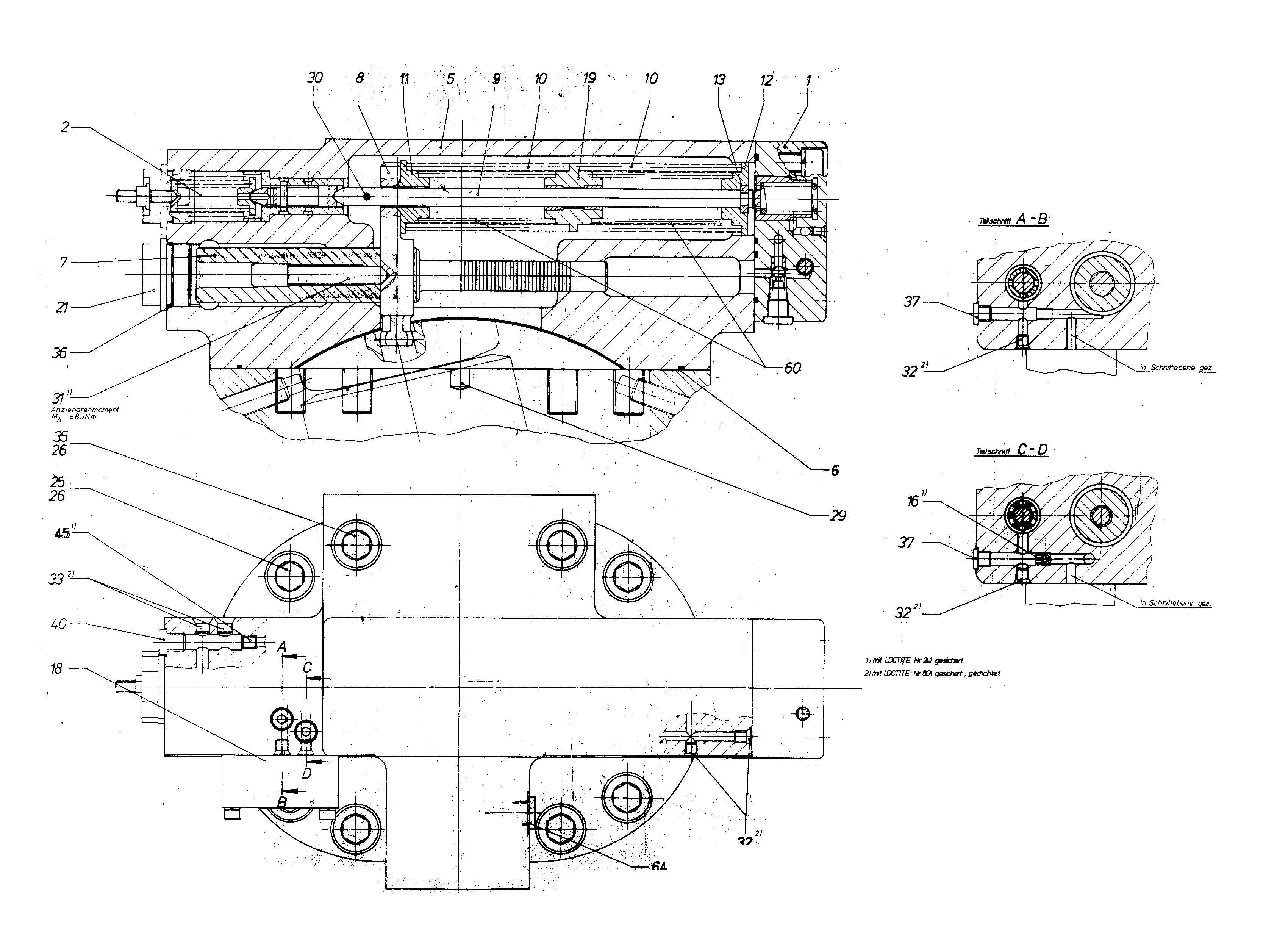

VERST. A7V 250 EL+D RE. FERNGEST.R910848972
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V250EL+DRE.FERNGEST., Materialnummer R910848972.
- Nummer
- R910848972
- Typschlüssel
- VERST. A7V 250 EL+D RE. FERNGEST.
- Gruppe
- A7V 250
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910848204 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910848271 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910848913 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591475 | GUIDE ROD | 1 | ||
| R910597015 | COMPRESSION SPRING | 2 | ||
| R910830135 | SPRING DISK | 1 | ||
| R910830127 | SPRING DISK | 1 | ||
| R910583855 | RING | 1 | ||
| R910578827 | THROTTLE SCREW | 1 | ||
| R910837555 | CONNECTING PIECE | 1 | ||
| R910830097 | SPRING GUIDE Stückliste der Baugruppe →L | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R910516481 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R910118664 | SETSCREW | 1 | ||
| R910829137 | COMPRESSION SPRING | 2 | ||
| R909153816 | SCREW PLUGD | 1 |
