Einheit · ADJUSTING PIECE

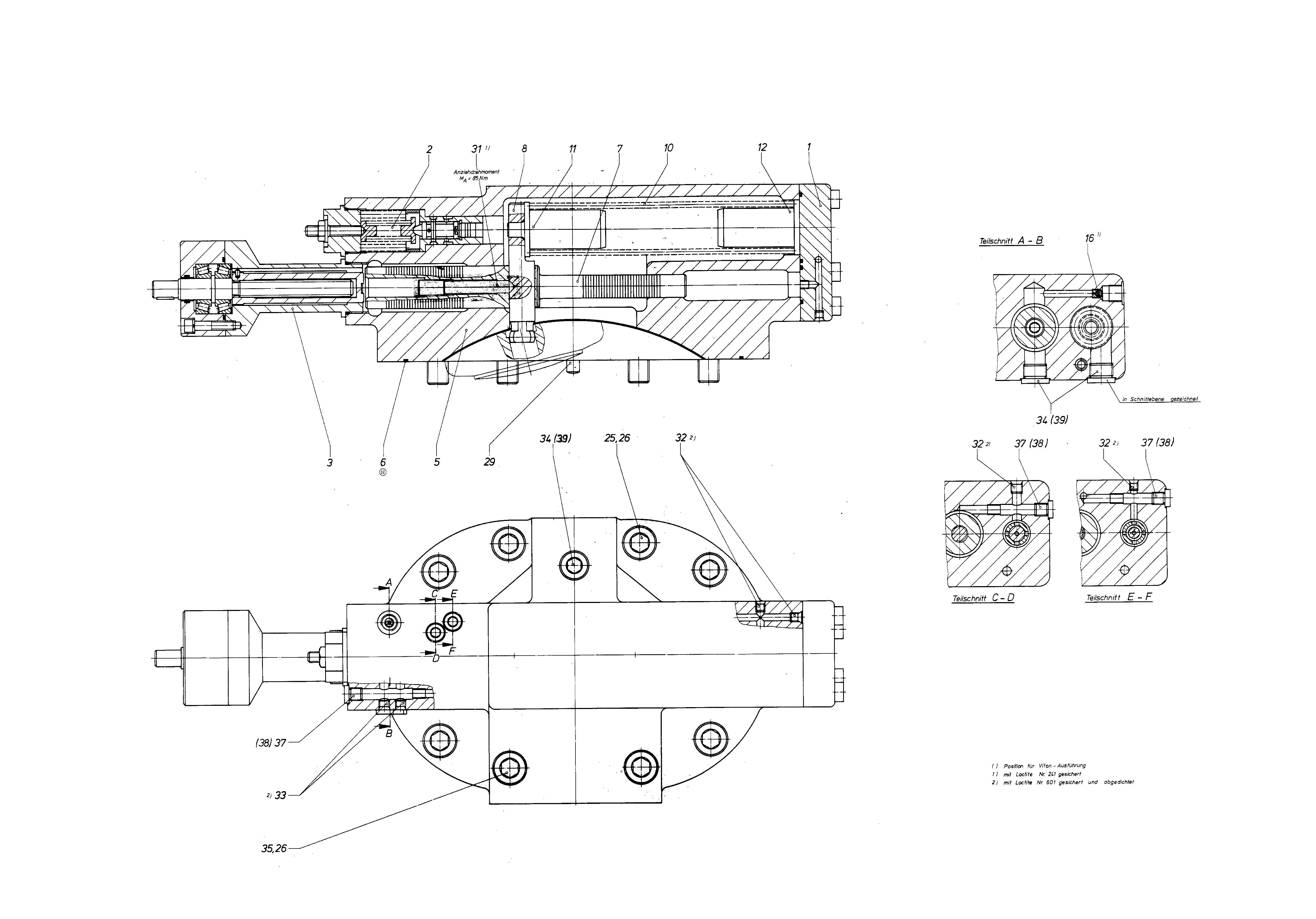

VERST. A7V 355 DR MECH.HUBBEGRENZUNGR910850438
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V355DRMECH.HUBBEGRENZUNG, Materialnummer R910850438.
- Nummer
- R910850438
- Typschlüssel
- VERST. A7V 355 DR MECH.HUBBEGRENZUNG
- Gruppe
- A7V 355
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910587486 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910595454 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910599786 | STROKE LIMITER Stückliste der Baugruppe →L | 1 | ||
| 5 | R910802336 | COVER PLATE | 1 | |
| R910945102 | O-RINGD | 1 | ||
| R910842001 | POSITIONING PISTON | 1 | ||
| 8 | R902413797 | POSITIONING STUD | 1 | |
| R910585815 | COMPRESSION SPRING | 1 | ||
| 11 | R910802417 | SPRING BUSH | 1 | |
| R910802425 | SPRING BUSH | 1 | ||
| 16 | R910571261 | THROTTLE SCREW | 1 | |
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| 31 | R910807001 | SETSCREW | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 34 | R909151694 | SCREW PLUGD | 3 | |
| 35 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 37 | R909151692 | SCREW PLUGD | 3 |
