Einheit · ADJUSTING PIECE
VERST. A7V 250 LV EXT.REGELANSCHLUSSR910851426
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V250LVEXT.REGELANSCHLUSS, Materialnummer R910851426.
- Nummer
- R910851426
- Typschlüssel
- VERST. A7V 250 LV EXT.REGELANSCHLUSS
- Gruppe
- A7V 250
- Ausgabe
- 06/2020

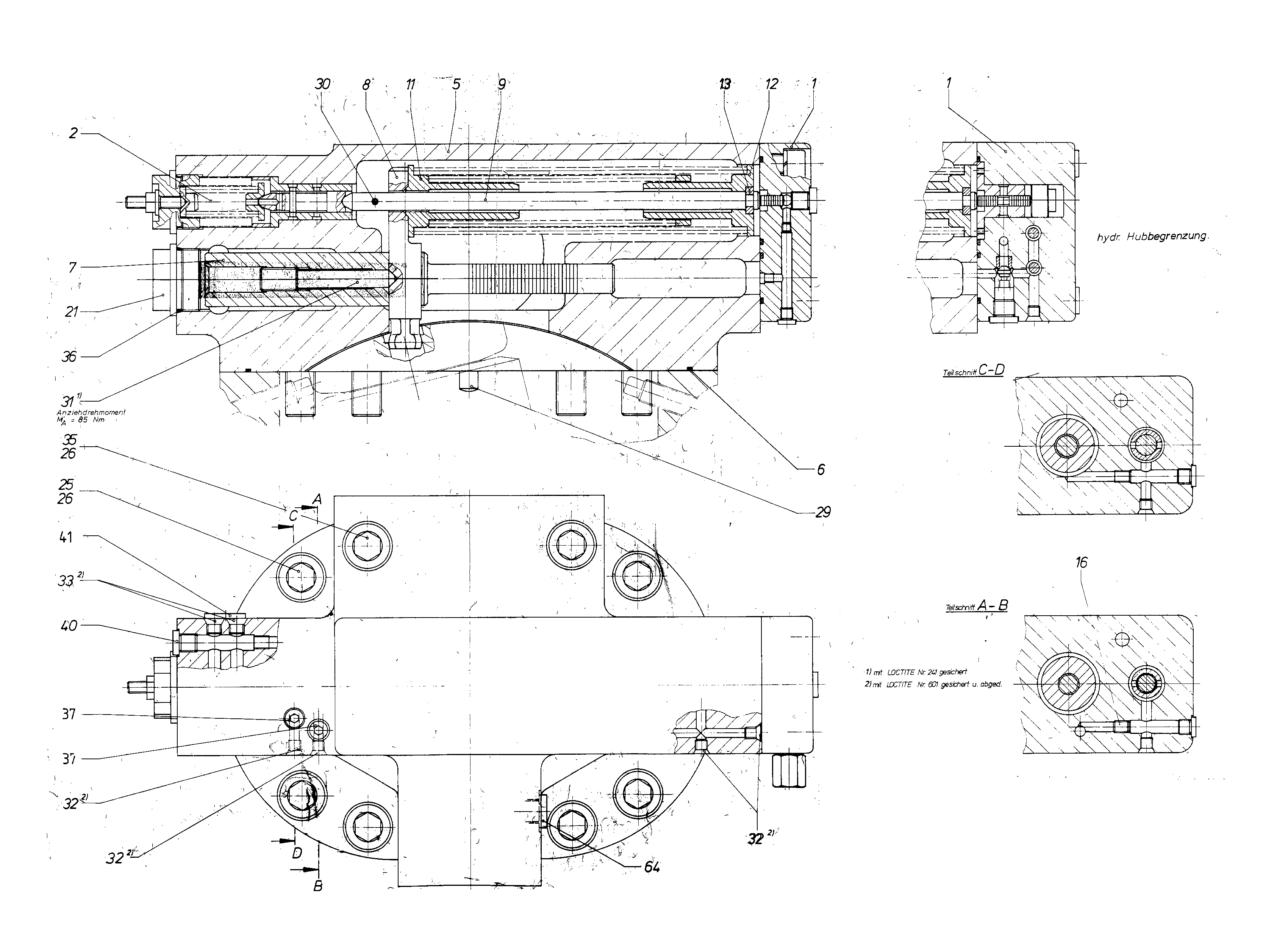

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910851396 | COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R910590762 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 5 | R910803723 | COVER PLATE | 1 | |
| 6 | R910945129 | O-RINGD | 1 | |
| 7 | R910841846 | POSITIONING PISTON | 1 | |
| R902413798 | POSITIONING STUD | 1 | ||
| 9 | R910591475 | GUIDE ROD | 1 | |
| 11 | R910803634 | SPRING BUSH | 1 | |
| 12 | R910803642 | SPRING BUSH | 1 | |
| 13 | R910583855 | RING | 1 | |
| R910578827 | THROTTLE SCREW | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| 25 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 26 | R910100838 | SPRING LOCK WASHER | 8 | |
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| 30 | R910977277 | SLOTTED SPRING PIN | 1 | |
| 31 | R910807001 | SETSCREW | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 35 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 36 | R910516481 | O-RINGD | 1 | |
| R909153364 | SCREW PLUGD | 2 | ||
| 40 | R909151692 | SCREW PLUGD | 1 | |
| 41 | R909151694 | SCREW PLUGD | 1 | |
| 64 | R909153816 | SCREW PLUGD | 1 |
