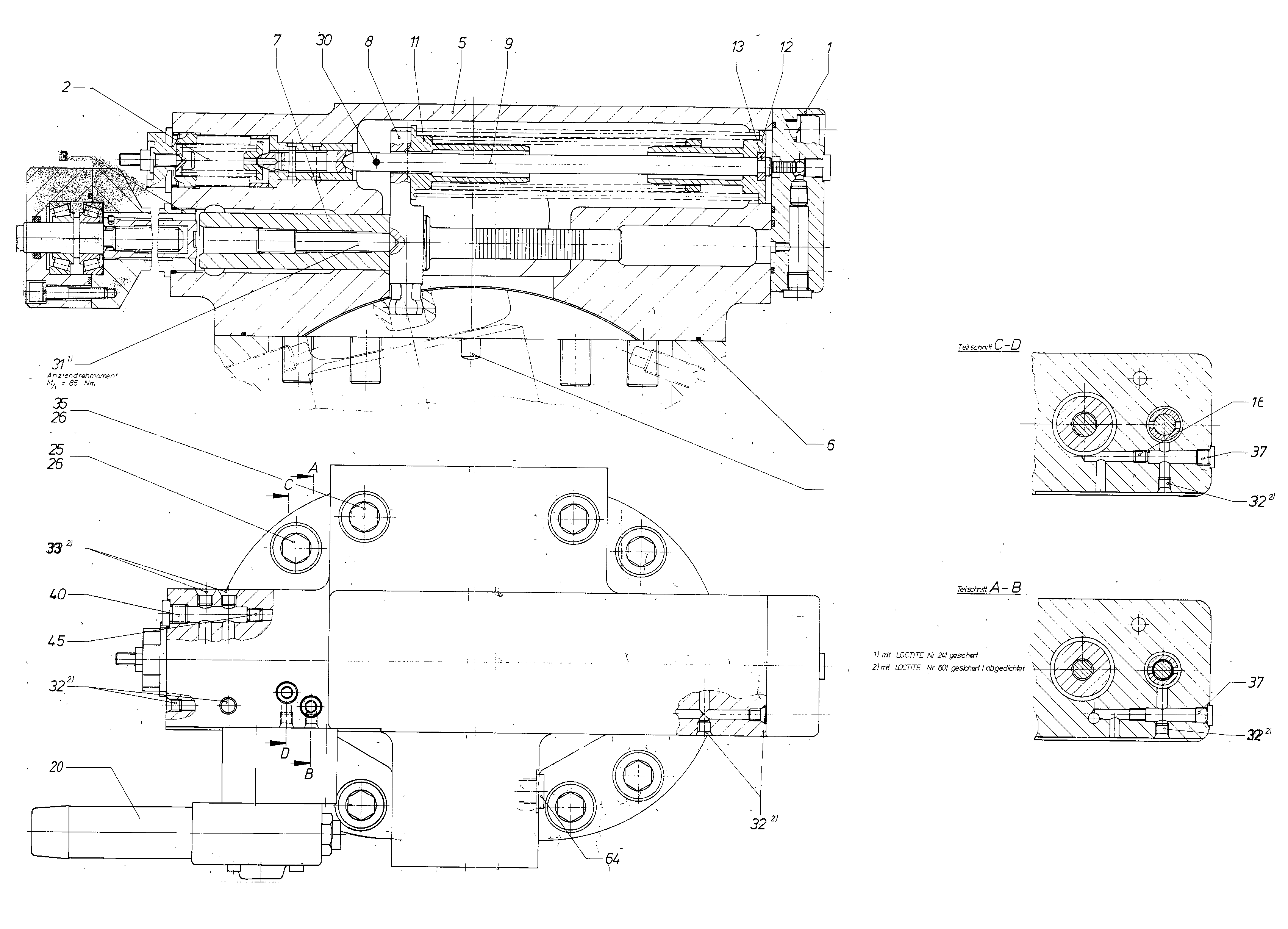

Einheit · ADJUSTING PIECE
VERST. A7V 250 LV+D MECH.HUBBEGR.LI.R910851523
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V250LV+DMECH.HUBBEGR.LI., Materialnummer R910851523.
- Nummer
- R910851523
- Typschlüssel
- VERST. A7V 250 LV+D MECH.HUBBEGR.LI.
- Gruppe
- A7V 250
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910590754 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910590762 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910599611 | STROKE LIMITER Stückliste der Baugruppe →L | 1 | ||
| R910810088 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591475 | GUIDE ROD | 1 | ||
| R910803634 | SPRING BUSH | 1 | ||
| R910803642 | SPRING BUSH | 1 | ||
| R910583855 | RING | 1 | ||
| 16 | R910842494 | THROTTLE SCREW | 1 | |
| R910804033 | VALVE BLOCK Stückliste der Baugruppe →L | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R910118664 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
