Einheit · ADJUSTING PIECE
VERST. A7V 355 DR EL FERNGESTR910856746
Verstellteil Bosch Rexroth Baureihe A7V, Typschlüssel VERST.A7V355DRELFERNGEST, Materialnummer R910856746.
- Nummer
- R910856746
- Typschlüssel
- VERST. A7V 355 DR EL FERNGEST
- Gruppe
- A7V 355
- Ausgabe
- 06/2020

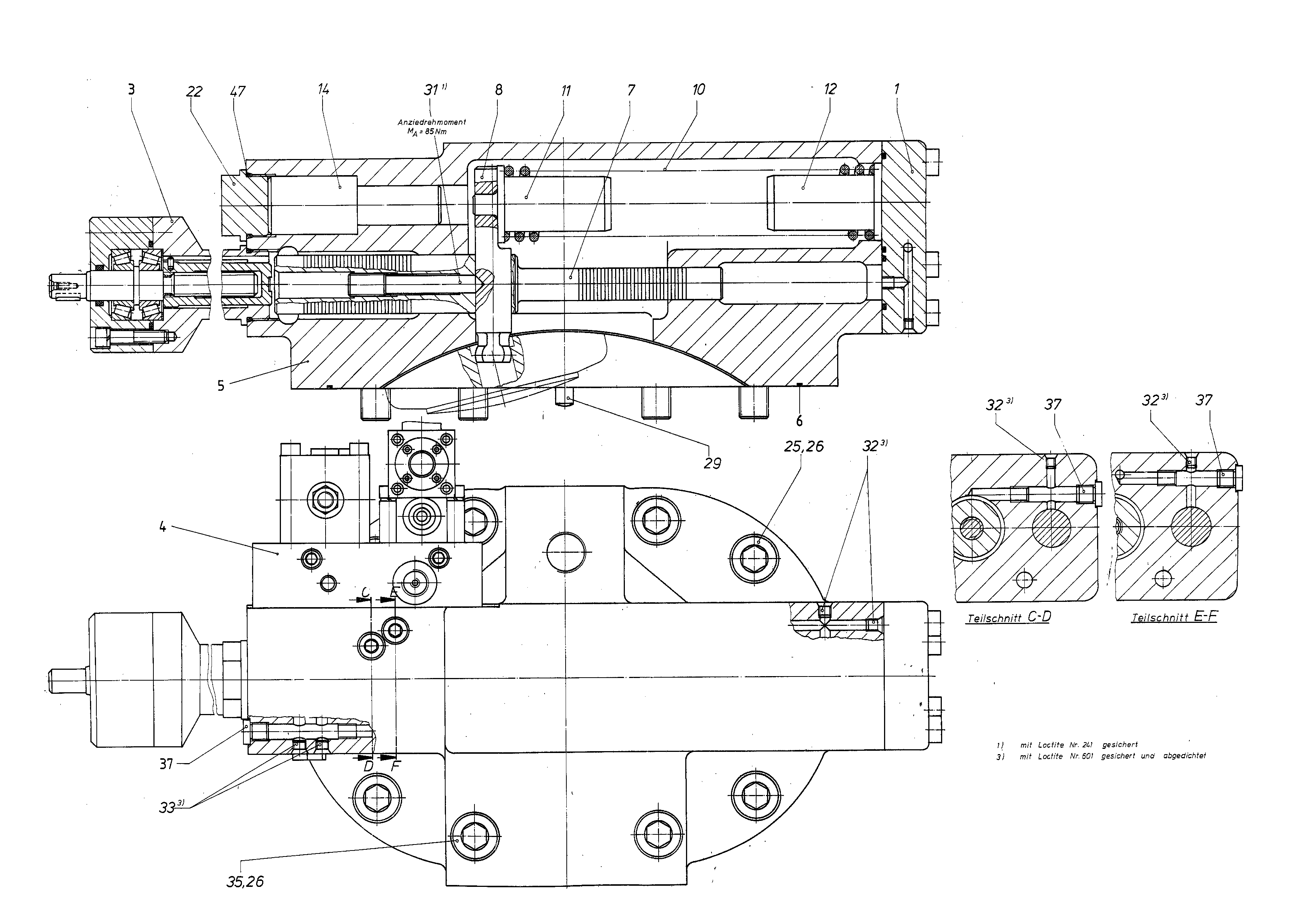

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910587486 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910599786 | STROKE LIMITER Stückliste der Baugruppe →L | 1 | ||
| R910836931 | CONNECTING BLOCK Stückliste der Baugruppe →L | 1 | ||
| R910835757 | COVER PLATE | 1 | ||
| 6 | R910945102 | O-RINGD | 1 | |
| R910842001 | POSITIONING PISTON | 1 | ||
| R902413797 | POSITIONING STUD | 1 | ||
| R910585815 | COMPRESSION SPRING | 1 | ||
| 11 | R910802417 | SPRING BUSH | 1 | |
| R910802425 | SPRING BUSH | 1 | ||
| R910588652 | PLUG | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| 31 | R910807001 | SETSCREW | 1 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R910516481 | O-RINGD | 1 |
