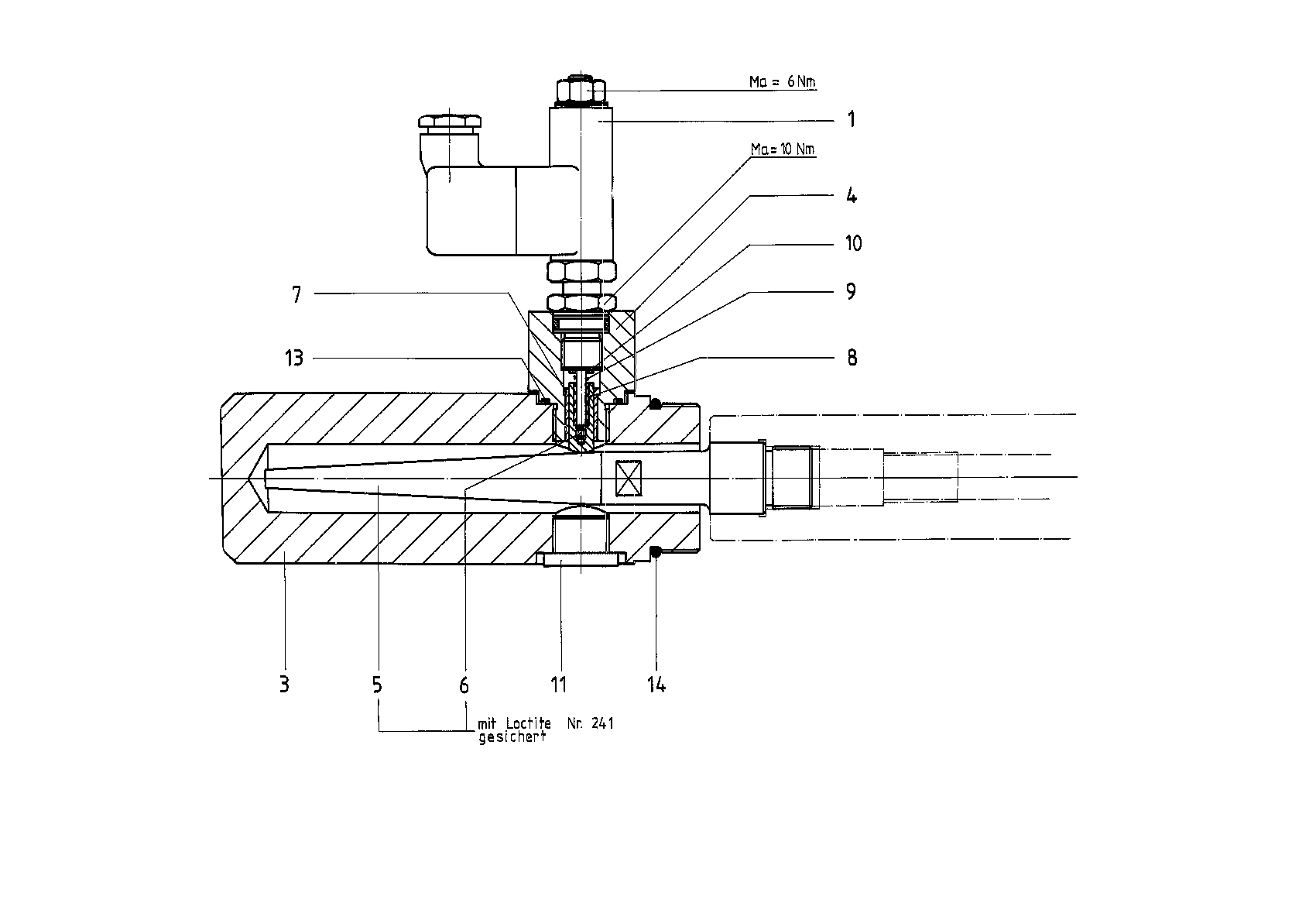

Einheit · INDUCTIVE DISPL. PICK-UP
WEGGEBER A7V355R910858919
Axialkolbenpumpe Bosch Rexroth Baureihe A7V, Typschlüssel WEGGEBERA7V355, Materialnummer R910858919.
- Nummer
- R910858919
- Typschlüssel
- WEGGEBER A7V355
- Gruppe
- A7V 355
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R901382785 | DISPLACEMENT SENS | 1 | |
| 3 | R910858676 | CONNECTING PIECE | 1 | |
| 4 | R910858684 | HOLDING FIXTURE | 1 | |
| R910858692 | TAPERED BOLT | 1 | ||
| R910800098 | GUIDE PIN | 1 | ||
| 7 | R910858617 | HEADED BUSH | 1 | |
| 8 | R910858609 | KEY PIN | 1 | |
| 9 | R910858633 | COMPRESSION SPRING | 1 | |
| R910513075 | WASHER | 1 | ||
| 11 | R909153815 | SCREW PLUGD | 3 | |
| R910679399 | O-RINGD | 1 | ||
| 14 | R910586897 | O-RINGD | 1 |
