Einheit · ROTARY GROUP
TW A7V-SL 250/R5PX GLRDR910906166

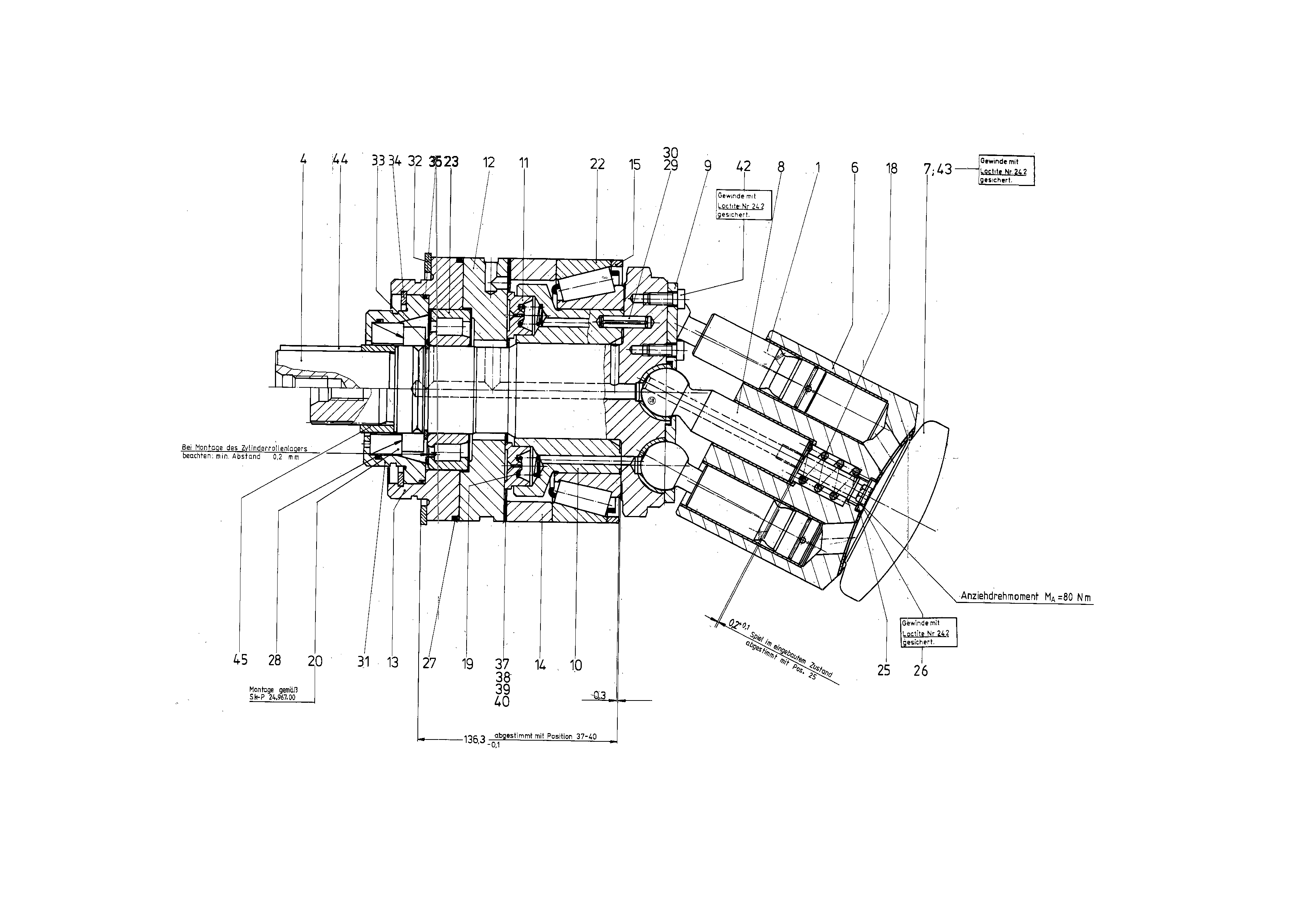

Triebwerk Bosch Rexroth Baureihe A7V, Typschlüssel TWA7V-SL250/R5PXGLRD, Materialnummer R910906166.
- Nummer
- R910906166
- Typschlüssel
- TW A7V-SL 250/R5PX GLRD
- Gruppe
- A7VSL 250
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910931241 | PISTON | 7 | ||
| R910913954 | DRIVE FLANGE | 1 | ||
| R910342971 | CYLINDER | 1 | ||
| R910851345 | CONTROL LENS | 1 | ||
| R910795135 | THRUST JOURNAL | 1 | ||
| R902566822 | RETAINING PLATE | 1 | ||
| R910715832 | PAD SUPPORT WITH SEAL | 1 | ||
| R910906308 | PAD | 7 | ||
| R910715859 | SLIDING DISC | 1 | ||
| R910903642 | SEALING FLANGE | 1 | ||
| R910715891 | SPACER RING | 1 | ||
| R910715867 | RING | 1 | ||
| R910678783 | COMPRESSION SPRING | 1 | ||
| R910717207 | COMPRESSION SPRING | 7 | ||
| R910915308 | SLIDE RING SEALD | 1 | ||
| R910717215 | TAPERED-ROLLER BEARING | 1 | ||
| R910717223 | CYL. ROLLER BEARING | 1 | ||
| R910942146 | ADJUSTMENT SHIM | 1 | ||
| R910941514 | SPACER SCREW | 1 | ||
| R910113689 | O-RINGD | 1 | ||
| R910080616 | O-RINGD | 1 | ||
| R910117676 | SLOTTED SPRING PIN | 1 | ||
| R910073598 | SLOTTED SPRING PIN | 1 | ||
| R910905098 | SEALING FLANGE | 1 | ||
| R910106151 | RETAINING RING | 1 | ||
| R910903298 | RETAINING RING | 1 | ||
| R910106127 | RETAINING RING | 1 | ||
| R910197637 | O-RINGD | 1 | ||
| R910239402 | SHIM RING | 1 | ||
| R910238775 | SHIM RING | 1 | ||
| R910226351 | SHIM RING | 2 | ||
| R910214434 | SHIM RING | 1 | ||
| R910584614 | SOCKET HEAD CAP SCREW | 14 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910906247 | PARALLEL KEY | 1 | ||
| R910906255 | SPACER RING | 1 |
