Einheit · CONTROL
V A7V O 250 LRGN /60LR910918603

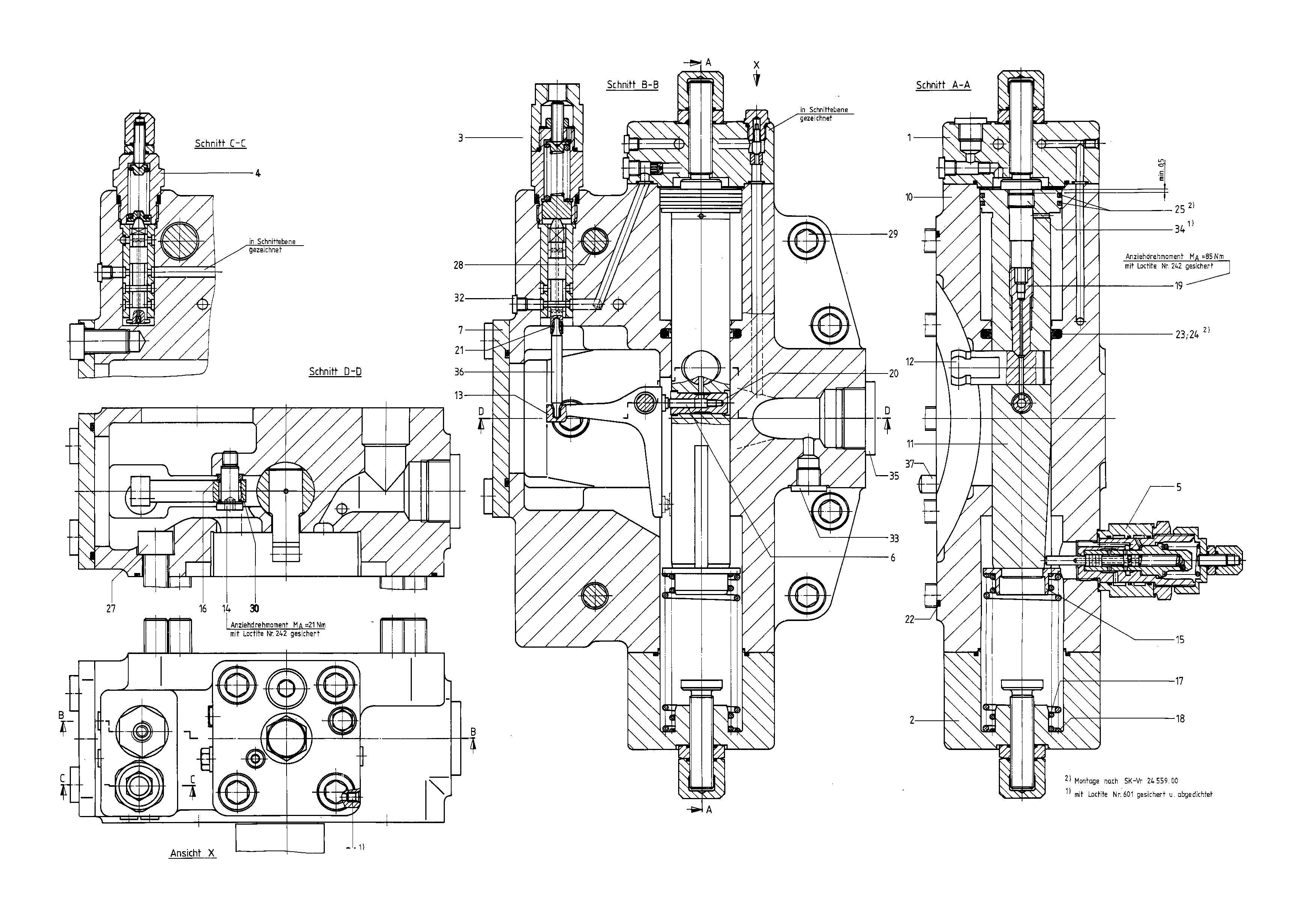

Regler Bosch Rexroth Baureihe A7VO, Typschlüssel VA7VO250LRGN/60L, Materialnummer R910918603. Nenngröße: NG 250.
- Nummer
- R910918603
- Typschlüssel
- V A7V O 250 LRGN /60L
- Gruppe
- A7VO 250
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910918594 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910918591 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910918565 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R910918586 | CONTROL VALVE Stückliste der Baugruppe →L | 1 | ||
| R910918582 | PILOT VALVE Stückliste der Baugruppe →L | 1 | ||
| R902541214 | PISTON PAD | 1 | ||
| R910918561 | BLANK FLANGE Stückliste der Baugruppe →L | 1 | ||
| R910918558 | COVER PLATE | 1 | ||
| R910918556 | POSITIONING PISTON | 1 | ||
| R902413803 | POSITIONING STUD | 1 | ||
| R910922096 | LEVER | 1 | ||
| R910921037 | STUD BOLT | 1 | ||
| R910909485 | SPRING DISK | 1 | ||
| R910912065 | WASHER | 1 | ||
| R910909214 | COMPRESSION SPRING | 1 | ||
| R910909215 | COMPRESSION SPRING | 1 | ||
| R902538789 | SETSCREW | 1 | ||
| R910997327 | BUSHING | 1 | ||
| R910907170 | O-RINGD | 1 | ||
| R910905253 | O-RINGD | 1 | ||
| R910907799 | ROD SEALD | 1 | ||
| R910514942 | O-RINGD | 1 | ||
| R910907604 | RECTANGULAR RINGD | 2 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 1 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R910909603 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909154024 | SCREW PLUGD | 6 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R910921034 | CONNECTING ROD | 1 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| 38 | R909156493 | NOZZLE | 1 |
Parameter aus dem Typschlüssel
| Position | Bedeutung | Code |
|---|---|---|
| Schrägachsenbauart, verstellbar, Nenndruck 350 bar, Spitzendruck 400 bar | A7V | |
| 250 | 250 | |
| mit Druckregelung, fernverstellbar | LRG | |
| links | L |
