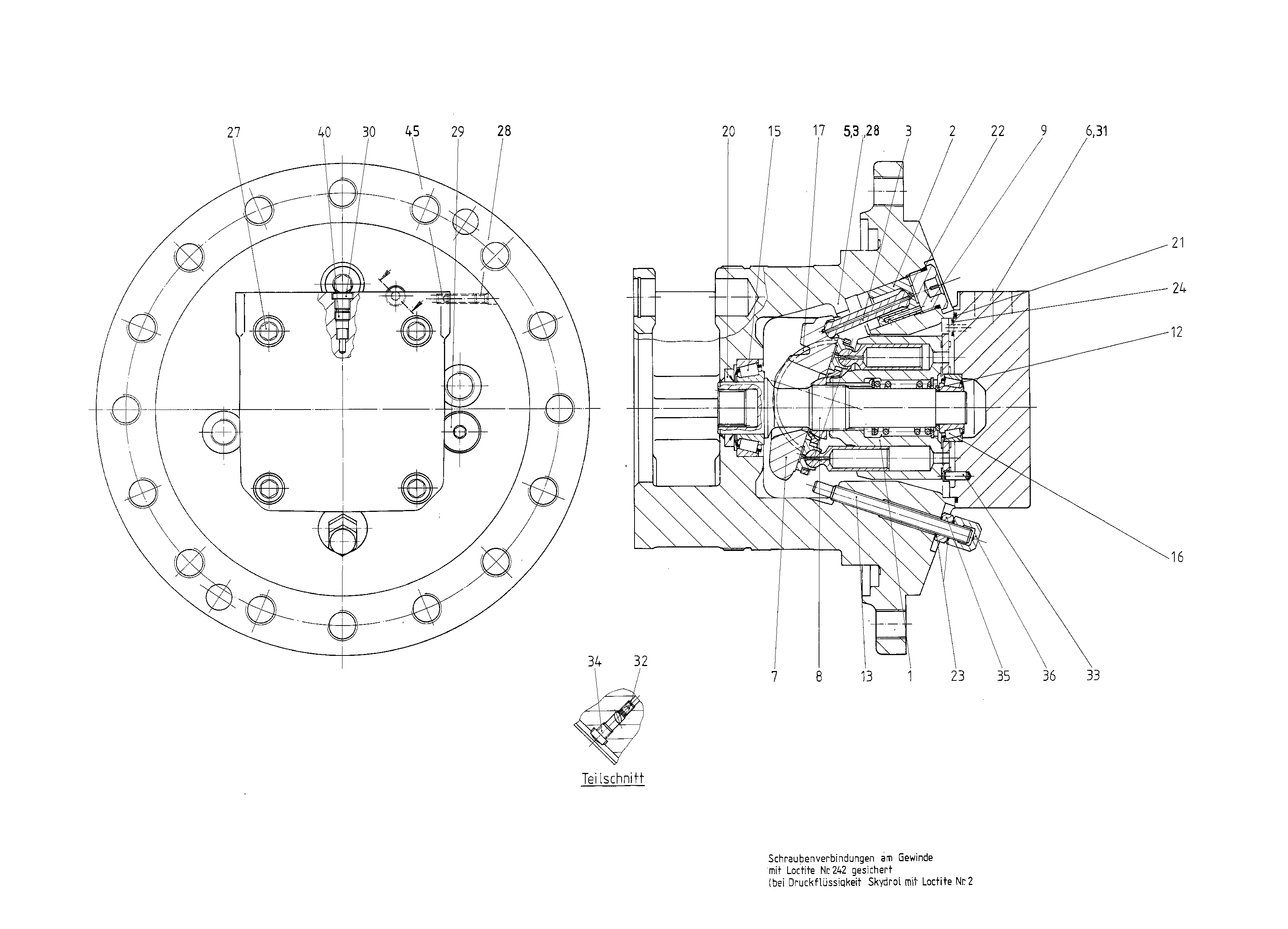

Einheit · BASE UNIT
G A10V T 45 OV /50W1-VNN60N000 -SO687R910940477
Grundeinheit Bosch Rexroth Baureihe A10VT, Typschlüssel GA10VT45OV/50W1-VNN60N000-SO687, Materialnummer R910940477.
- Nummer
- R910940477
- Typschlüssel
- G A10V T 45 OV /50W1-VNN60N000 -SO687
- Gruppe
- A10VT 45
- Ausgabe
- 06/2020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910928600 | ADJUSTING PISTON | 1 | ||
| R910979510 | PISTON ROD | 1 | ||
| R910984956 | MOTOR HOUSING | 1 | ||
| R910993067 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R902417406 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910943993 | STOP SCREW | 1 | ||
| R910931253 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910199044 | O-RINGD | 1 | ||
| R910110256 | SOCKET HEAD CAP SCREW | 4 | ||
| R910939292 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R913011608 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910436941 | NOZZLE | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 | ||
| R910100951 | SETSCREW | 1 |
