Einheit · CONTROL
V A4VSG 500 EM/20 VR910947655
Regler Bosch Rexroth Baureihe A4VSO, Typschlüssel VA4VSG500EM/20V, Materialnummer R910947655. Nenngröße: NG 500. Axialkolbeneinheit: Schrägscheibenbauart (A4VSG).
- Nummer
- R910947655
- Typschlüssel
- V A4VSG 500 EM/20 V
- Gruppe
- A4VSG 500
- Ausgabe
- 06/2020

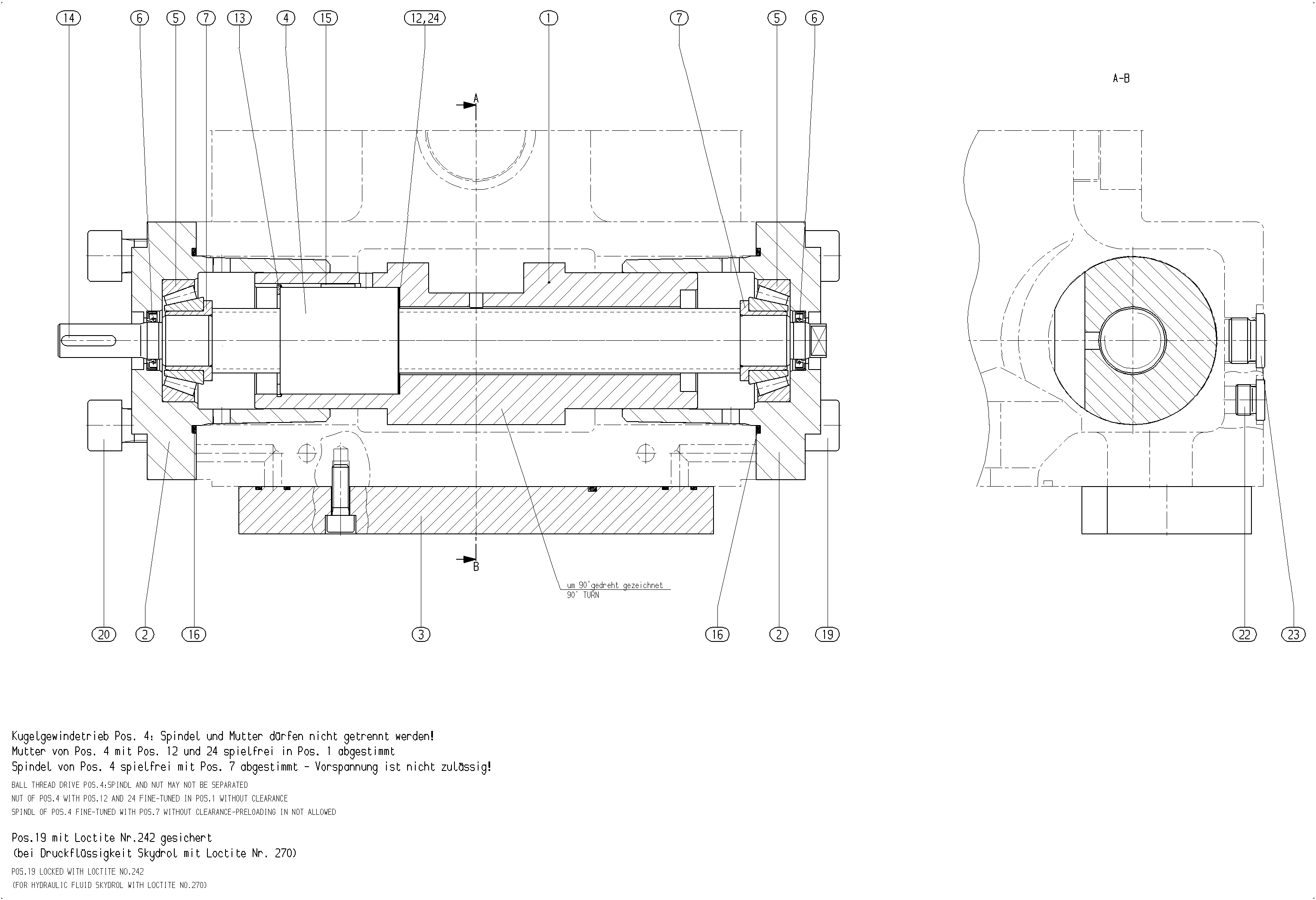

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902559932 | ADJUSTING PISTON | 1 | ||
| R910942539 | PISTON HOUSING | 2 | ||
| R902405391 | GASKET Stückliste der Baugruppe →L | 1 | ||
| R910946042 | BALL SCREW ASSEMBLY | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 2 | ||
| R910900853 | SHAFT SEALING RING | 2 | ||
| R910942904 | BEARING SLEEVE | 2 | ||
| R909083428 | SHIM RING | 3 | ||
| R909830312 | RETAINING RING | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| R910125482 | PARALLEL KEY | 1 | ||
| R910919988 | O-RING | 2 | ||
| R910120782 | SOCKET HEAD CAP SCREW | 4 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUG | 2 | ||
| R909156984 | SCREW PLUG | 1 | ||
| R910587052 | SHIM RING | 1 |
Parameter aus dem Typschlüssel
| Position | Bedeutung | Code |
|---|---|---|
| Axialkolbeneinheit | Schrägscheibenbauart | A4VSG |
| Nenngröße (NG) | 500 | 500 |
| 20 | 20 |
