Einheit · ROTARY GROUP
TW A2P 500 X5PO/HR910948186
Triebwerk Bosch Rexroth Baureihe A2P, Typschlüssel TWA2P500X5PO/H, Materialnummer R910948186.
- Nummer
- R910948186
- Typschlüssel
- TW A2P 500 X5PO/H
- Gruppe
- ROTARY GROUP
- Ausgabe
- 05/2020

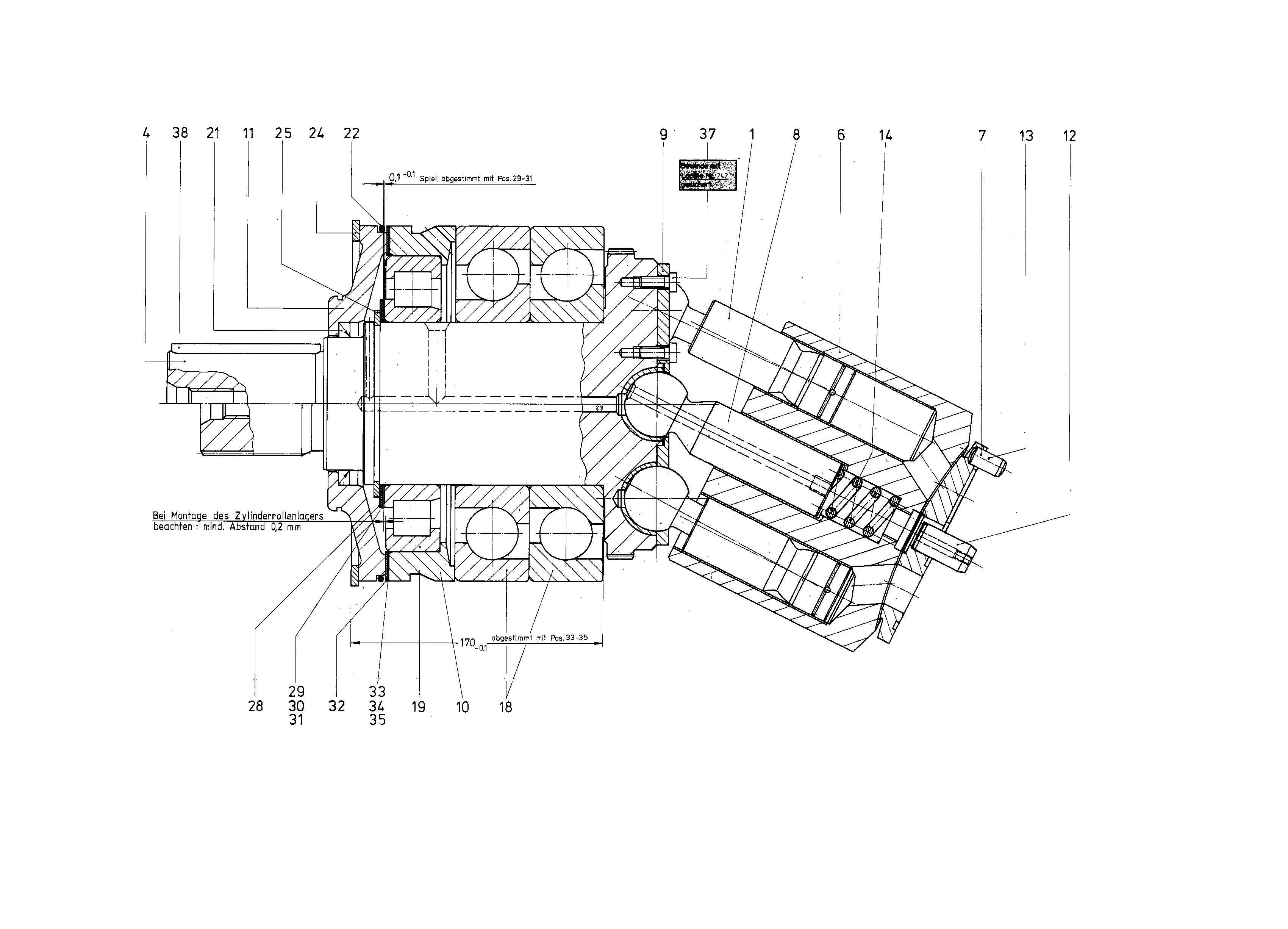

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R910444375 | PISTON | 7 | |
| R902490749 | DRIVE FLANGE | 1 | ||
| 6 | R910602086 | CYLINDER | 1 | |
| R910602124 | DISTRIBUTOR PLATE | 1 | ||
| 8 | R910795119 | THRUST JOURNAL | 1 | |
| 9 | R902556372 | RETAINING PLATE | 1 | |
| 10 | R910646636 | BEARING RING | 1 | |
| 11 | R910667412 | SEALING FLANGE | 1 | |
| R902555514 | CENTERING BOLT | 1 | ||
| R910915947 | STRAIGHT PIN | 1 | ||
| R910678767 | COMPRESSION SPRING | 1 | ||
| R910602213 | ANG. CONTACT BALL BEARING | 2 | ||
| 19 | R910784435 | CYL. ROLLER BEARING | 1 | |
| 21 | R910667447 | SHAFT SEALING RINGD | 2 | |
| 22 | R910103195 | O-RINGD | 1 | |
| 24 | R910127698 | RETAINING RING | 1 | |
| 25 | R910105872 | RETAINING RING | 1 | |
| 26 | R910189057 | RETAINING RING | 1 | |
| 28 | R910432989 | SHIM RING | 1 | |
| 29 | R910602183 | SHIM RING | 1 | |
| 30 | R910602205 | SHIM RING | 2 | |
| 31 | R910486795 | SHIM RING | 1 | |
| 32 | R910625604 | SHIM RING | 1 | |
| 33 | R910625612 | SHIM RING | 1 | |
| 34 | R910625647 | SHIM RING | 2 | |
| R902602715 | PAN-HEAD SCREW | 14 | ||
| 38 | R910444707 | PARALLEL KEY | 1 |
